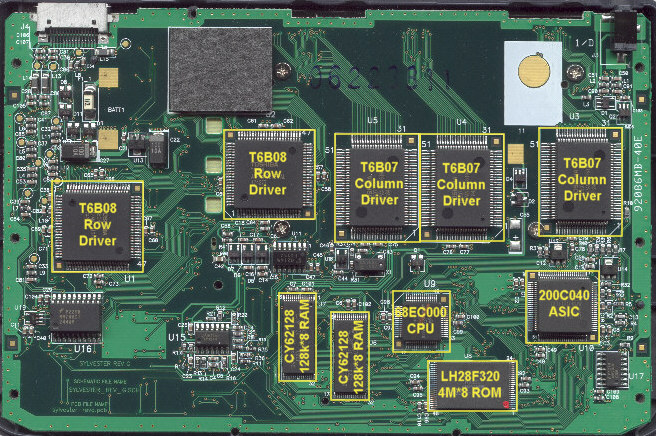

| The printed circuit board
(PCB) of the Voyage 200 is centered around a powerful Motorola
M68EC000 CPU with the associated 200C040 ASIC, a 4M*8 Flash-ROM memory, two 128k*8 RAM memories and a total of 5 display drivers for the graphics screen.
Courtesy of Brian Gregory: http://www.bdg2.dsl.pipex.com/ |

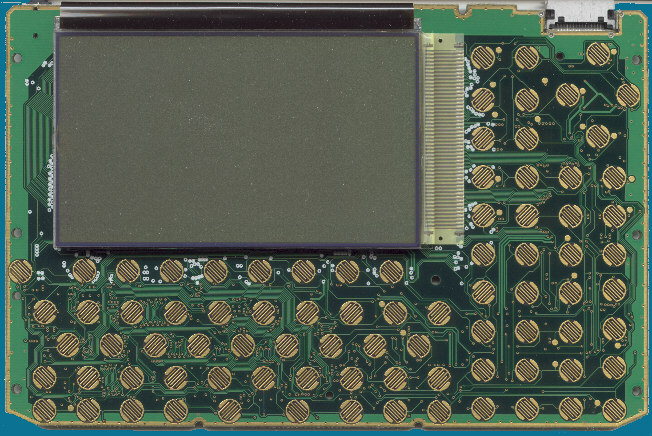

| The backside of the PCB
with the huge graphics LCD and the keyboard contacts.
Courtesy of Brian Gregory: http://www.bdg2.dsl.pipex.com/ |
