Texas Instruments TI-Nspire CX II EZ-Spot

Date of introduction:  March 6, 2019 Display technology:  LCD dot matrix
 16-bit color, backlit
New price:   Display size:  240 * 320 pixels
Size:  7.5" x 3.4" x 0.60"
 190 x 87 x 15 mm3

Weight:  7.3 ounces, 206 grams Serial No:
Batteries:  3.7L1200SPA Li-Ion Date of manufacture:  mth 05 year 2019 (AI)
AC-Adapter:   Origin of manufacture:  Malaysia (M)
Precision:  14 Integrated circuits:  CPU: ET-NS2018-000 (S6M98)
 SDRAM Micron MT46H32M
 Flash-ROM: Micron MT29F1G01
Memories:
Program steps:  64M Bytes, 90M Bytes Flash ROM Courtesy of:  Joerg Woerner

Texas Instruments introduced at the 2011 T3 International Conference held on February 25-27 in San Antonio, TX with the TI-Nspire CX and TI-Nspire CX CAS their first graphing calculators with full color, backlit displays. Eight years later, on March 6, 2019, Texas Instruments released a very promising press release:

It's a big day for Texas Instruments. Today, we introduced the all-new TI-Nspire CX II family of graphing calculators, bringing a 2 ½ times faster processor, an updated, new look and added math and coding features that will help bring STEM (science, technology, engineering and math) subjects to life for students. Building on the popular TI-Nspire CX line of graphing calculators, the new TI-Nspire CX II and TI-Nspire CX II CAS give students more opportunities to visualize important, abstract concepts, not just in math class, but in science and computer programming courses.

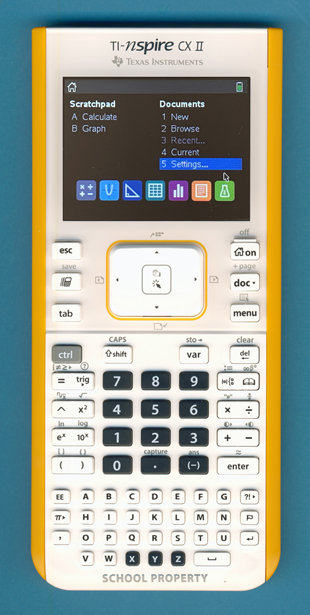

To reduce theft of this new school-owned TI-Nspire CX II calculator, Texas Instruments introduced the TI-Nspire CX II EZ-Spot Teacher Packs with a bright, easy-to-spot, "school bus yellow" design. Don't miss the original version of the TI-Nspire CX EZ-Spot introduced in 2011 and the revised design of the TI-Nspire CX EZ-Spot introduced in 2014.

Dismantling this TI-Nspire CX II EZ-Spot with the Date code M-0519AI manufactured in May 2019 in Malaysia by Inventec reveals a very compact design based on just one (not counting the small Trackpad) printed circuit board (PCB) with just a few main Integrated Circuits. The design reminds us about TI-Nspire design NSC CR IV (Cost Reduction Phase IV) but dropped the Multichip Package of the Memory in favor of two discrete chips for NAND Flash ROM and SDRAM.

Processor: The ARM9 CPU is integrated into an ASIC with the markings ET-NS2018-000 (S6M98), we couldn't identify its manufacturer as of today. The ARM9 core is clocked with 396 MHz compared to the 156 MHz of the previous TI-Nspire CX or 132 MHz of the original TI-Nspire CX. Learn more about the Hardware Architecture of TI’s Graphing Calculators.

The -000 marking of the ASIC is unique to the TI-Nspire CX II, the other family members vary in the code:

• 000: TI-Nspire CX II, TI-Nspire CX II EZ-Spot
• 001: TI-Nspire CX II CAS, TI-Nspire CX II-T CAS, TI-Nspire CX II-C CAS
• 100: TI-Nspire CX II-T


Memory: The TI-Nspire CX II EZ-Spot makes use of three different memory technologies:

• NOR Flash-ROM
• NAND Flash-ROM
• SDRAM

Flash memory is non-volatile and does not need a battery to maintain the information stored in the chip. In the past years two different technologies emerged in parallel with some advantages and disadvantages.

The NOR Flash-ROM was invented by Toshiba in 1984 and found its way immediately as a replacement of the more expensive ROM (NRE mask costs) and EEPROM (device costs) memory. NOR Flash-ROMs use an address and data bus to allow the random access to any memory location. Main disadvantages of NOR Flash-ROMs compared to NAND Flash-ROMs are the higher costs, larger housings and slower write speeds.

The disassembled TI-Nspire CX II EZ-Spot manufactured in May 2019 lacks a NOR Flash-ROM chip, we assume that the ET-NS2018 ASIC integrates - like its predecessors - a  a ROM with a capacity of 512k Bytes used for the first-stage bootloader ("Boot 1").

The NAND Flash-ROM architecture was introduced by Toshiba in 1989 and is based on pages of typically 512 to 2048 Bytes and blocks of typical 32 or 64 pages. While programming is performed on a page basis, erasure can only be performed on a block basis. NAND Flash-ROMs requires bad block management to be performed by device driver software or hardware. Due to the missing address bus the NAND Flash-ROM chip doesn't allow random access to the individual memory positions and therefore it can't be used for program memory of a microprocessor. Typical use of NAND Flash-ROM memory is file based mass-memory storage such as memory cards.

The disassembled TI-Nspire CX II EZ-Spot manufactured in May 2019 uses a Serial NAND Flash-ROM with a part designation Micron 8UF17. Using Micron's part number decoder expands the 8UF17 code to MT29F1G01ABBFDWB-IT and the Part Numbering System explains:

• Product Family 29F: Single-Supply NAND Flash-ROM
• Density 1G: 1G Bits
• Device Width 01: 1 bit (Serial)
• Level A: SLC (Single Level Cell)
• Classification B: Discrete, 1 Chip Select
• Operating Voltage Range B: 1.8V
• Generation Feature Set F: 6th Generation Die
• Interface D: SPI
• Package Code WB: 8-pin U-PDFN
• Operating Temperature Range -IT: -40ºC to +85ºC

SDRAM is the abbreviation of Synchronous Dynamic Random Access Memory and is used as program and data memory for microprocessor systems. Each bit of data in a SDRAM is stored in separate capacitor on the integrated circuit. Since these capacitors leak charge over time, the information eventually fades unless the capacitor charge is refreshed periodically.

Because of this refresh requirement, it is a dynamic memory as opposed to SRAM and other static memory. Its advantage over SRAM is its structural simplicity: only one transistor and a capacitor are required per bit, compared to six transistors in SRAM cells. This allows SDRAM to reach very high density at low cost. Since SDRAM loses its data when the power supply is removed, it is accompanied usually by a NOR Flash-ROM.

During power-up of the system the program content of the NOR Flash-ROM is with the integrated bootloader simply copied into the SDRAM and executed from there. We assume that the TI-Nspire CX II EZ-Spot uses the SDRAM as workspace for user data but stores changes on them into its NAND Flash-ROM.

The disassembled TI-Nspire CX II EZ-Spot manufactured in May 2019 uses a Mobile LPDDR with a part designation Micron 8UF17. Using Micron's part number decoder expands the 8UF17 code to MT46H32M16LFBF-5 IT and the Part Numbering System explains:

• Product Family 46: Mobile LPDDR
• Operating Voltage Range H: 1.8V
• Configuration 32M16: 32M x 1G Bits
• Addressing LF: JEDEC-standard
• Package Code BF: 60-ball (8mm x 9mm) VFBG
• Cycle Time -5: 5ns / 200 MHz
• Operating Temperature Range -IT: -40ºC to +85ºC




ROM-Versions:

• TI-Nspire CX II EZ-Spot

5.0.0.1683 (March 22, 2019)

You can check the ROM version of your TI-Nspire CX II EZ-Spot using the following key sequence and reading the number on your screen:

[HOME] [5] [4]

Information provided by Xavier Andrιani.


Exam acceptance:

Since the TI-Nspire CX II EZ-Spot lacks a QWERTY keyboard it is permitted (as of May 30, 2013) for use on SAT, ACT, PSAT and AP exams.



horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, July 29, 2020. No reprints without written permission.
