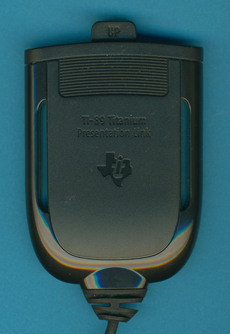

Texas Instruments Presentation Link Adapter
Date of introduction: | 2004 | Display technology: | |
New price: | $49.95 (SRP 2008) | Display size: | |
Size: | 3.6" x 2.5" x
0.65" 91 x 63 x 17 mm3 |
||
Weight: | 1.9 ounces, 53 grams | Serial No: | 1103000425 |
Batteries: | n.a. | Date of manufacture: | mth 08 year 2005 |
AC-Adapter: | Origin of manufacture: | China (I) | |
Precision: | Integrated circuits: | CPU: MC68SEC000 ASIC: TI-REF680TG0204R02 Flash: LH28F320 |
|
Memories: | |||
Program steps: | Courtesy of: | Xavier Andréani |
The Presentation Link Adapter connects either the ViewScreen panel or the TI-Presenter to student calculator featuring the USB port. In 2007 two different Presentation Link Adapters were available:
•
TI-84 Plus Adapter: Connects to the
TI-84
Plus and TI-84 Plus Silver Edition with
Cable 1 • TI-89 Titanium Adapter: Connects to the TI-89 Titanium with Cable 2 |
Dismantling the TI-89
Titanium Presentation Adapter reveals a huge surprise, the rather complex
printed circuit board (PCB) sports the circuitry of the TI-89 Titanium
calculator with its three main components:
Processor:
The processor located on the Printed Circuit Board (PCB) is the low-power
version of the Motorola MC68EC000 labeled MC68SEC000.
ASIC:
This impressive Integrated Circuit with the designation TI-REF680TG0204R02
integrates not only the glue logic of the design and USB interface but even 256k
Bytes RAM.
Memory:
This Presentation Link Adapter manufactured in August 2005 sports a Sharp
Flash ROM LH28F320 with a capacity
of 2Mx16 bits.
If you have additions to the above article please email: joerg@datamath.org.
