Additional Pictures

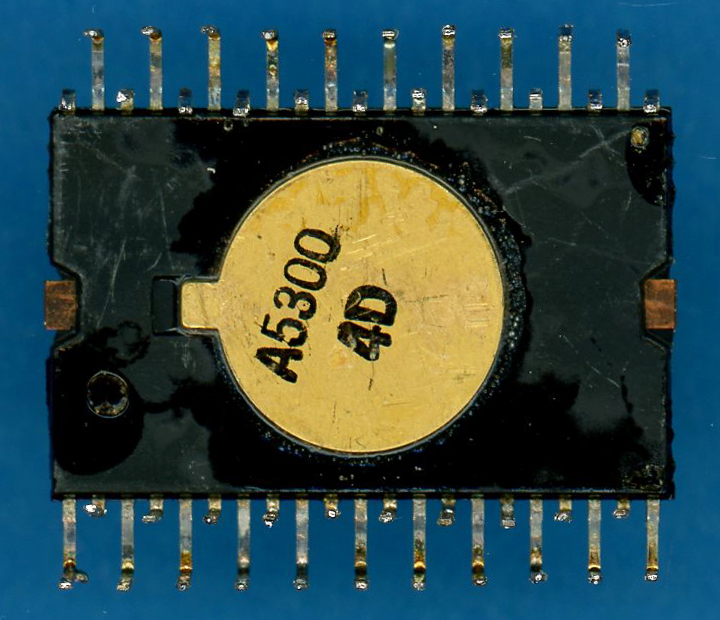

Bottom view of a Rockwell A5300 single-chip calculator circuit with metal chip carrier.
Metal disc under the lead frame of a Rockwell A5300. Die X-Ray Image courtesy of Sean Riddle.
Metal disc of a Rockwell A5300 with the silicon die attached.
