The sales
box of a Montgomery Ward P300 sold in December 1974 in the United
States. |
|

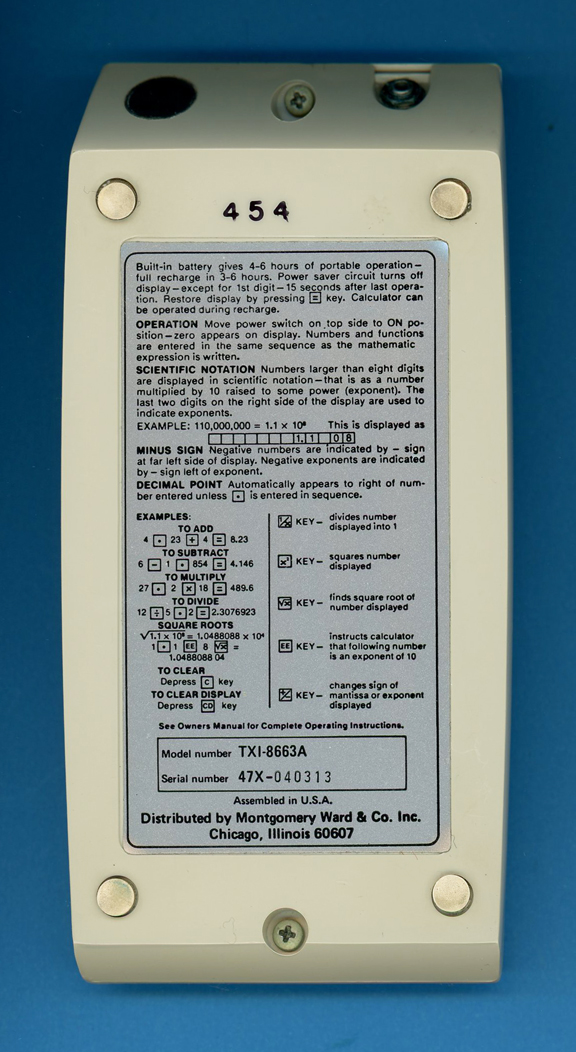

This Montgomery Ward P300 aka TXI-8663A was manufactured
in November 1974 by
|
|

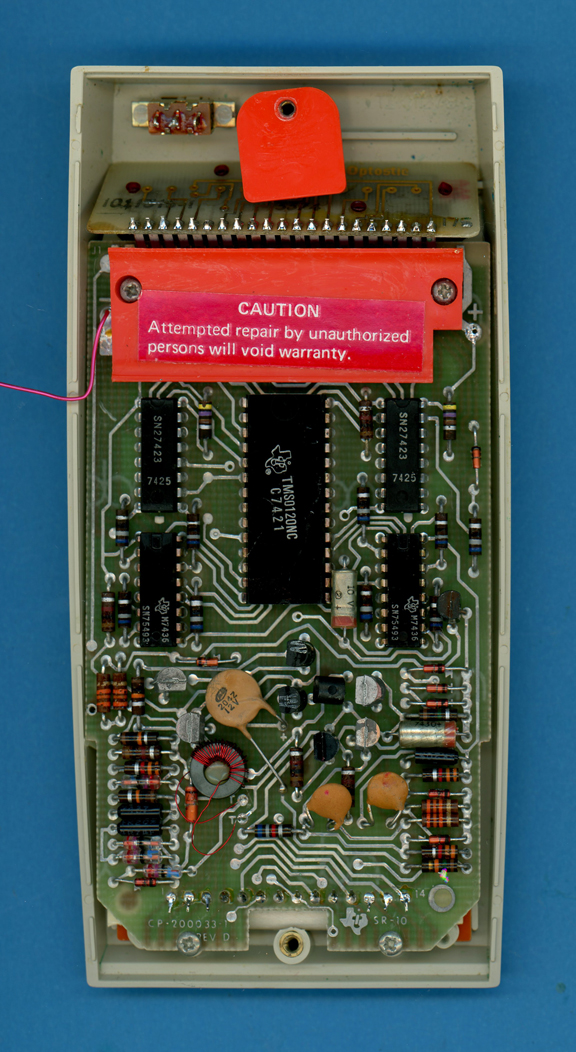

The double-sided printed
circuit board (PCB) of the Montgomery Ward P300 is centered around a TMS0120 single-chip calculator circuit.
|
|

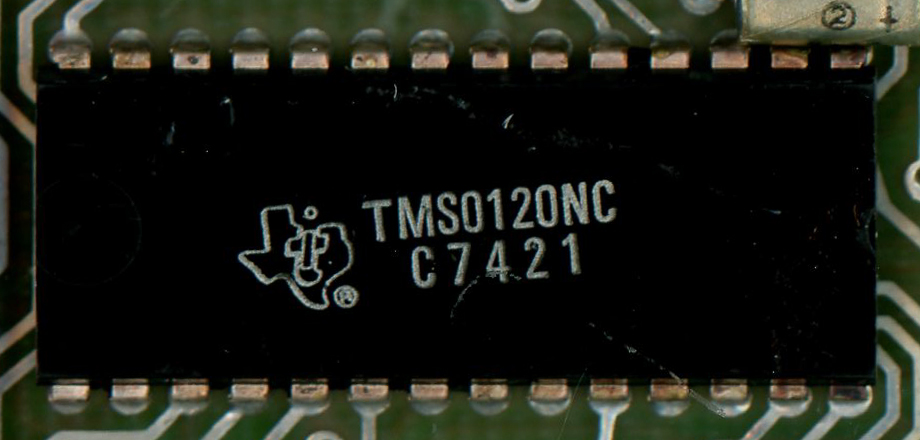

Close-up
view of
the TMS0120 (TMS0720) single-chip calculator circuit. |
|

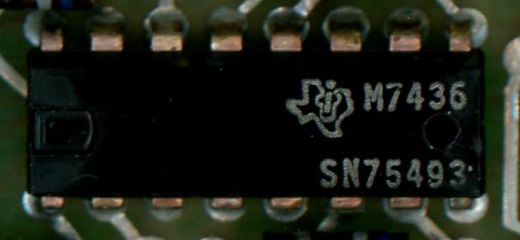

Close-up
view of the SN75493 Segment Driver. |

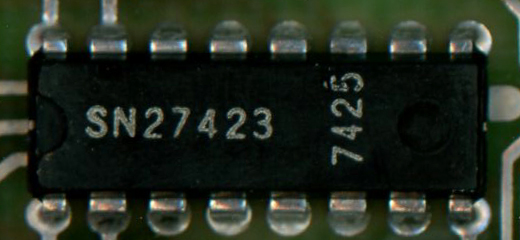

Close-up
view of the SN27423 Digit Driver. |
Close-up
view of
the Bowmar Optostic 175 Twelve-Digit Calculator Seven-Segment display. |
