Additional Pictures
The
sales box of the Privileg 804 D sold
around Summer 1975 in Germany.
 |
| This
Privileg 804 D calculator
was
manufactured in May 1975 in Far East.
|
The Privileg 861 MD calculator
is powered by two AA-size batteries. |

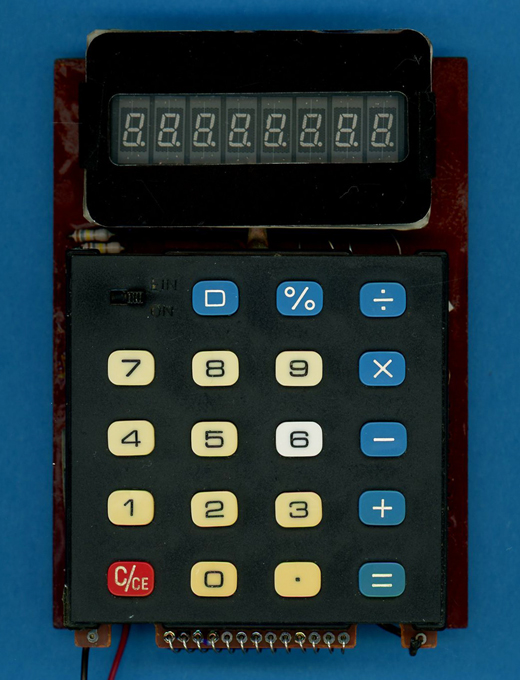

The calculator assembly
of the Privileg 804 D removed from its housing. |

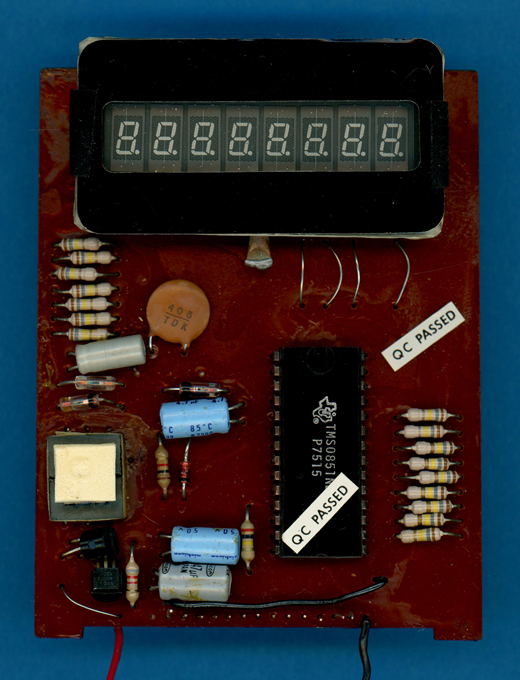

| The printed circuit board
(PCB) of the Privileg 804 D calculator is centered around a TMS0851 single-chip calculator circuit.  |

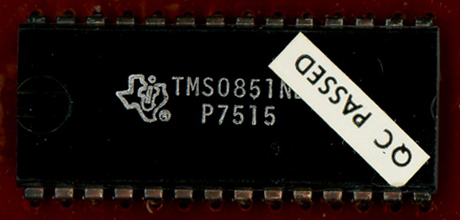

| Close-up view
of the TMS0851 single-chip calculator circuit.
|

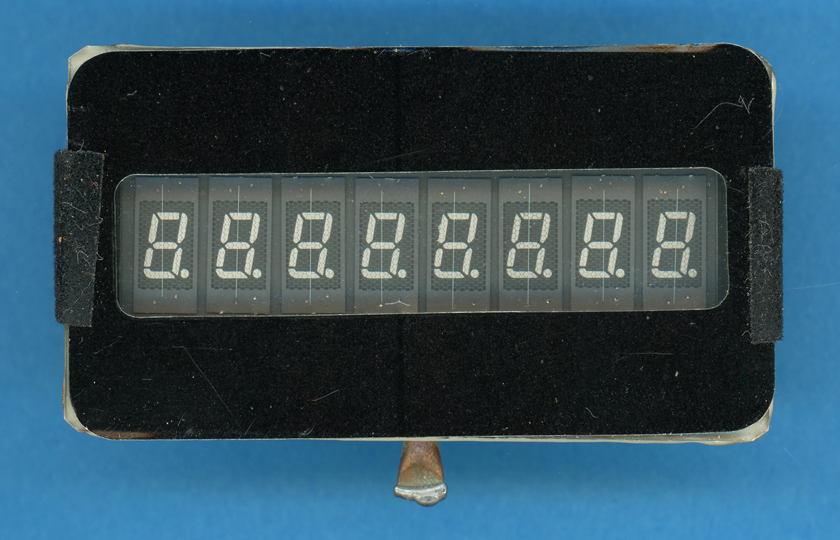

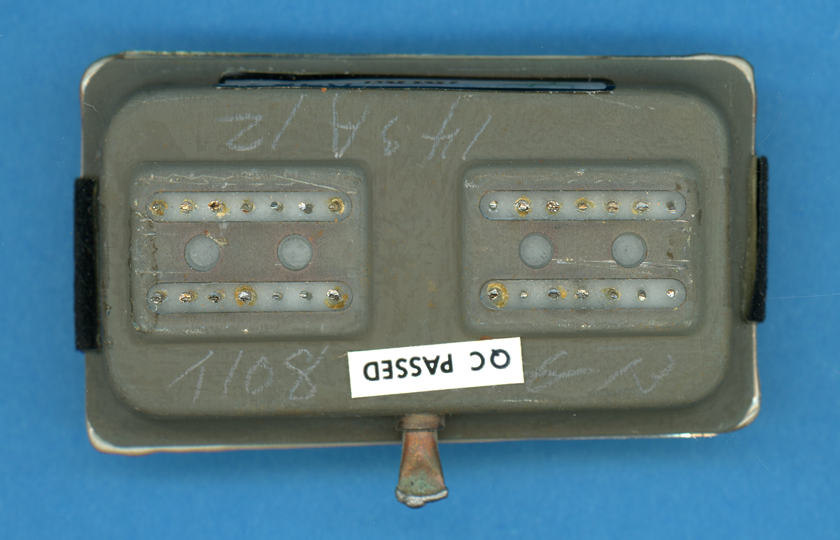

Close-up view of the
ISE Electronics DP89A Vacuum Fluorescent Display (VFD).  |

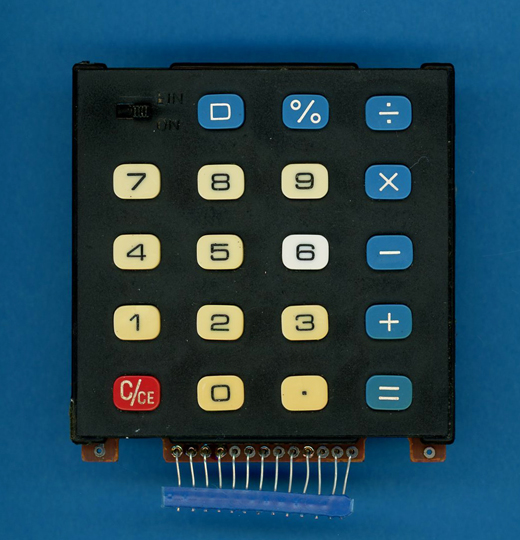

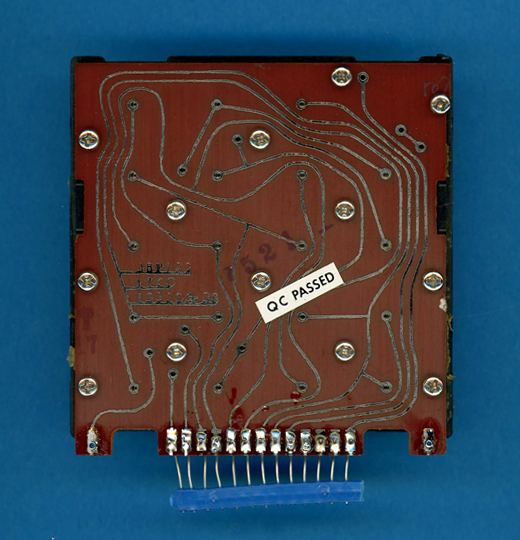

Front and backside of the
keyboard assembly.  |
