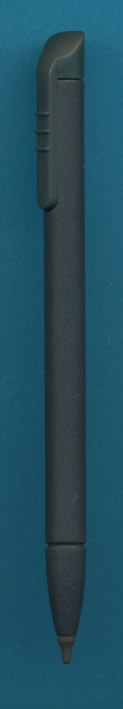

This Avigo 10 PDA was manufactured in November 1997 by Inventec Corporation in Taiwan (Date code I-1197).	The stylus included with the Avigo 10:

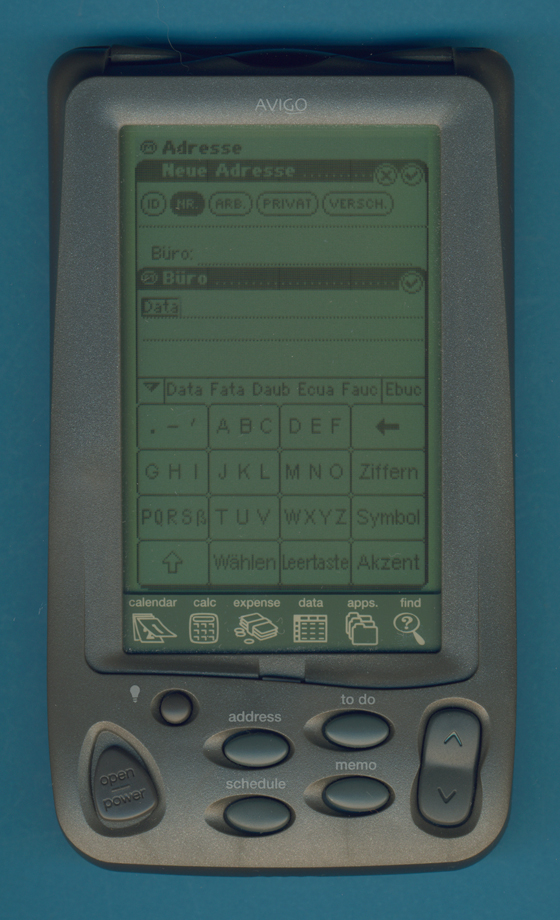

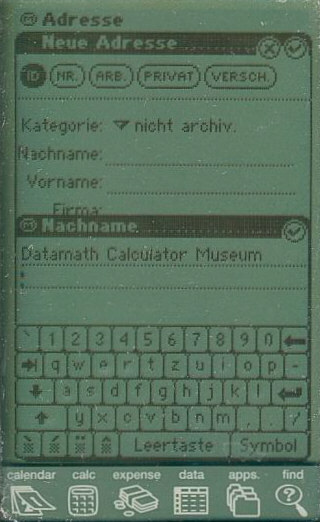

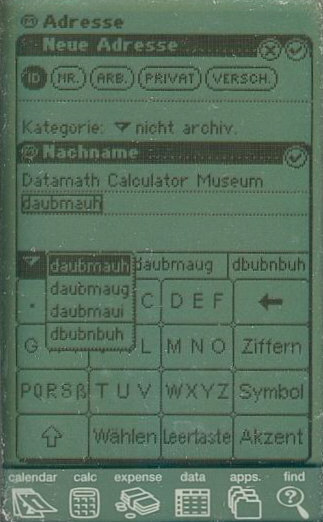

The Address-Application with the standard ASCII keyboard.	The Address-Application with the T9 keyboard.

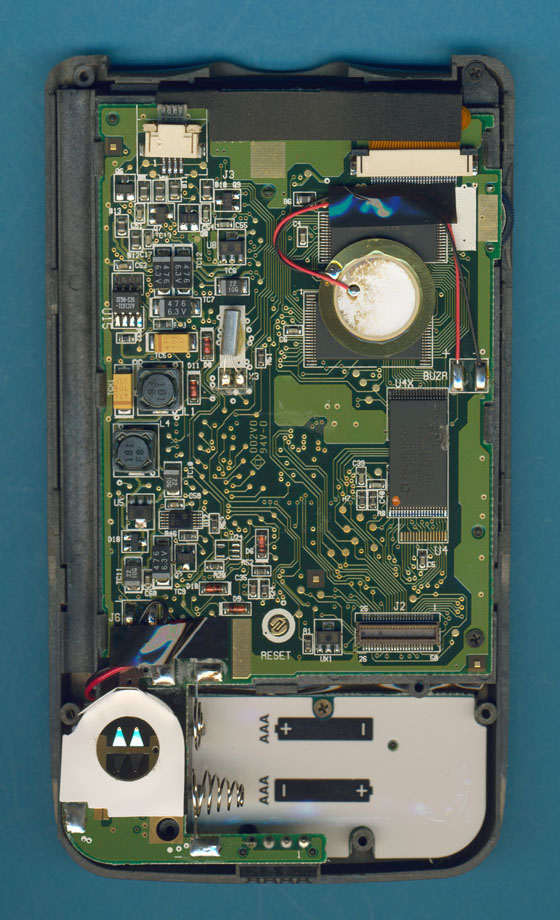

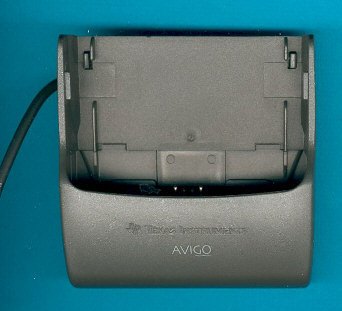

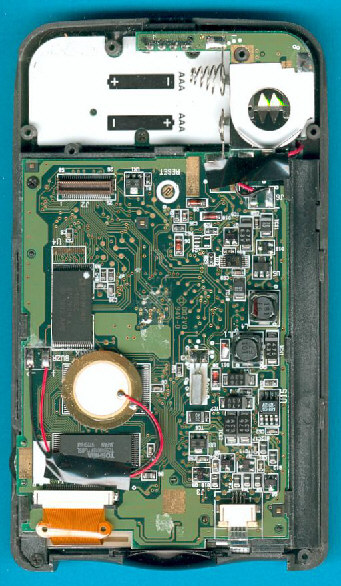

The cradle connects the Avigo 10 with a Personal Computer running Lotus Organizer 97.	The printed circuit board (PCB) of the Avigo PDA with different memory chips and connectors on the top side.

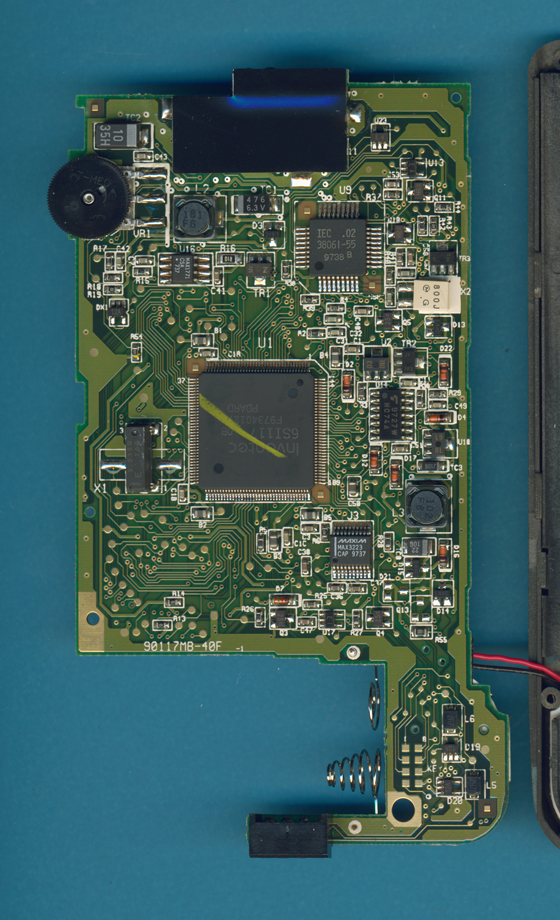

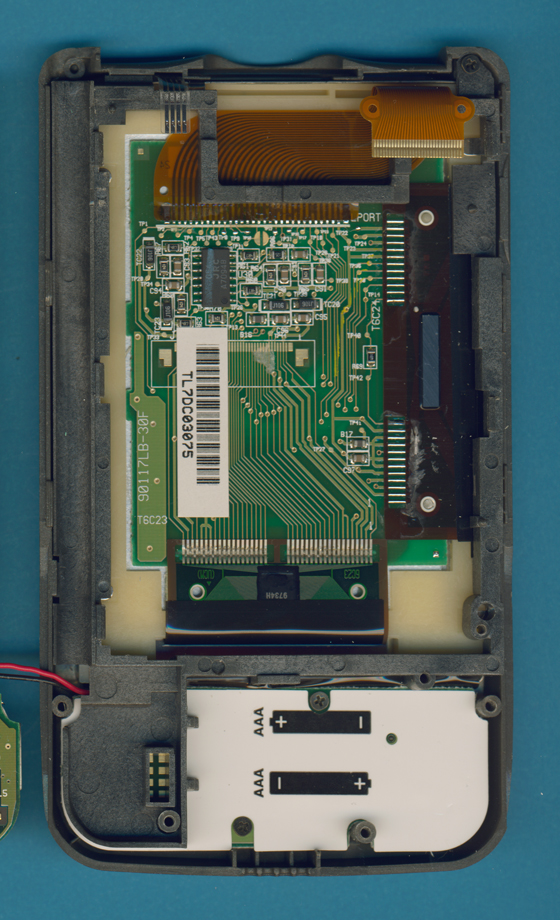

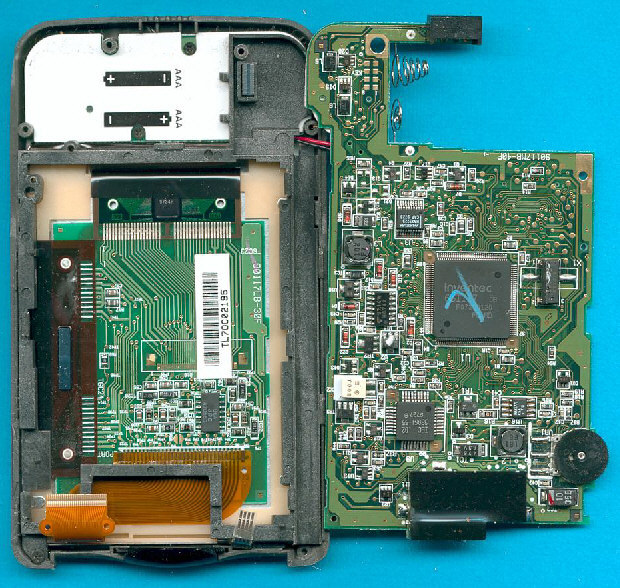

The bottom side of the Main-PCB with the Inventec 6S111 Application Specific Integrated Circuit (ASIC).	The second PCB of the Avigo 10 with two bare display drivers attached on small, flexible PCB's.
The Inventec 6S111 ASIC with a Z80 compatible CPU core.	An unknown support IC of the Avigo 10, probably the Boot-ROM.

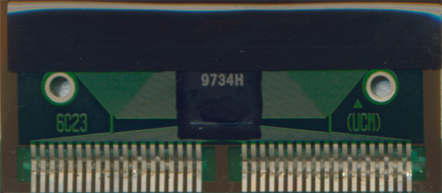

The Toshiba 6C23 column driver.
The Toshiba 6C24 row driver.
