Additional Pictures



The sales box of the PS-5800 Translator sold around 1993 in Italy.

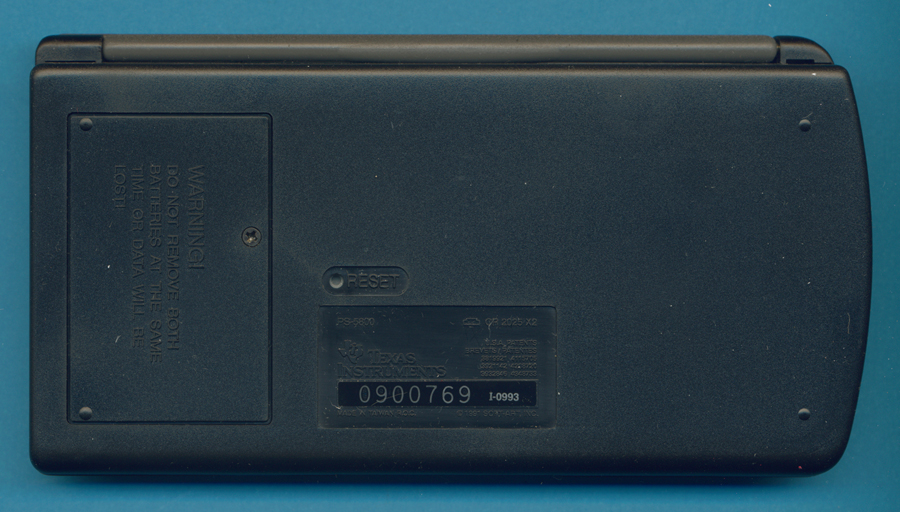

This PS-5800 Translator was manufactured in September 1993 by
Inventec Corporation in Taiwan (Date code I-0993 » mth 09 yr 1993).

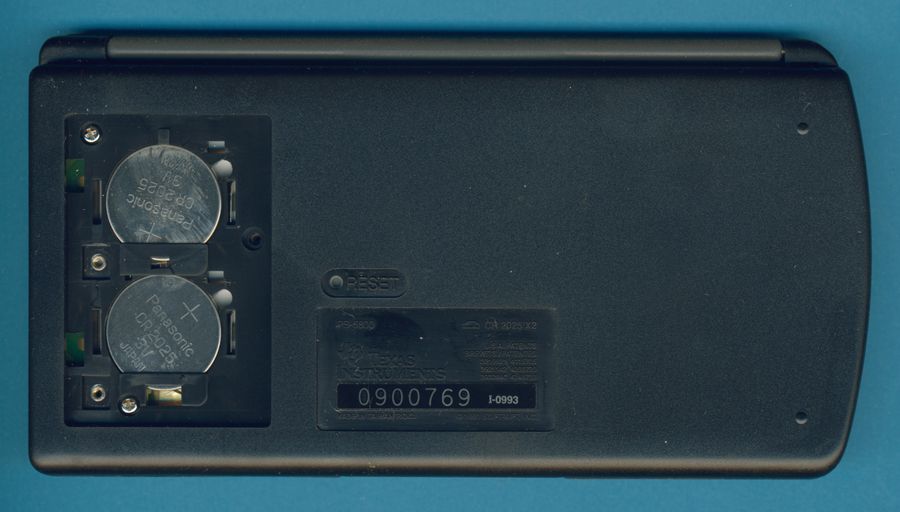

The PS-5800 Translator uses two CR2025 Lithium Batteries.

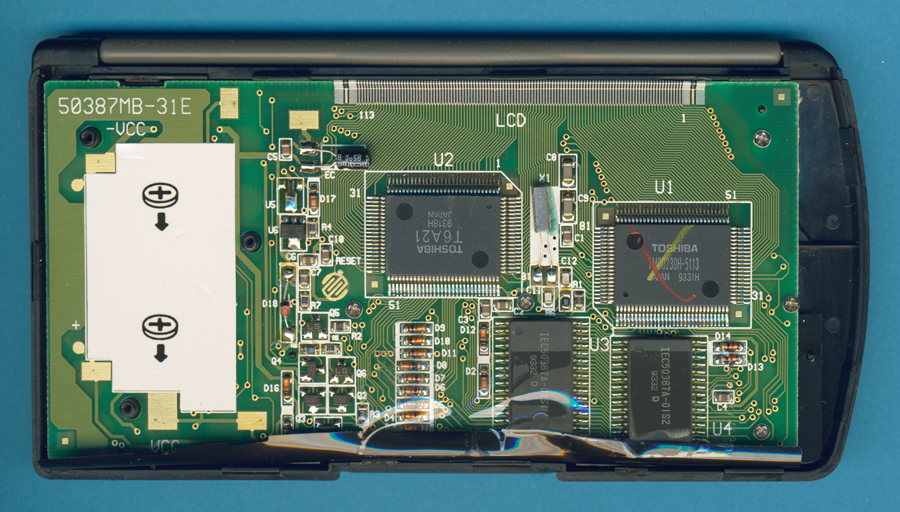

The printed circuit board (PCB) of the PS-5800 is centered
around the Toshiba TMP0230H Application Specific CPU.

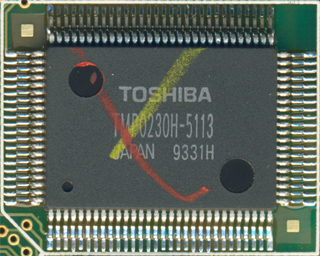

The Toshiba TMP0230H Application Specific CPU.

The PS-5800 makes use of two Memory
chips with 256k Bytes capacity, each.

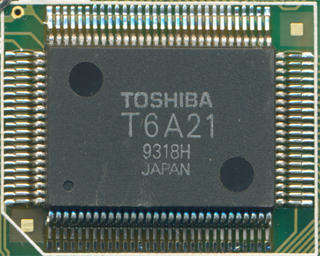

The Toshiba T6A21 driver for the LC-display .


horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, June 25, 2018. No reprints without written permission.
