Brother Model 827R (Version 2)
was
manufactured in Hong Kong in September 1974.
|

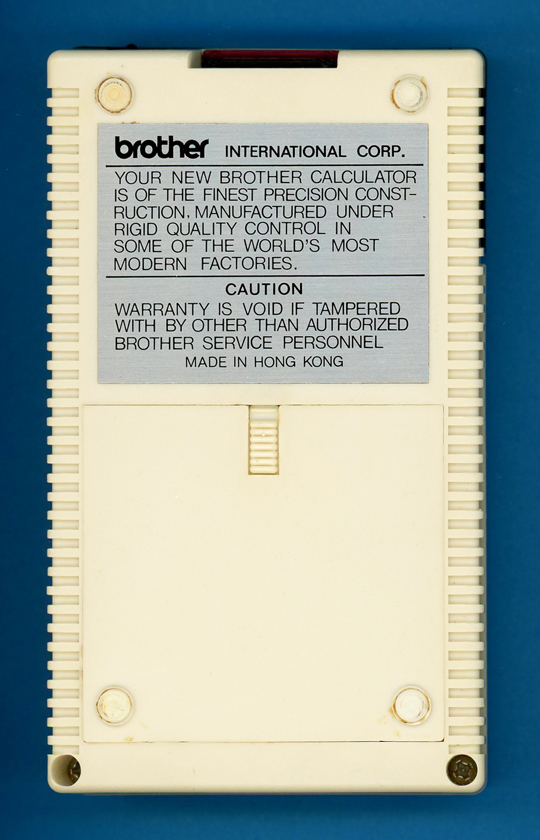

| The Brother 827R (Version 2) calculator is

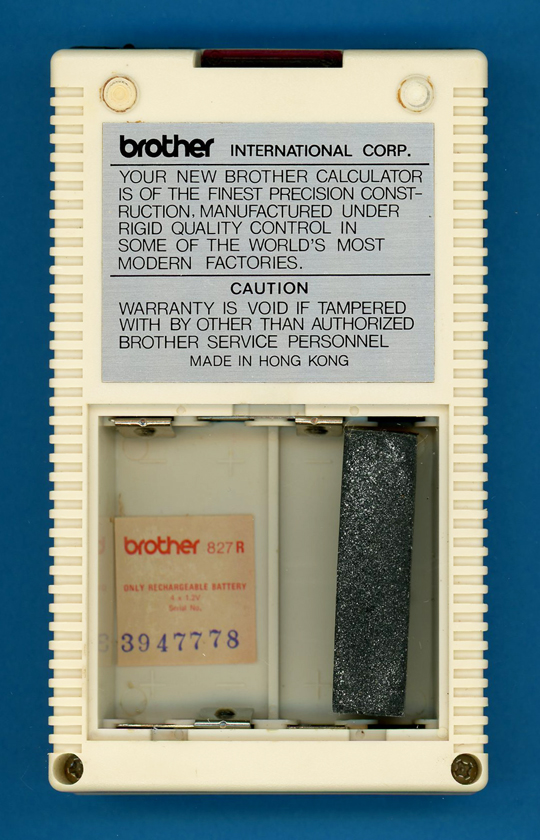

powered by 3 AA-size NiCd
batteries.
|

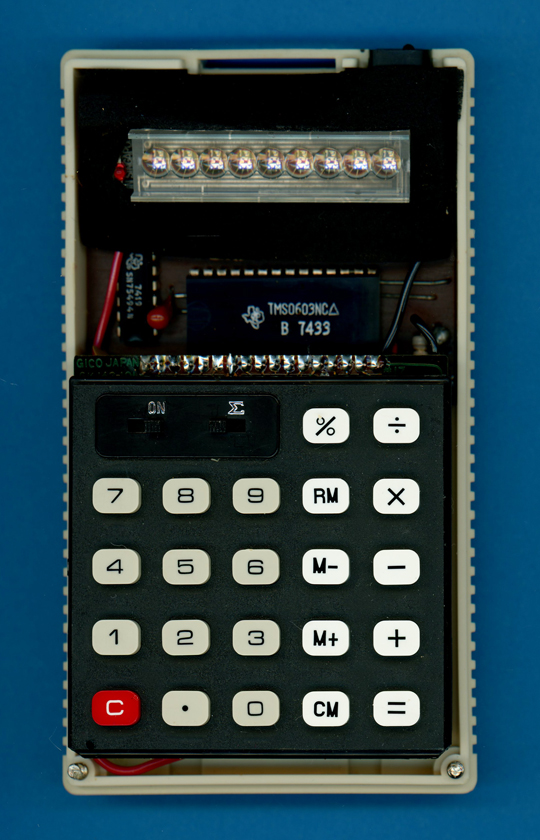

The inside view
of the Brother 827R calculator with its upper housing part removed. |

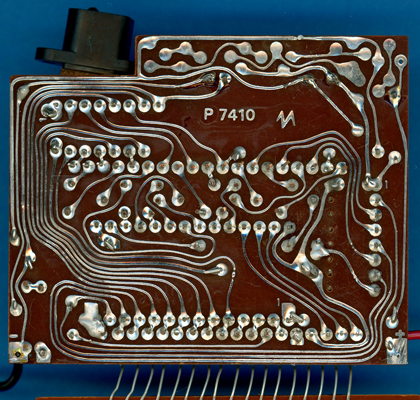

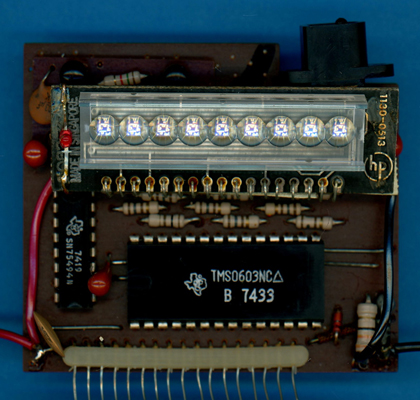

| The printed circuit board (PCB) of the
Brother 827R calculator is centered around a TMS0603 single-chip calculator circuit.   |

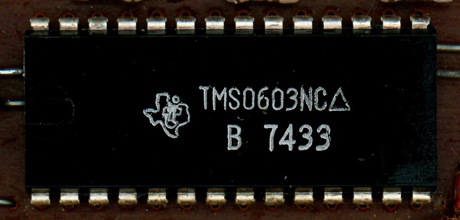

Close-up view of the
TMS0603 single-chip calculator circuit. |
Close-up view of one of the two
SN75494 display drivers. |

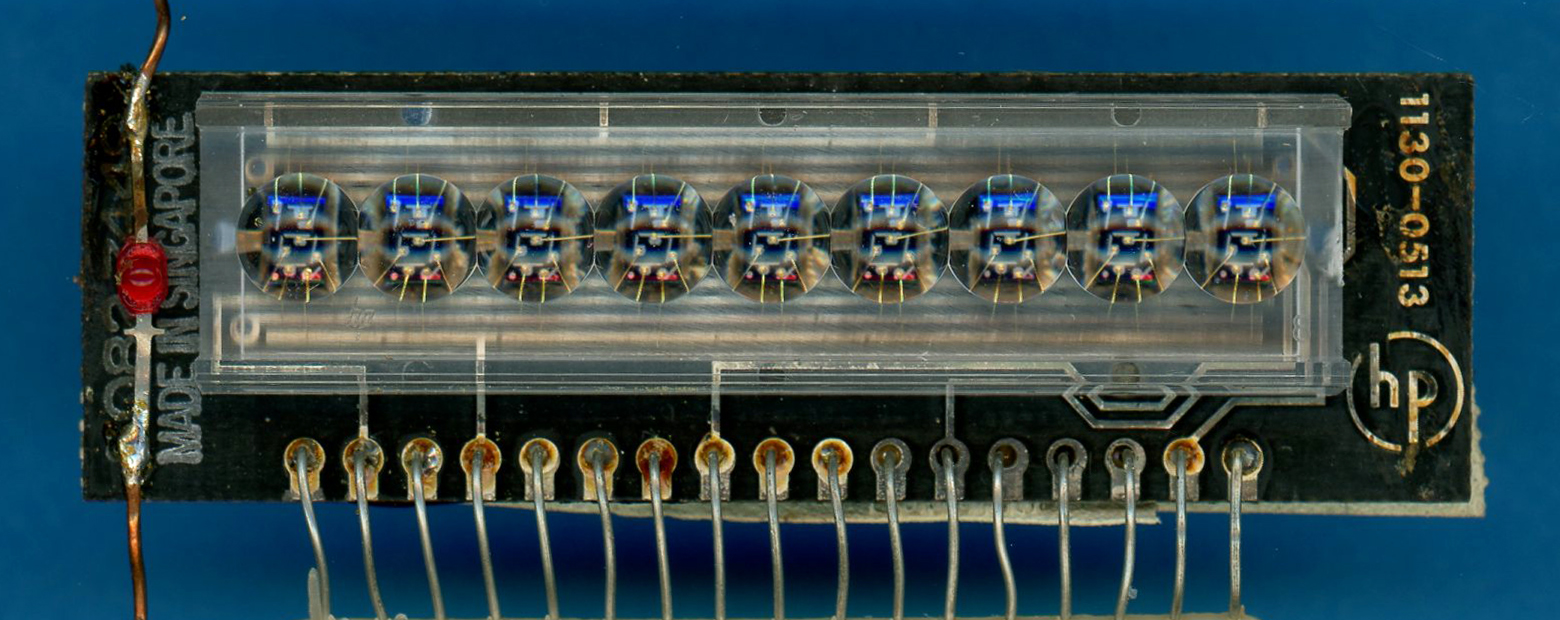

Close-up view of the Hewlett-Packard
1130-0513 LED display module. |

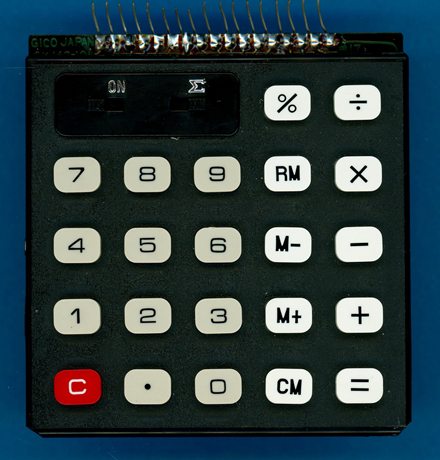

Close-up view
of the keyboard assembly.  |

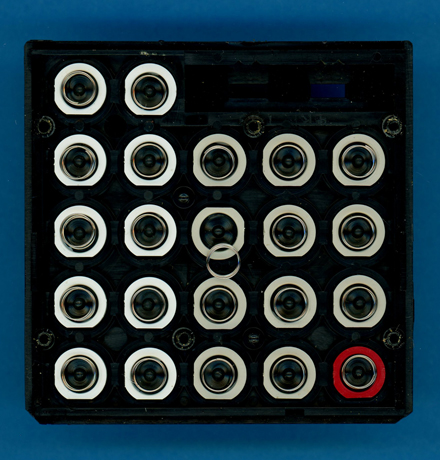

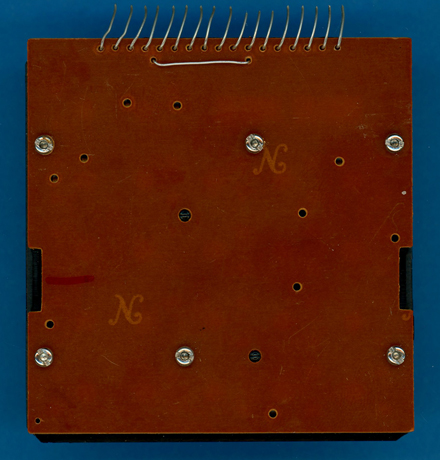

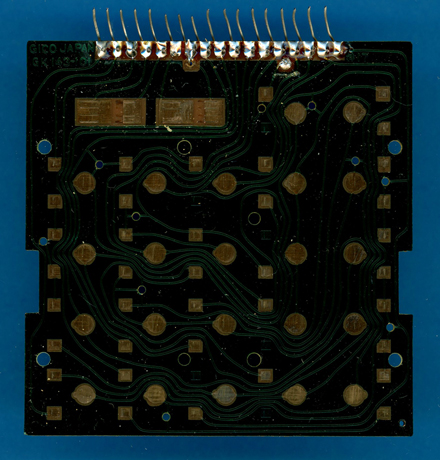

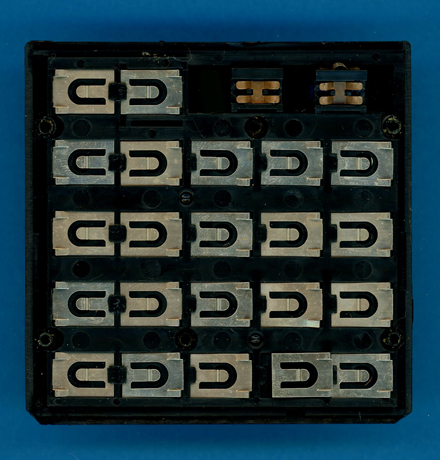

Close-up view
of the dismantled keyboard assembly.   |
