Additional Pictures

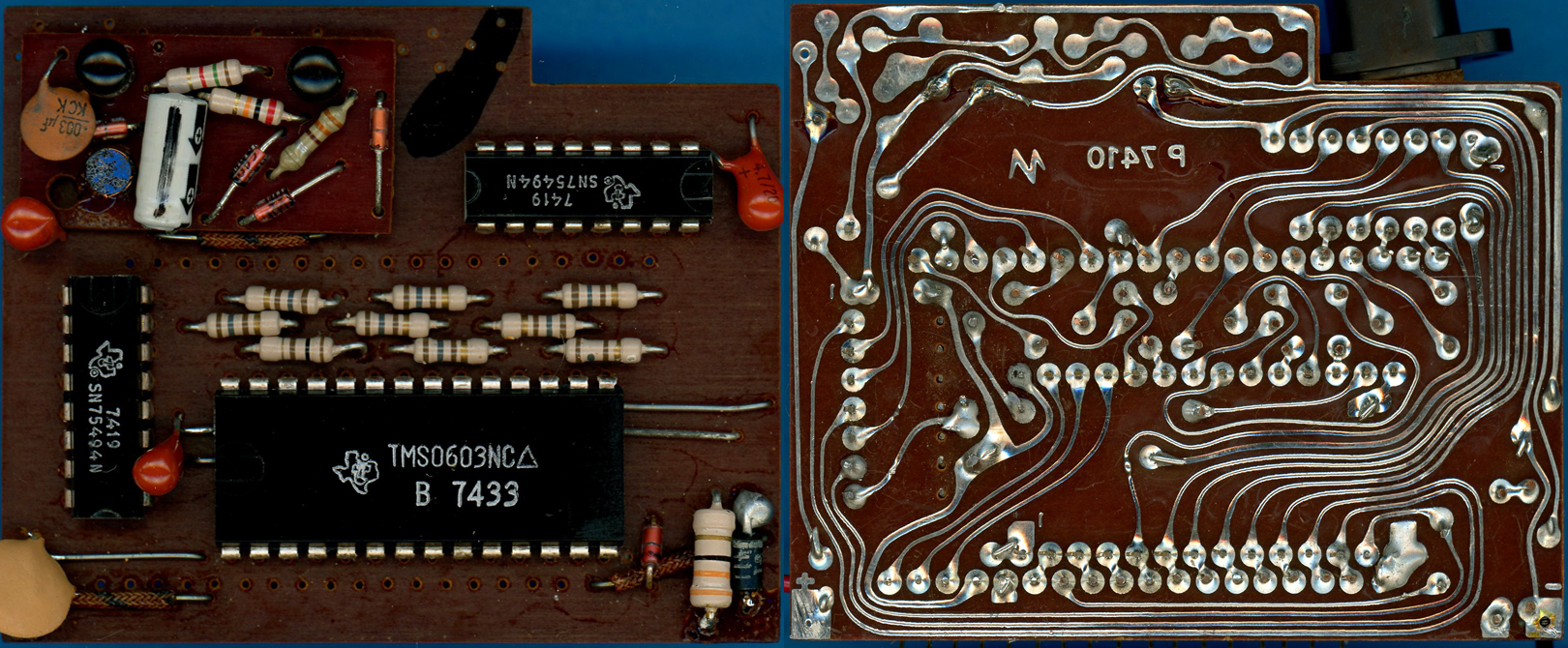

The printed circuit board (PCB) of a Brother Model 827R (Version 2) calculator manufactured in September 1974 with its (mirrored) backside.

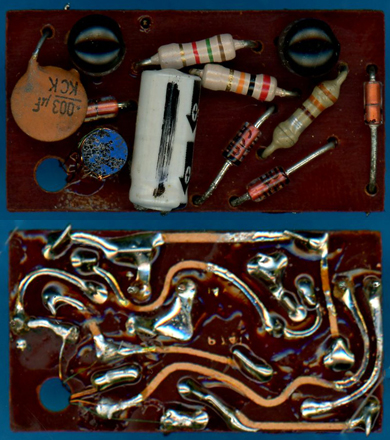

The PCB of the DC/DC converter with its (mirrored) backside.
