Additional Pictures
| Probing the
TMS0603 single-chip calculator circuit of a Brother Model 827R (Version 2) calculator.
|

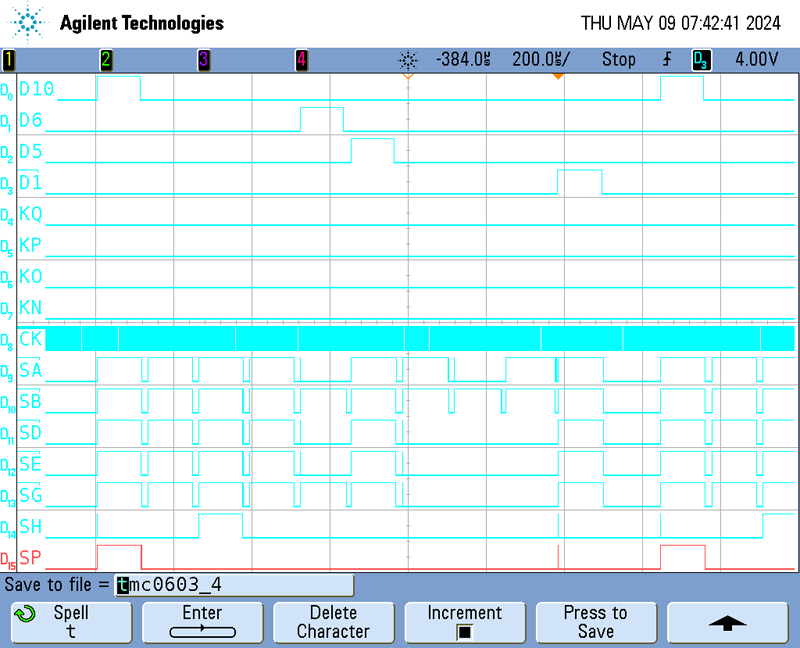

| The Timing
Diagram of the TMS0603 single-chip calculator showing activity on the
H-Segment output (top) and Segment Blanking (bottom).   |
