| This
Brother PROCAL 408AY (Version 1)
was
manufactured in Japan in December 1973.
|

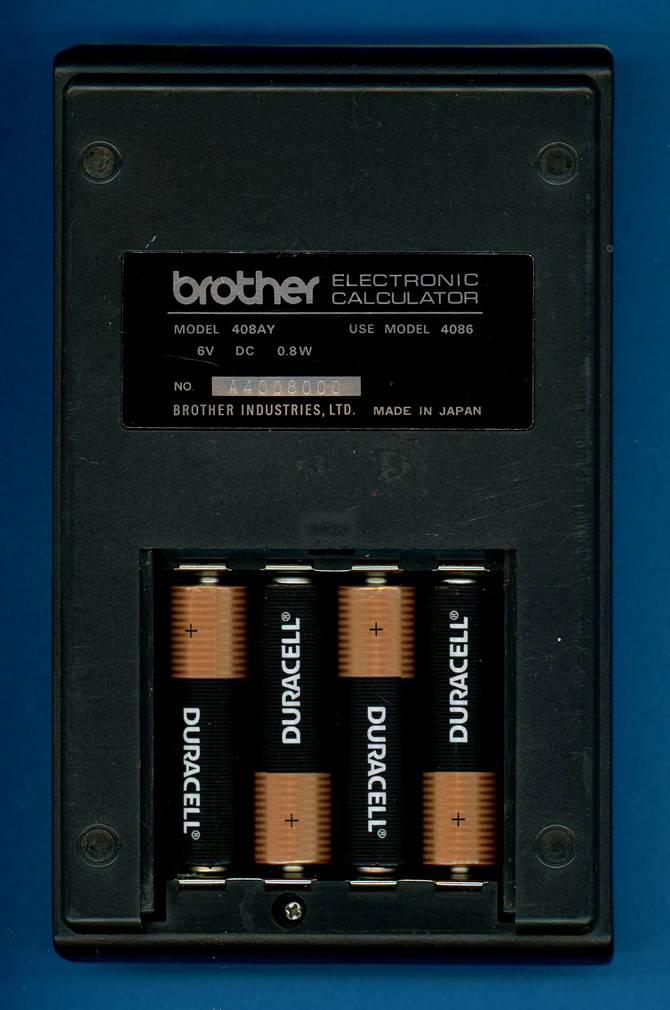

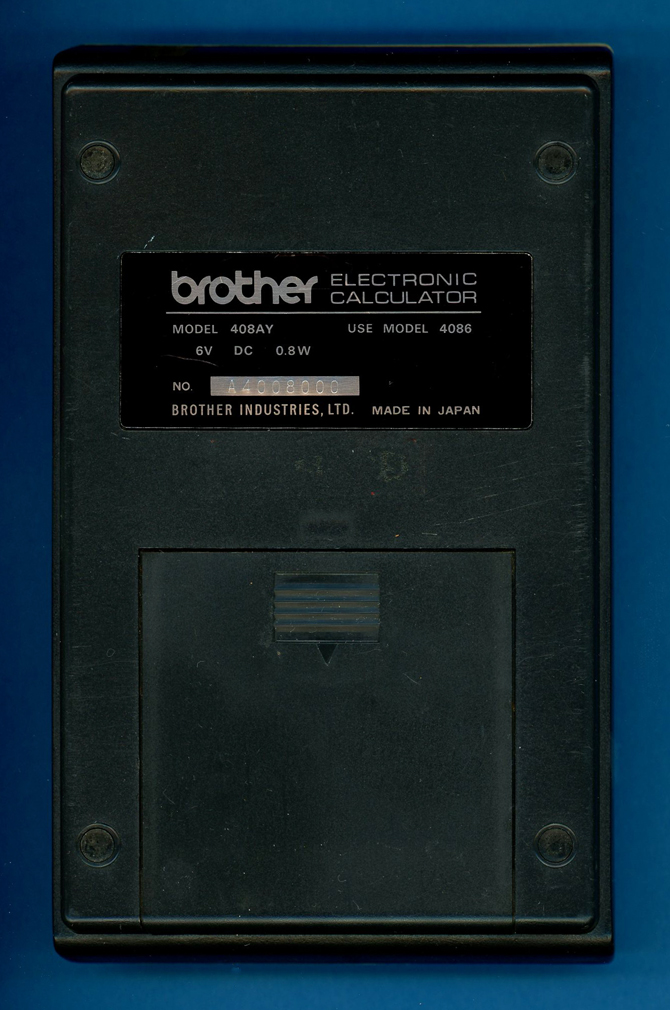

| The Brother PROCAL 408AY (Version 1) calculator is
powered by 4 AA-size batteries.
|

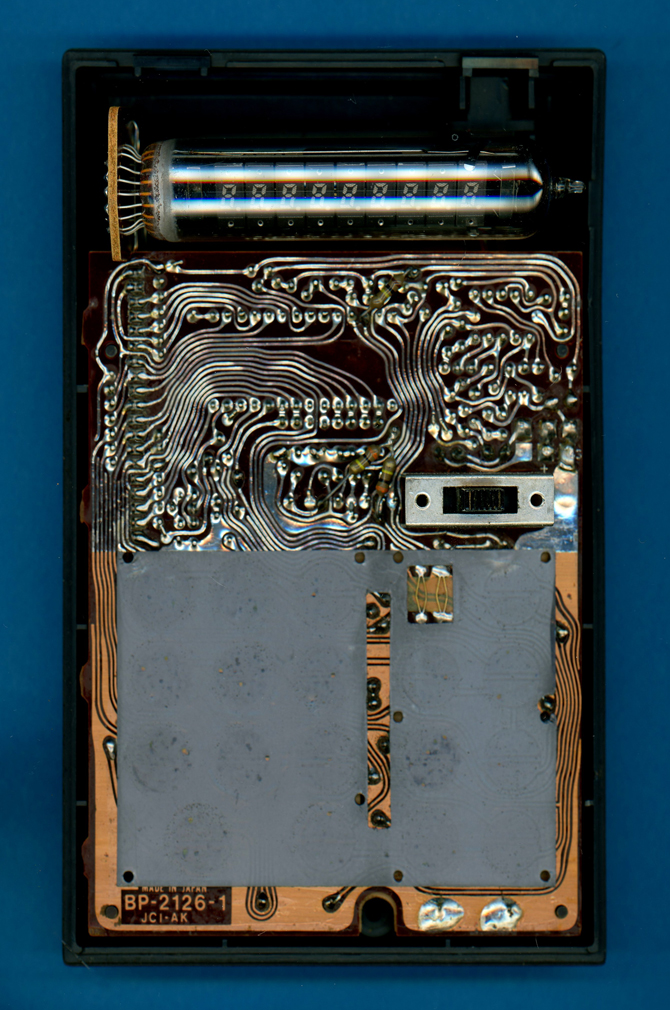

The inside view
of the PROCAL 408AY calculator with its upper housing part removed. |

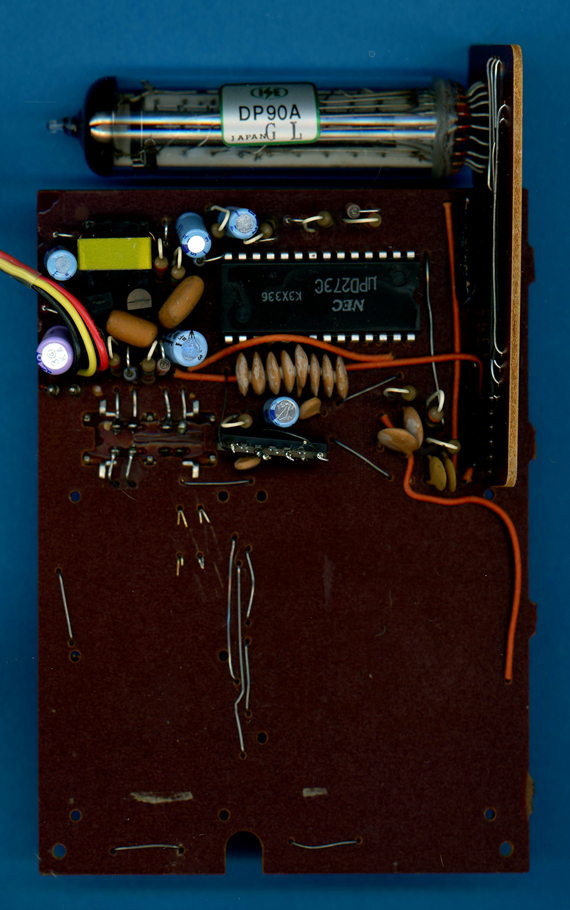

| The printed circuit board (PCB) of the
PROCAL 408AY calculator is centered around a NEC µPD273 single-chip calculator circuit.  |

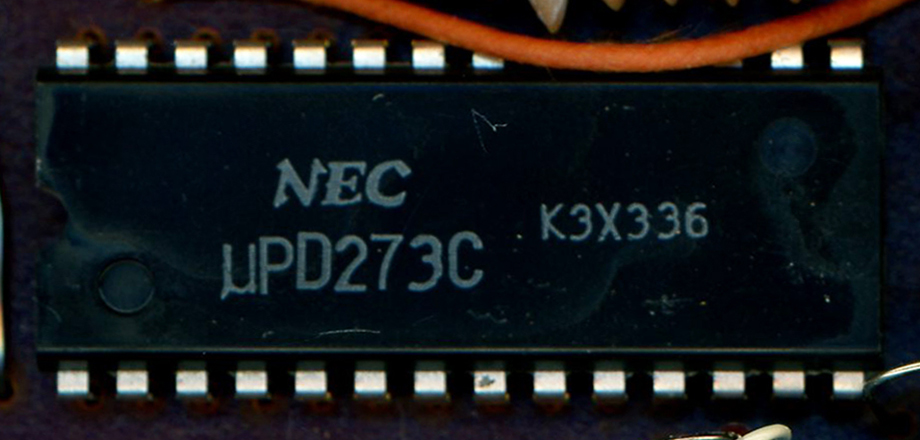

Close-up view
of the NEC µPD273 single-chip calculator circuit. |

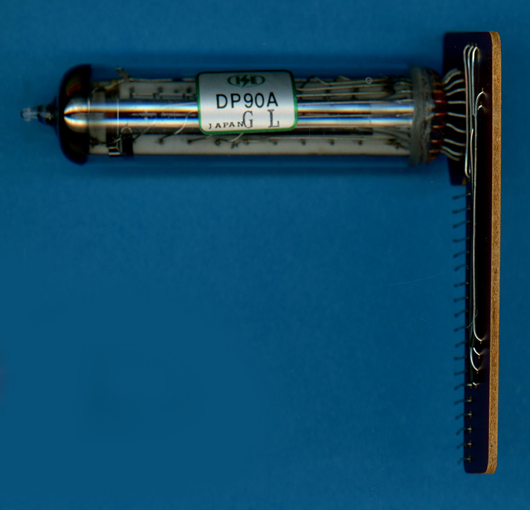

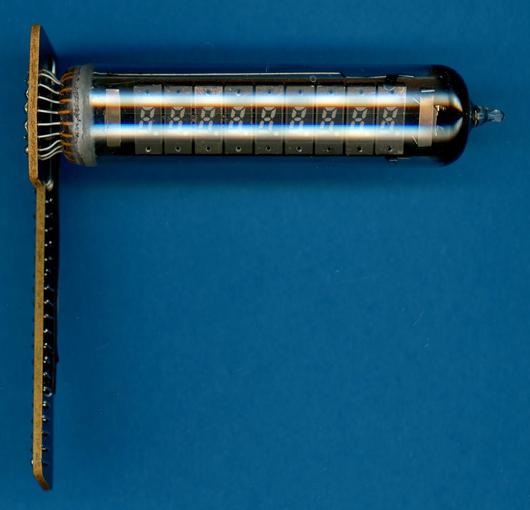

The Display PCB of the PROCAL 408AY
calculator with the ISE Electronics DP90A VFD.  |

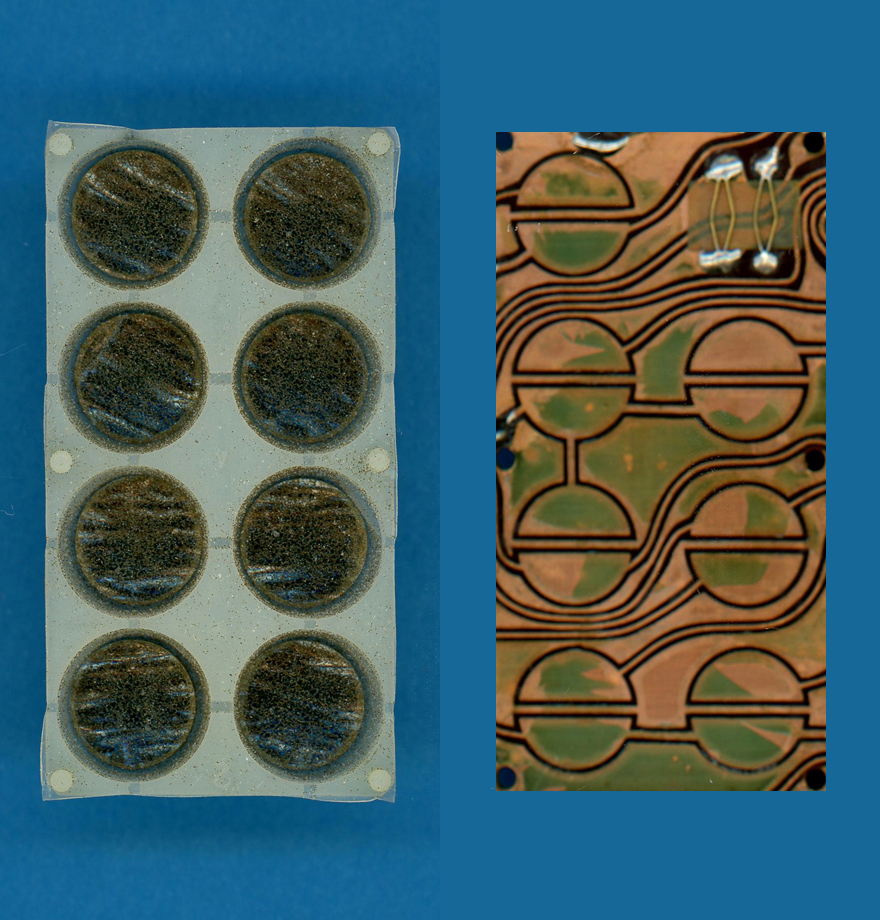

Close-up view of parts from the
capacitive keyboard assembly. |

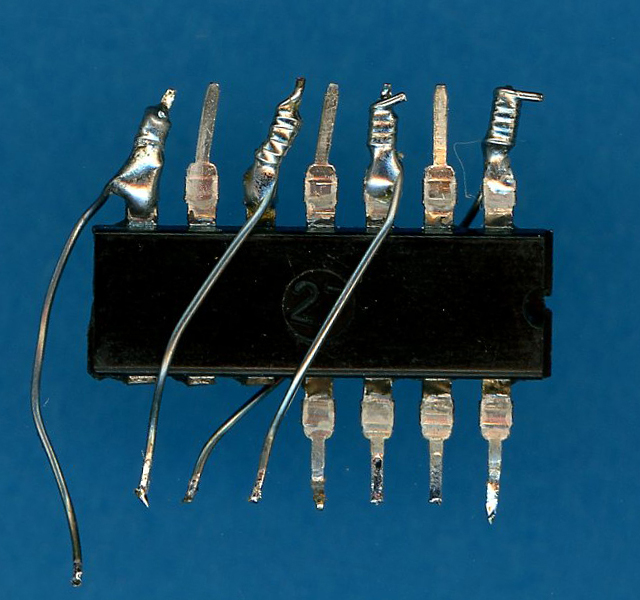

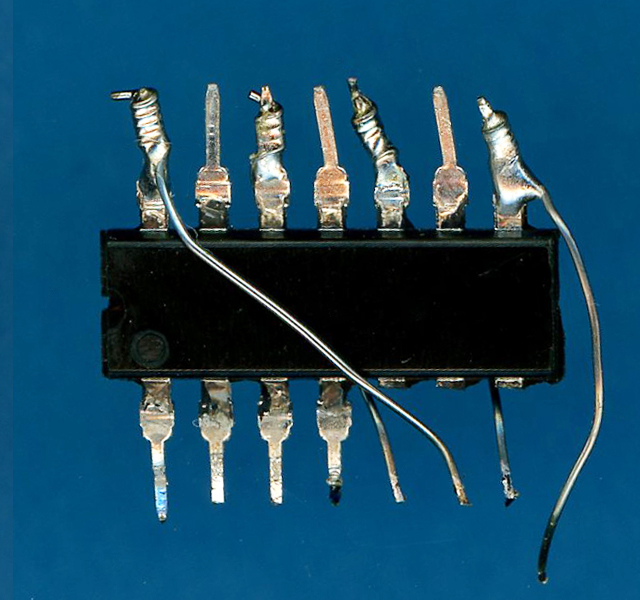

Close-up view of the "Mystery"
keyboard interface circuit.
 |
