Additional Pictures
| This
Brother PROCAL 408AY (Version 2)
was
manufactured in Japan in January 1974.
|

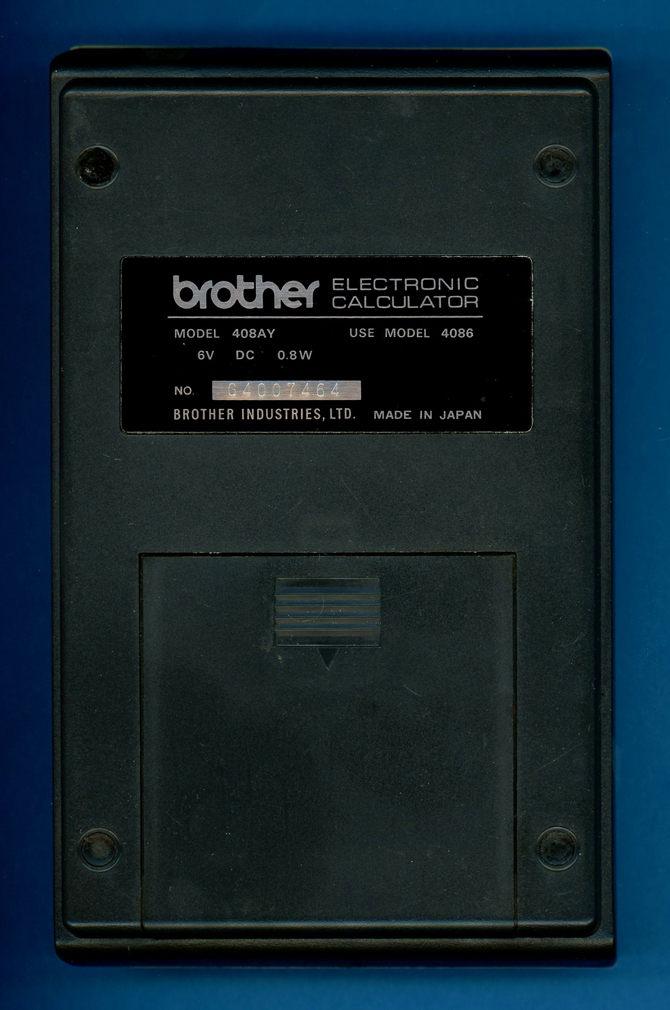

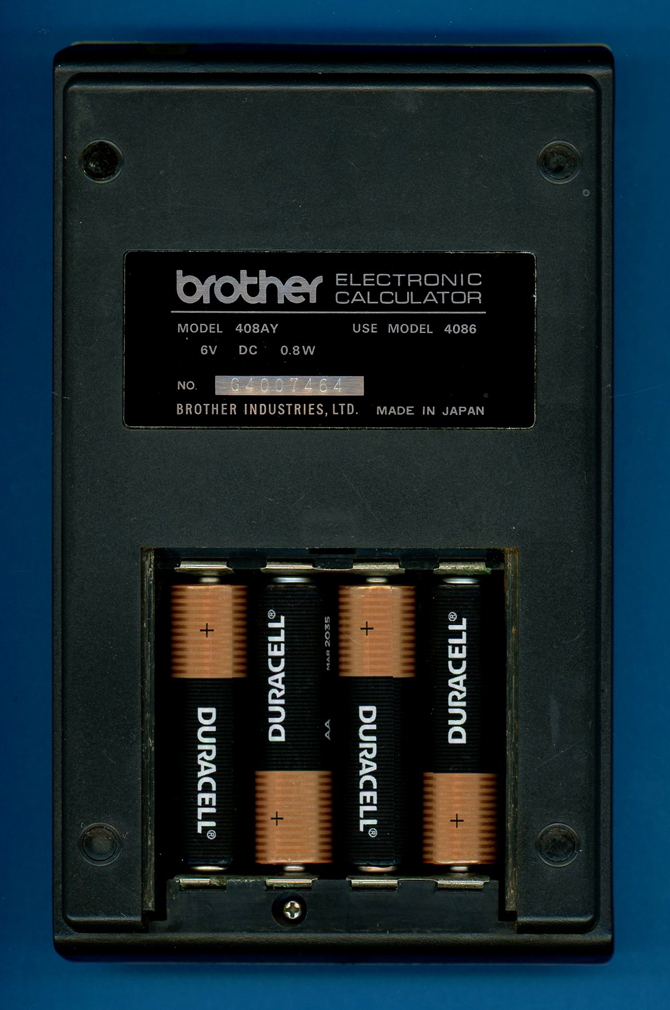

| The Brother PROCAL 408AY (Version 2) calculator is
powered by 4 AA-size batteries.
|
The inside view
of the PROCAL 408AY calculator with the housing removed. |

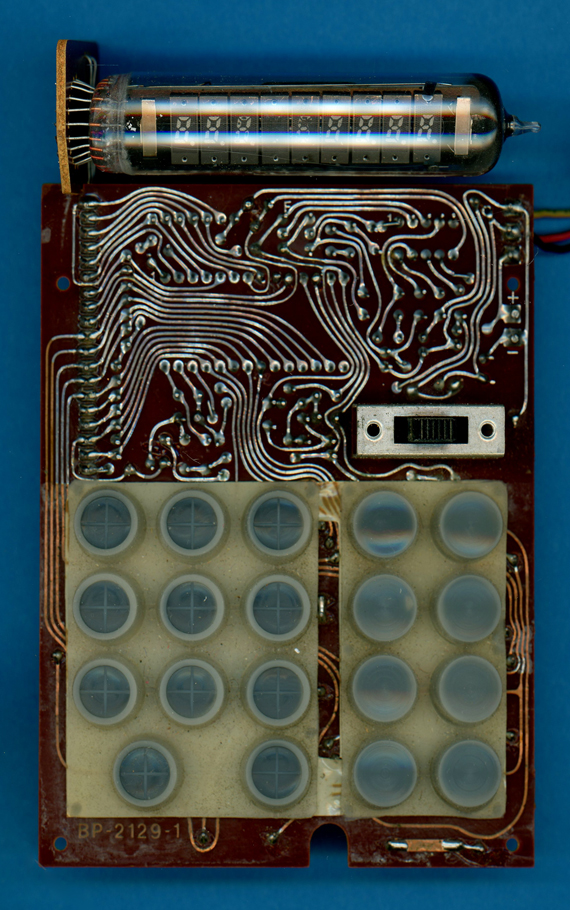

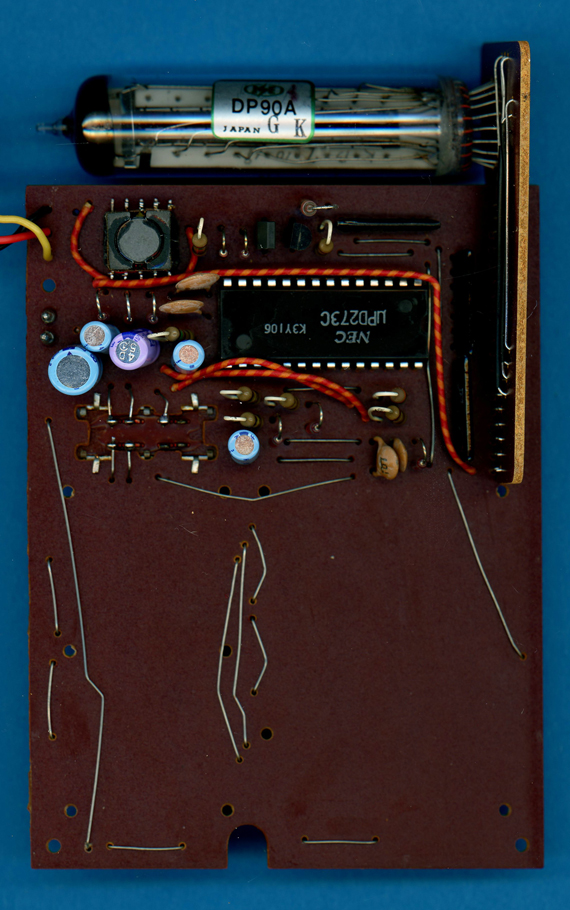

| The printed circuit board (PCB) of the
PROCAL 408AY calculator is centered around a NEC µPD273 single-chip calculator circuit.  |

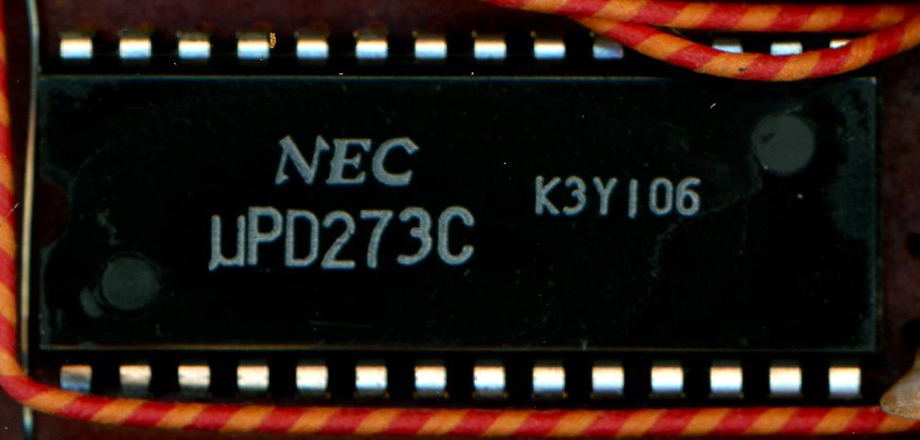

Close-up view
of the NEC µPD273 single-chip calculator circuit. |

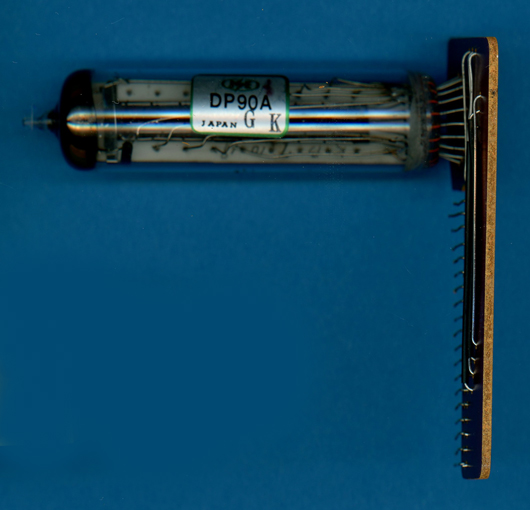

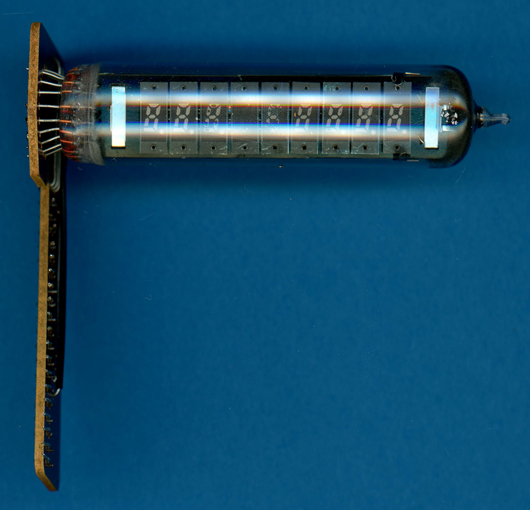

The Display PCB of the PROCAL 408AY
calculator with the ISE Electronics DP90A VFD.  |

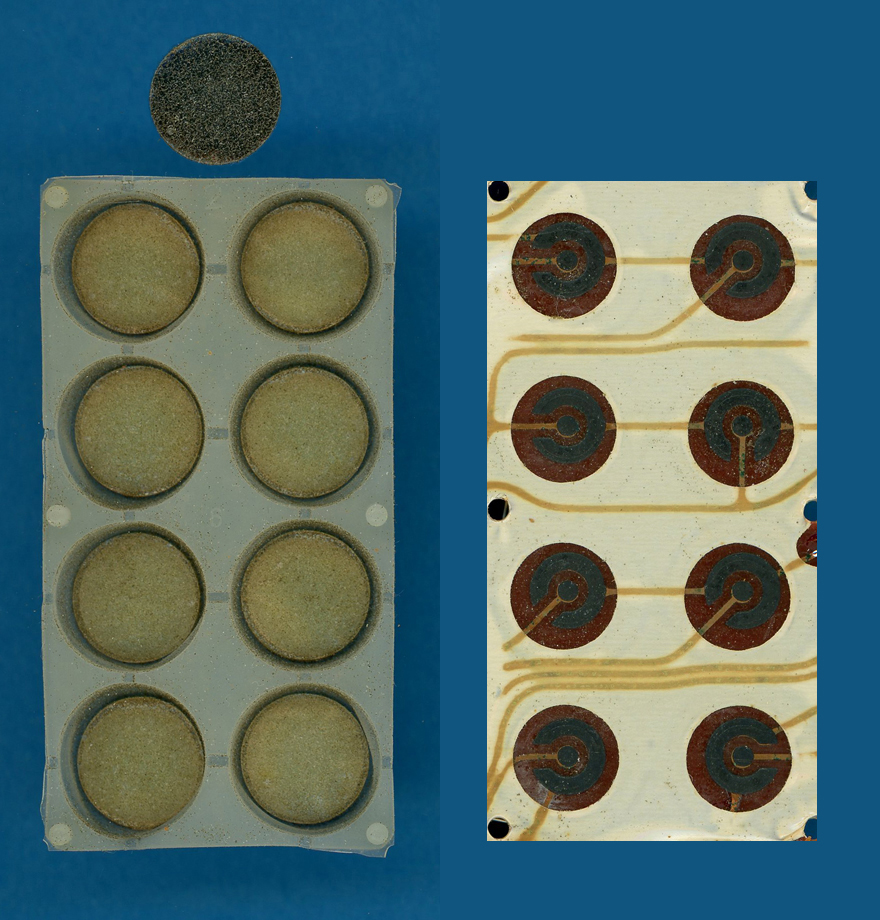

Close-up view of parts from the
capacitive keyboard assembly. |
