Additional Pictures

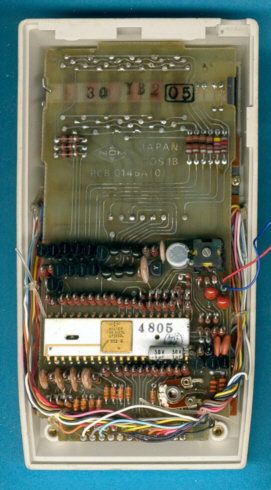

The printed circuit board of the Personal 60-DB accomodates
a lot of discrete components to drive the display.

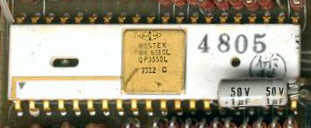

The MOSTEK MK6010 single-chip calculator circuit.
