Additional Pictures
This Busicom "HANDY-LE"
LE-120s was manufactured
in March 1972 in Japan. |

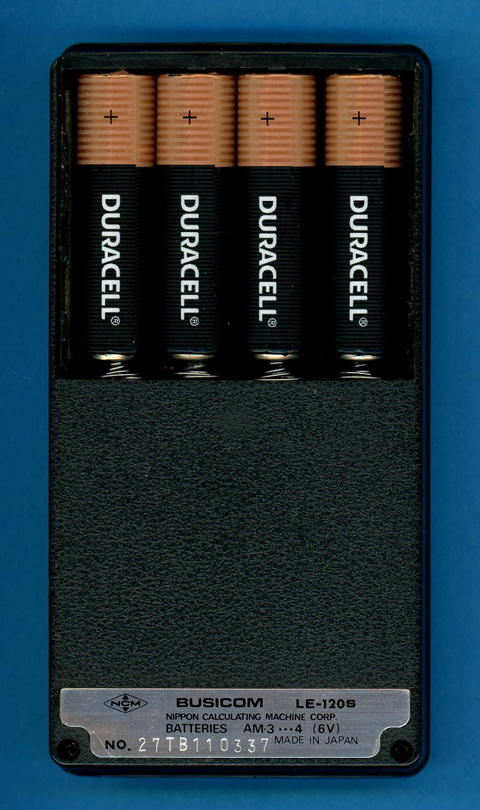

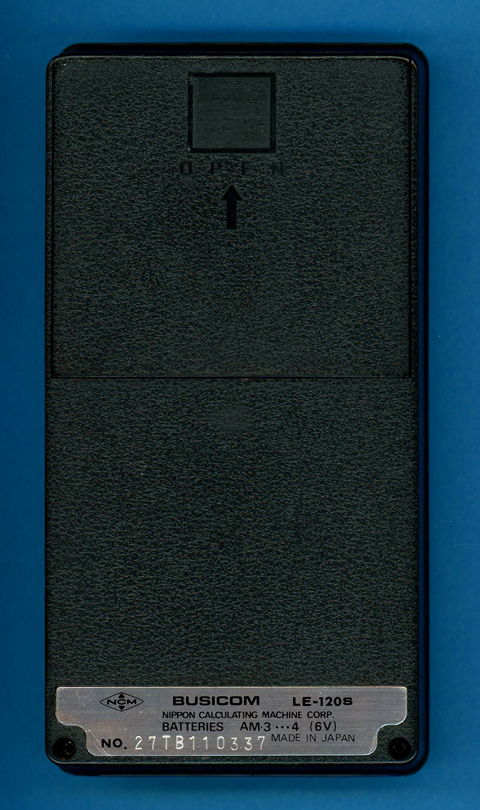

The Busicom "HANDY-LE"
LE-120S is
powered by four disposable AA-size batteries. |

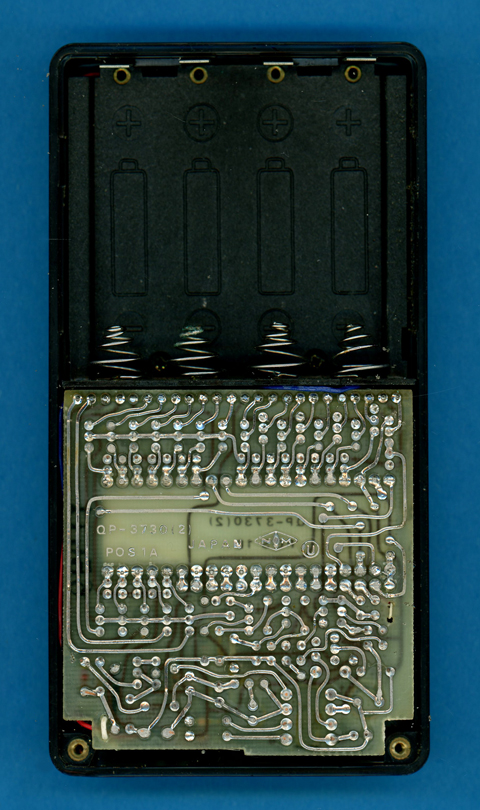

The
Busicom "HANDY-LE"
LE-120S calculator with the rearside of its housing removed. |

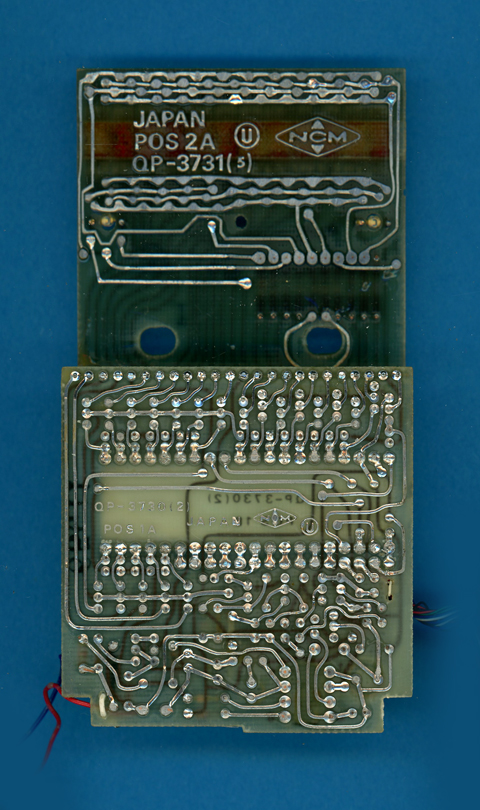

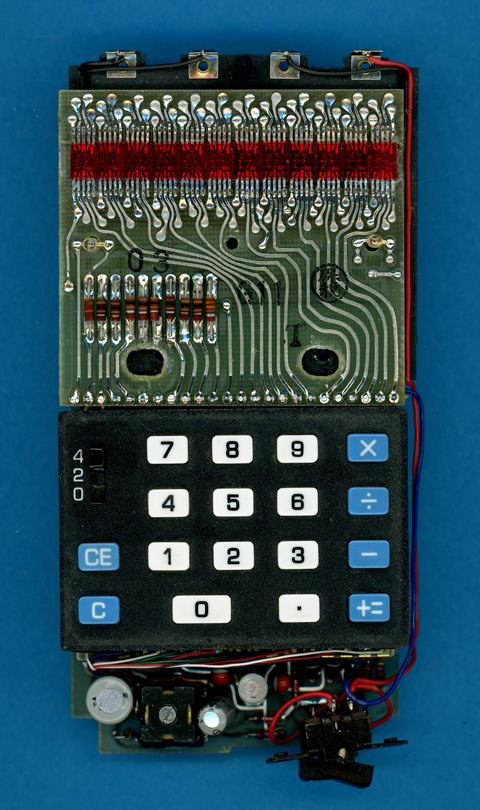

The
Busicom "HANDY-LE"
LE-120S calculator with its housing completely
removed. |

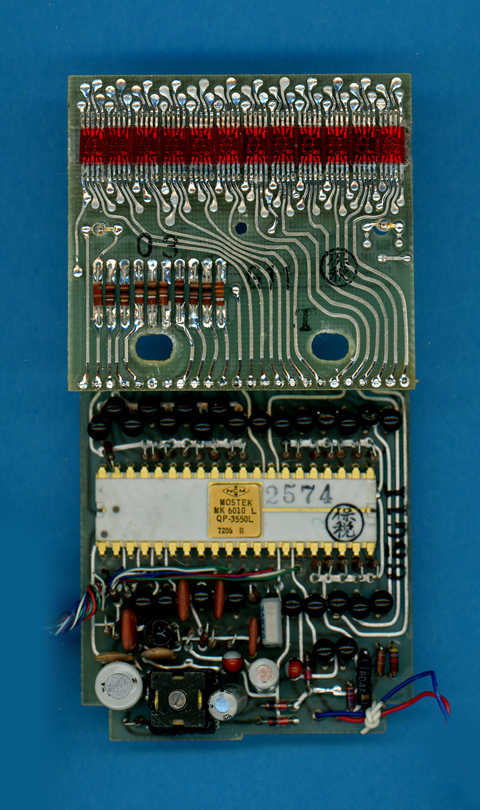

| The Main printed circuit
board (PCB) of the Busicom "HANDY-LE" LE-120S is centered around a Mostek MK6010L single-chip calculator circuit.   |

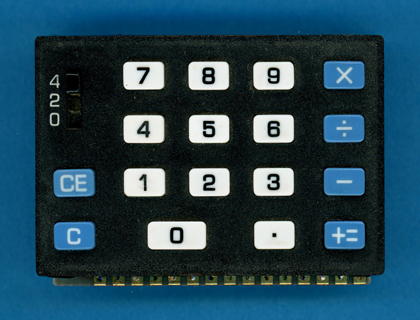

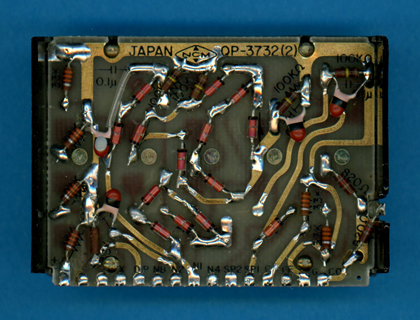

The
keyboard module of the Busicom "HANDY-LE" LE-120S calculator.  |

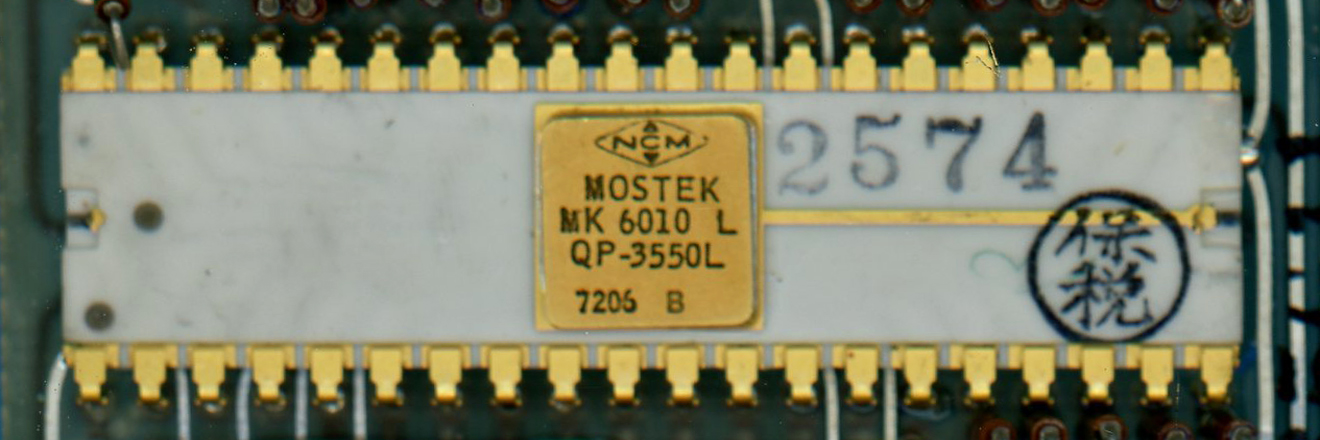

Close-up view of the Mostek MK6010L
single-chip calculator circuit. |

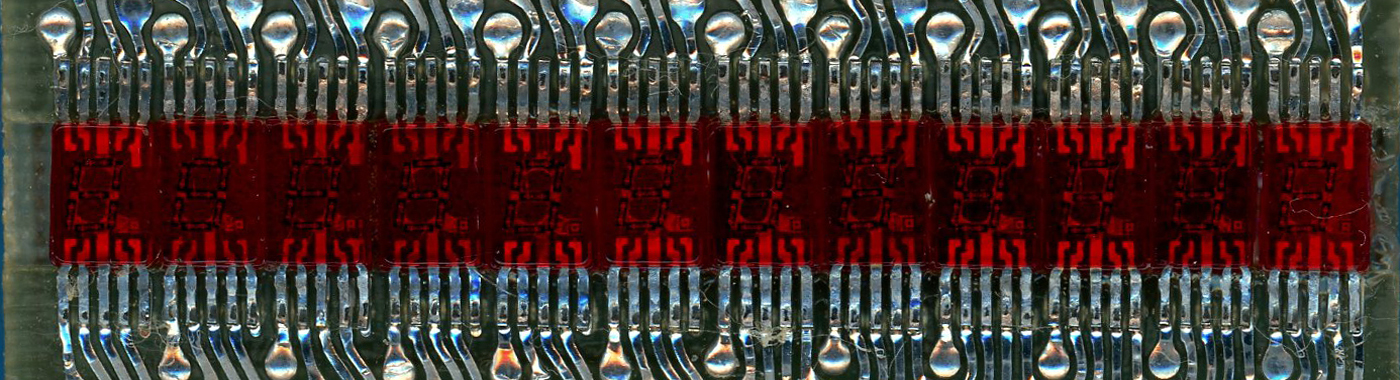

Close-up view of the 12
Monsanto MAN-3A Seven-Segment LED Displays. |
