Additional Pictures
This calfax 800CD was manufactured
in October 1973 in Hong Kong. |

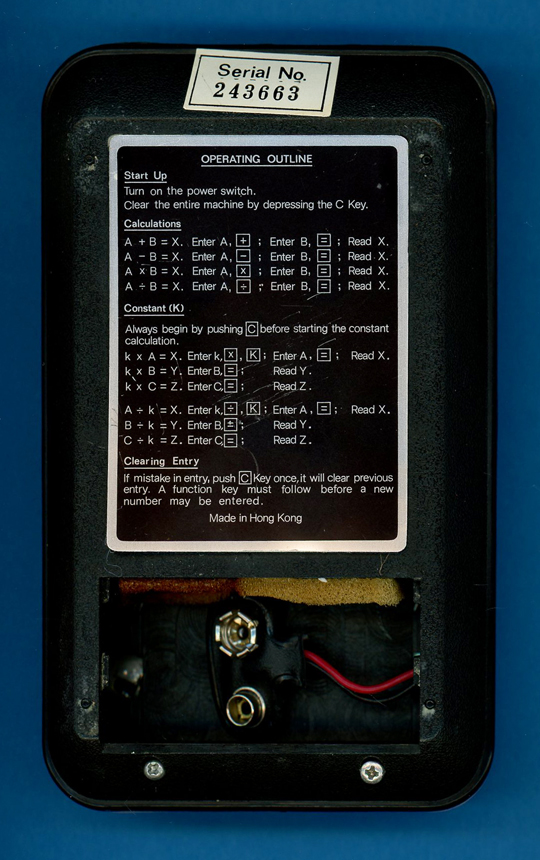

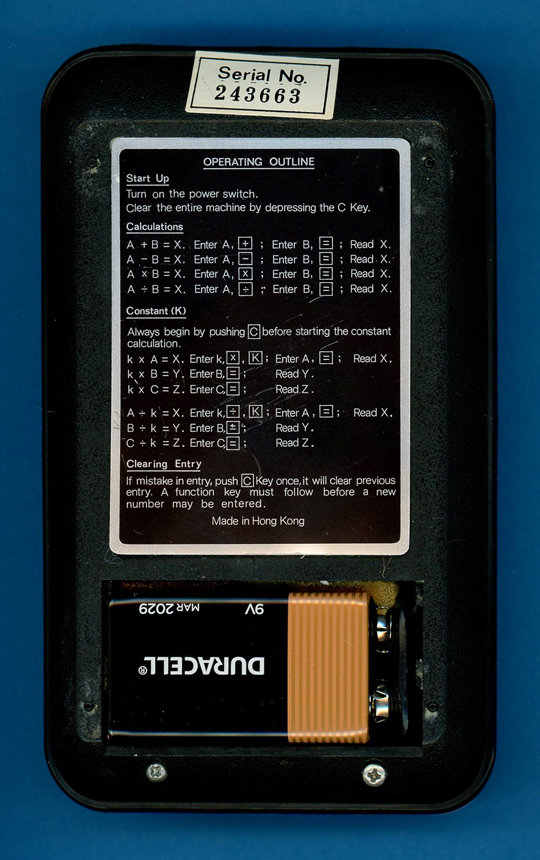

The calfax 800CD is
powered by a disposable 9-Volt battery. |

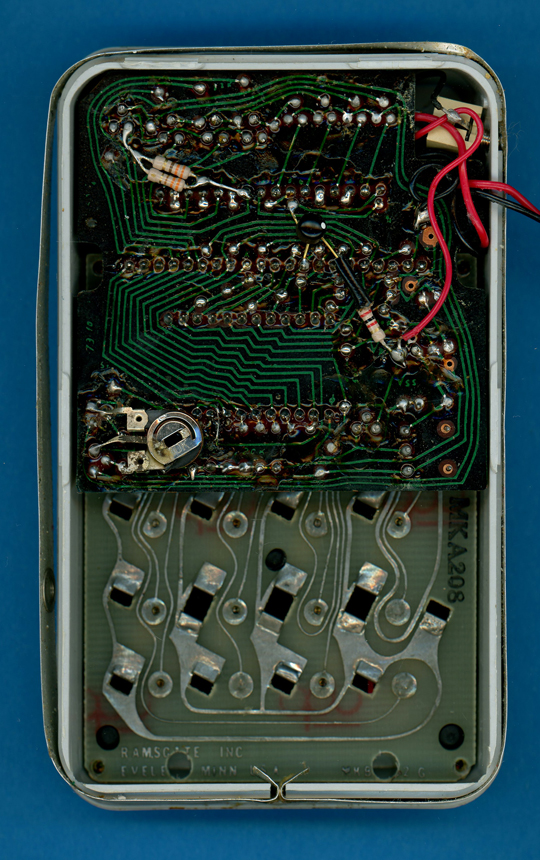

The
calfax 800CD calculator with the rearside of its housing removed. |

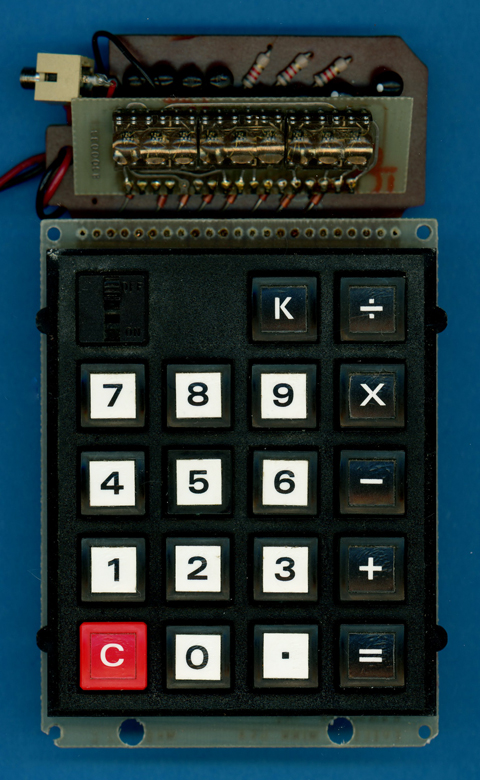

The
calfax 800CD calculator with its housing completely
removed. |

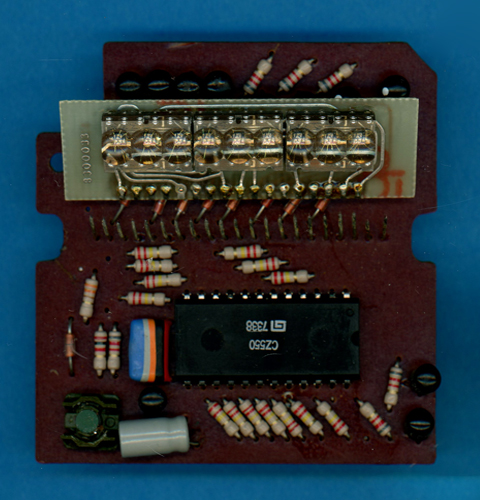

| The Main printed circuit
board
(PCB) of the calfax 800CD is centered around a General Instrument CZ-550 single-chip calculator circuit.  |

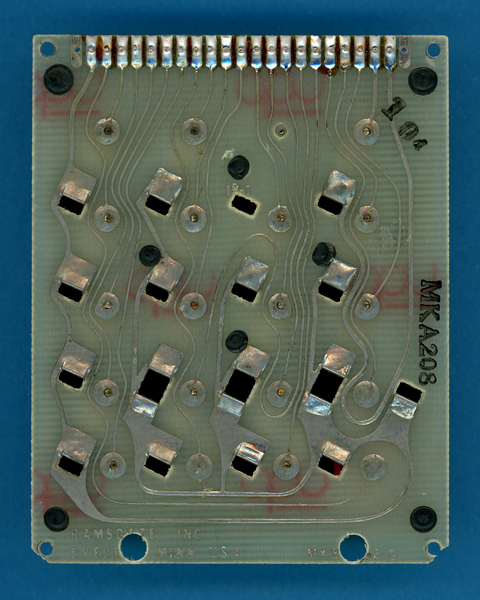

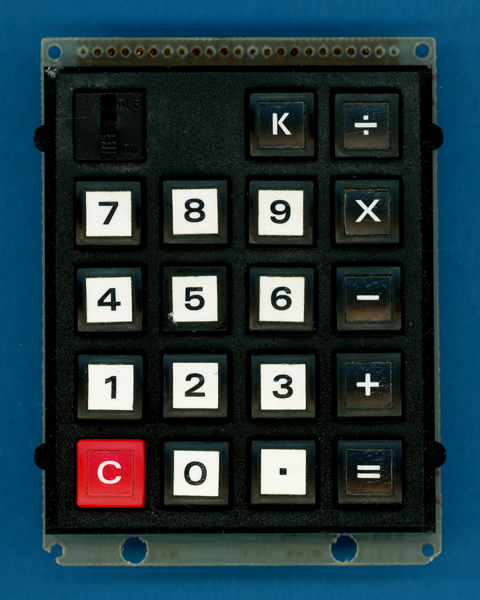

The
keyboard module of the calfax 800CD calculator.  |
Close-up view of the
General Instrument CZ-550 single-chip calculator circuit. |

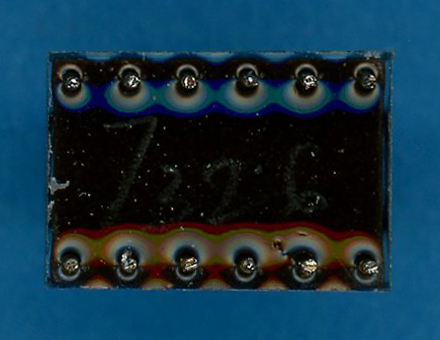

Close-up view of the
backside of the unknown 3-digit LED Display Modules. |
