Additional Pictures
|
This Canon card F-32 was manufactured in 1980 in Japan.
|

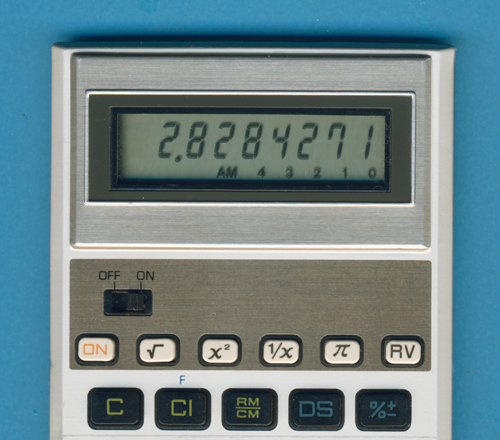

The unusual
indicators of the LC-Display used with the Canon F-32.  |

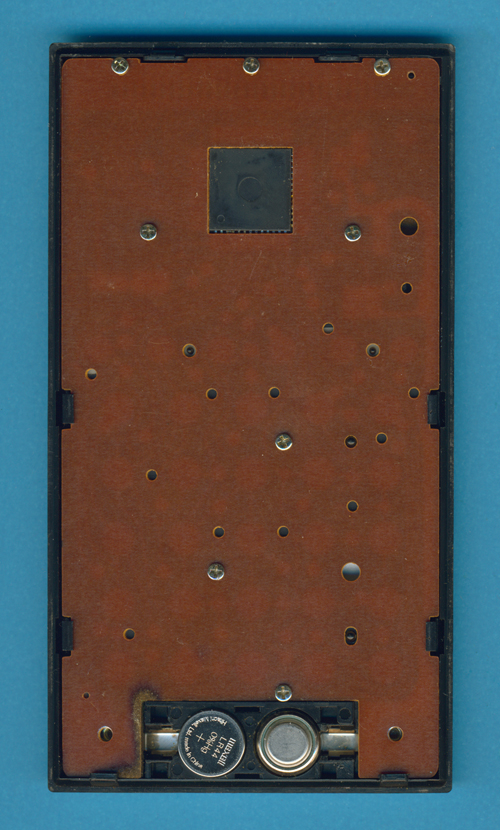

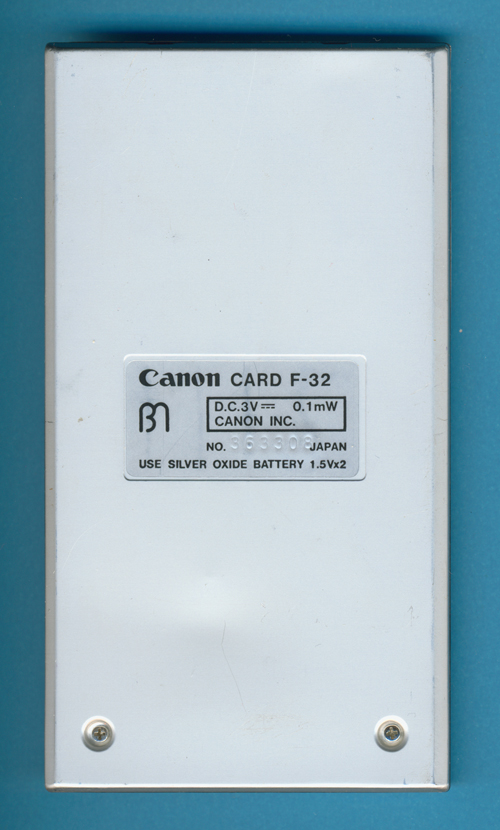

| The Canon card F-32 is powered by two LR44
batteries.
|

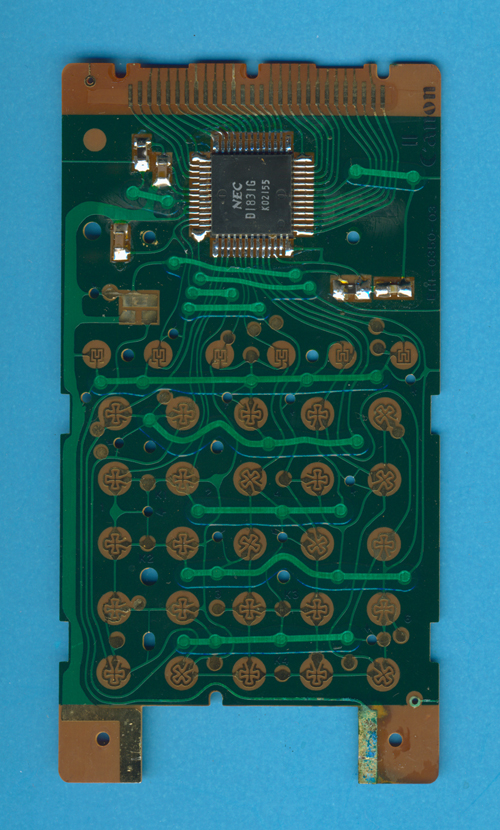

| The printed circuit board
(PCB) of the Canon Canon card F-32 is centered around a NEC uPD1831G single-chip calculator circuit.
|

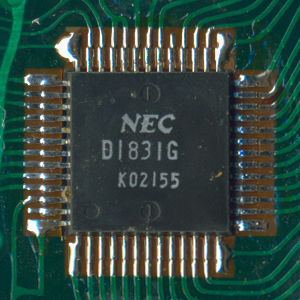

| Close-up view of the NEC uPD1831G
single-chip calculator circuit.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, February 24, 2020. No reprints without written permission.
