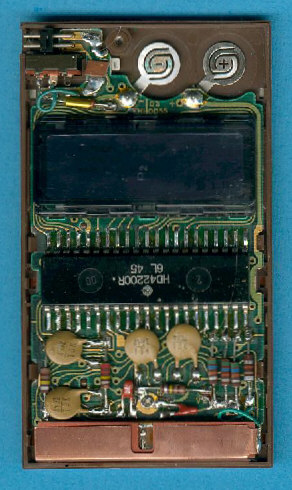

The Canon LC-1 uses a huge calculator chip
soldered like a surface mounted device.
The yellow LC-display is mounted behind
the black plastic hood. Exploring the copper
shielding foil reveals a DC/DC converter.

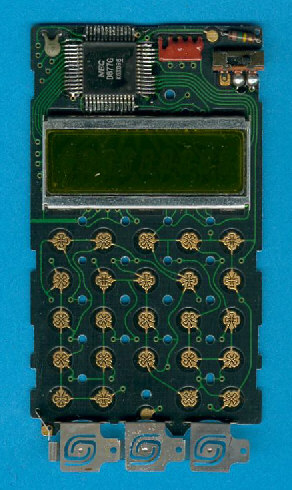

The later Canon LC-2 uses a conventional
design with a calculator chip in flat-pack
housing. The LC-display is uses conductive
zebra-stripes and three coin-size batteries
supply the circuit.
