Additional Pictures
| This
Canon Palmtronic LD-8Ms
was
manufactured in March 1977 in Japan.
|

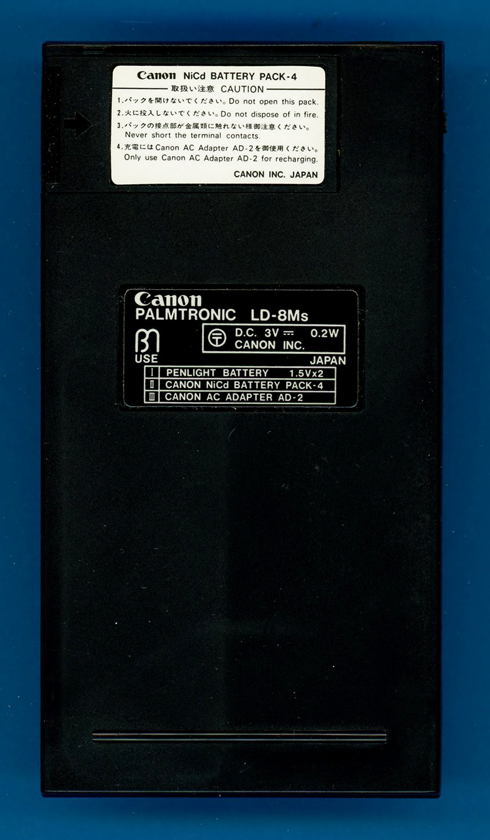

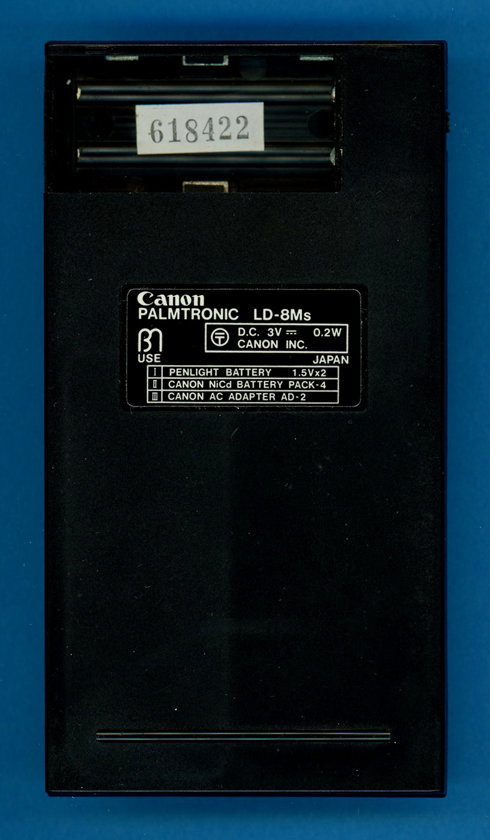

The Canon LD-8Ms calculator
is powered by two AAA-size batteries or a NiCd
Battery Pack.  |

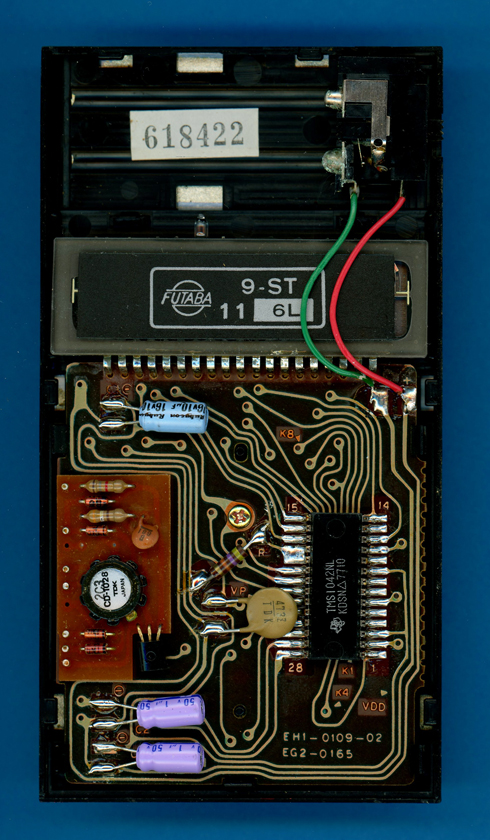

| The printed circuit board (PCB) of the
Canon LD-8Ms calculator is centered around a TMS1042 single-chip calculator circuit.
|

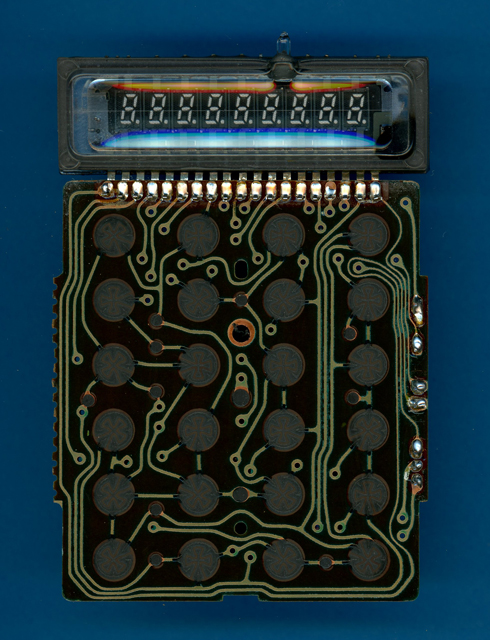

The keyboard
and VF-Display of the Canon LD-8Ms.
 |

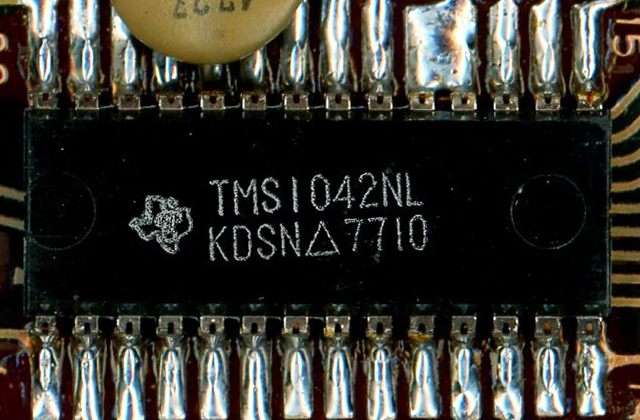

| The
Close-up
view of the TMS1042 single-chip calculator circuit.
|

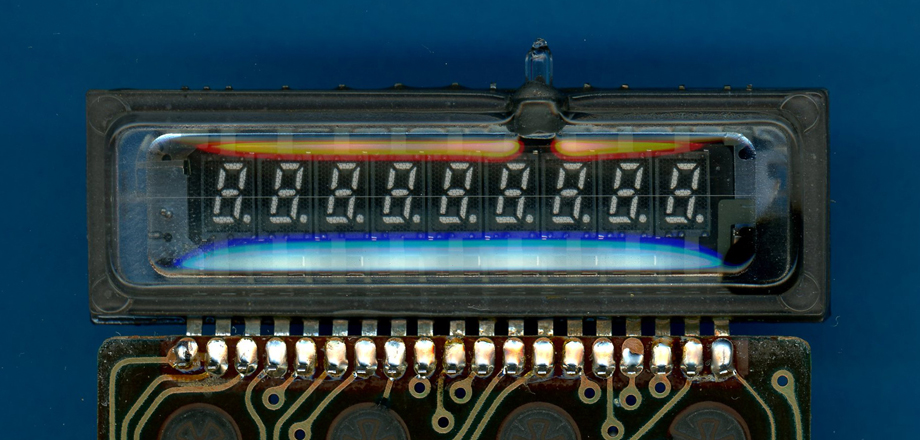

| The
Close-up
view of the FUTABA 9-ST-11 Vacuum Fluorescent Display (VFD).
|
