Additional Pictures
| This
Canon Palmtronic LD-8Rs
was
manufactured in October 1976 in Japan.
|

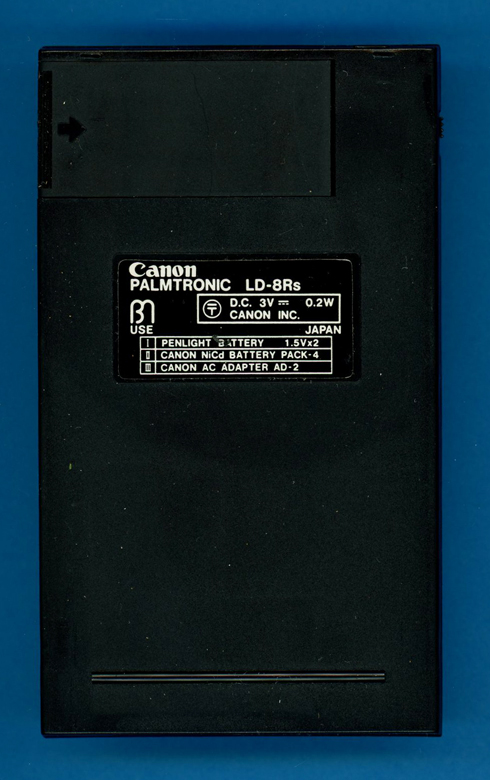

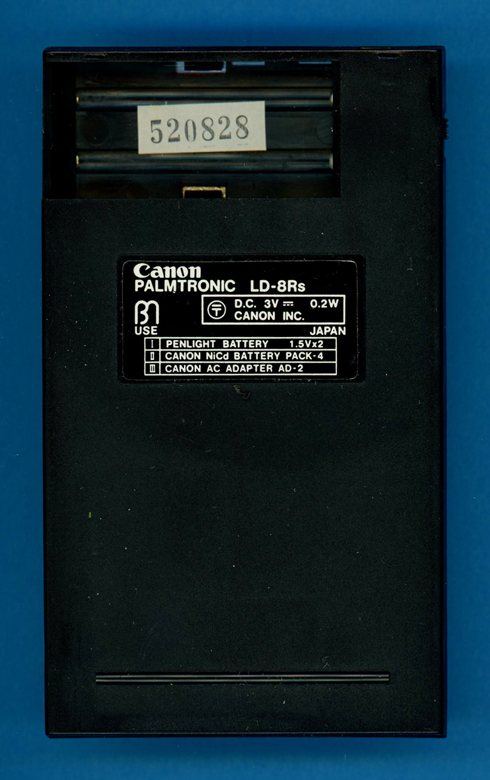

The Canon LD-8Rs calculator
is powered by two AAA-size batteries or a NiCd
Battery Pack.  |

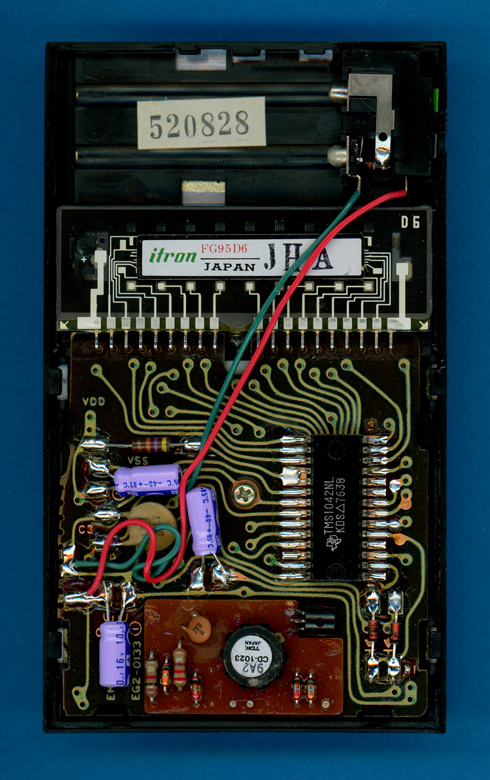

| The printed circuit board (PCB) of the
Canon LD-8Rs calculator is centered around a TMS1042 single-chip calculator circuit.
|

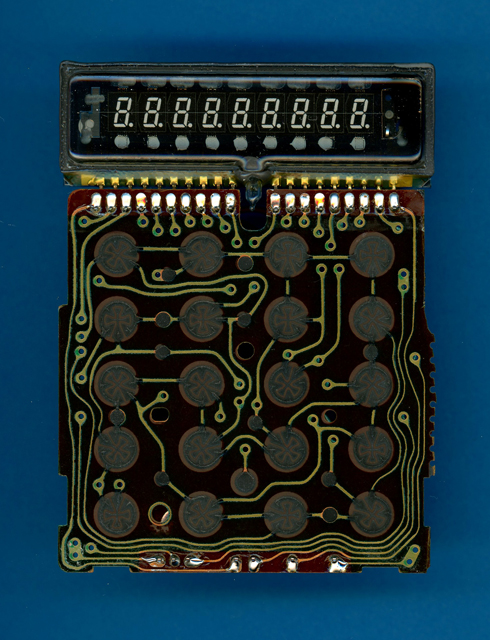

The keyboard
and VF-Display of the Canon LD-8Ms.
 |
|

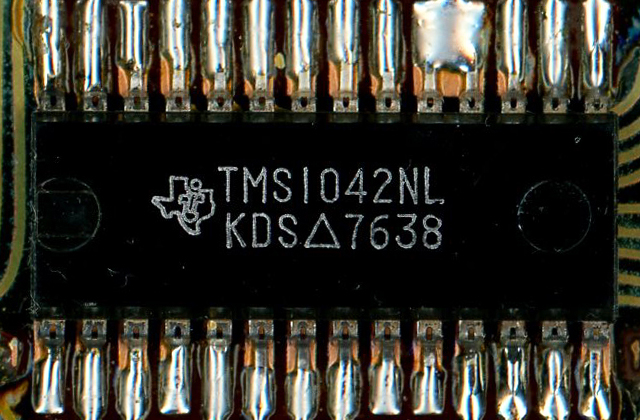

Close-up
view of the TMS1042 single-chip calculator circuit.
|
|

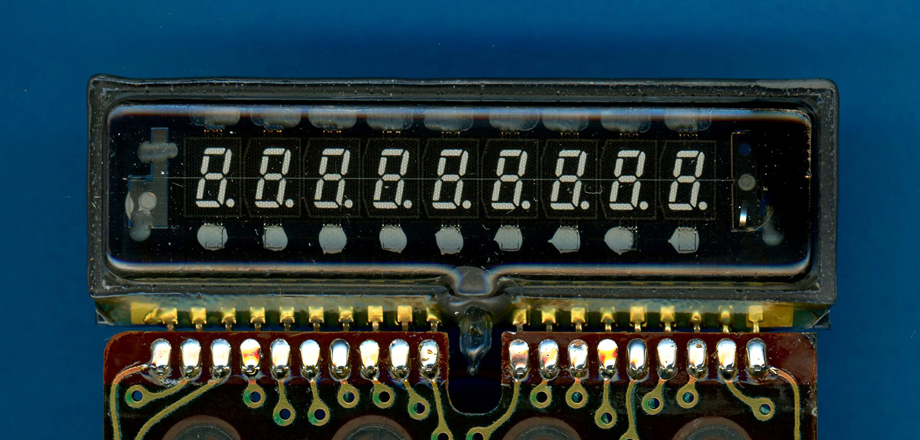

Close-up
view of the ITRON FG95D6 Vacuum Fluorescent Display (VFD).
|
If you have additions to the above article please email: joerg@datamath.org.
