This Canon Palmtronic LD-8s was manufactured in May 1978 in Japan. |

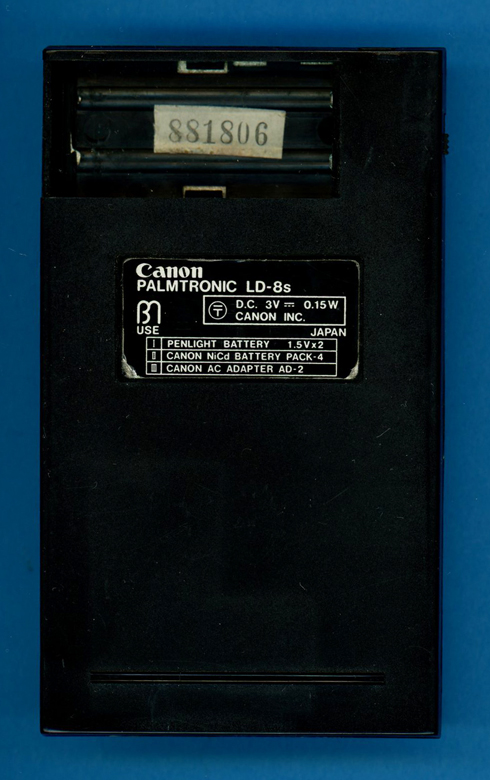

The Canon LD-8s calculator
is powered by two AAA-size batteries or a NiCd
Battery Pack. |
The printed circuit board (PCB) of the
Canon LD-8s calculator is centered around a TMS1042 single-chip calculator circuit.
|

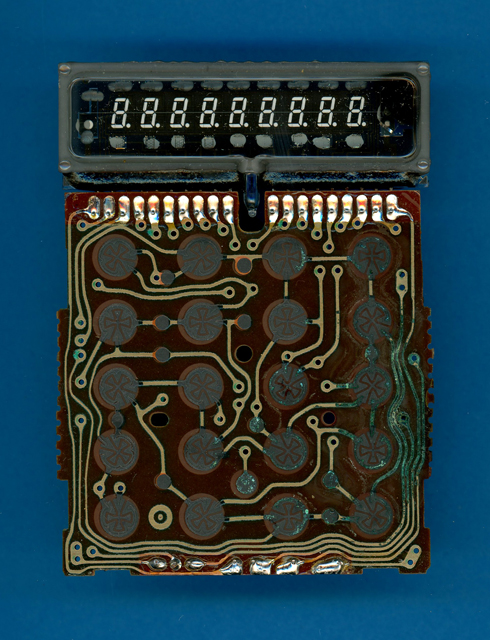

The keyboard
and VF-Display of the Canon LD-8s.
|
The

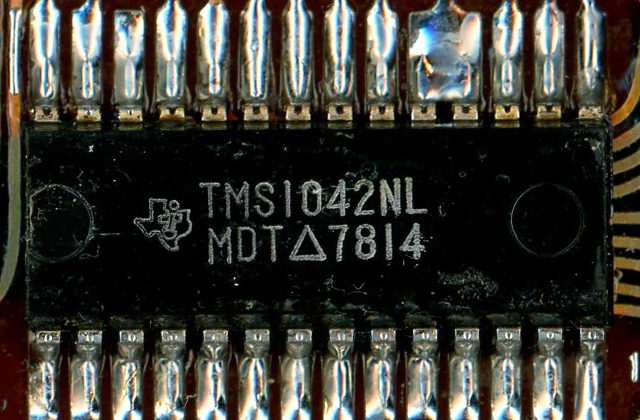

Close-up
view of the TMS1042 single-chip calculator circuit.
|
The
Close-up
view of the ITRON FG95F6 Vacuum Fluorescent Display (VFD).
|
