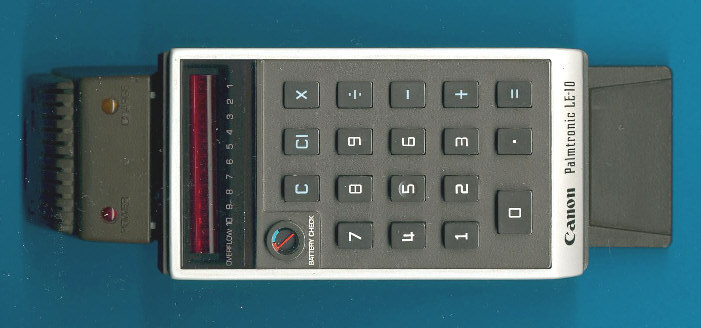

| The charger cradle
of the LE-10 is really big compared with the calculator.
|
|

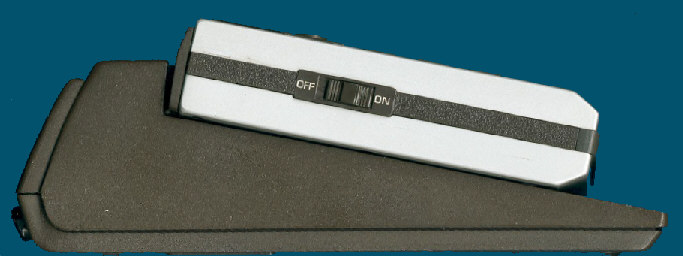

| During
charging time the cradle works as a comfortable stand
of the LE-10.
|
|

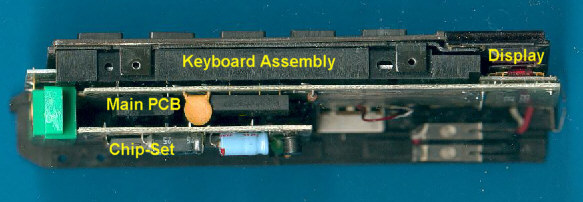

| Dismantling
the LE-10 reveals a compact arrangement of three
different printed circuit boards (PCB's) and the keyboard assembly.
|
|

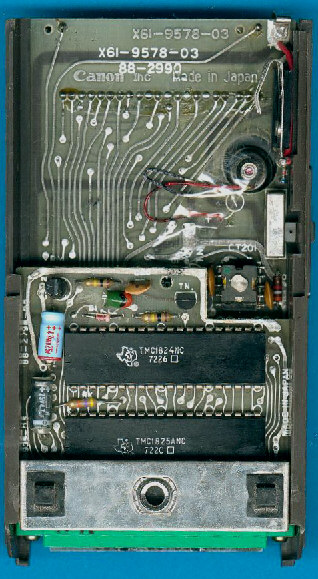

| Two of the
PCB's use edge connectors and can be easily removed from the chassis.
|

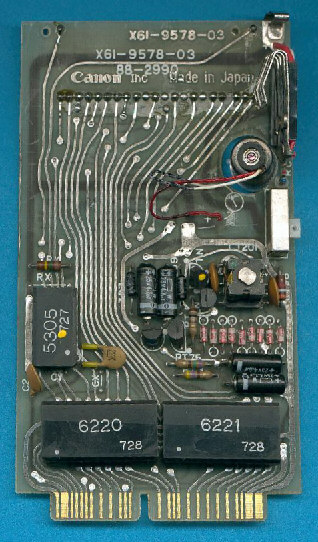

The main PCB
with the hybrid display- drivers and a discrete DC/DC converter.
|

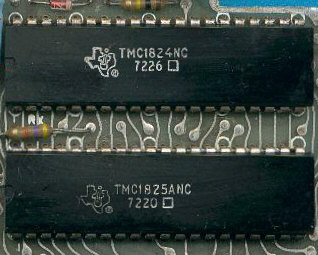

| The Canon LE-10 uses the
TMS1824, TMS1825 chip set known from the L100A. It was developed in the same era as the later single-chip calculator IC TMS1802.
|

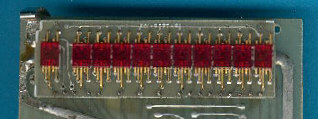

The tiny display
board holds 11 small 7-segment modules made by TI.
|

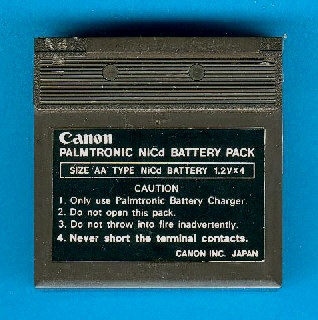

| The sealed NiCd
battery pack of the LE-10.
|
|
