Additional Pictures

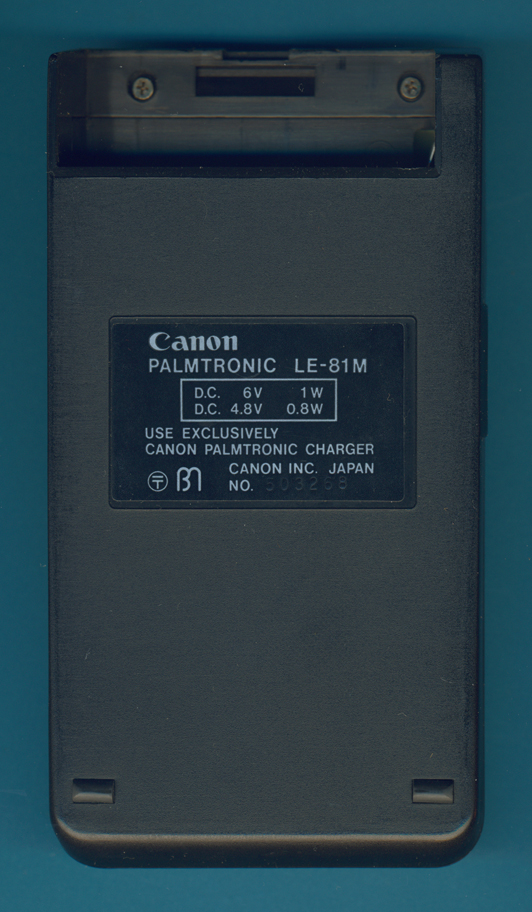

This Canon LE-81M was
manufactured in June 1974 by Canon in Japan. |

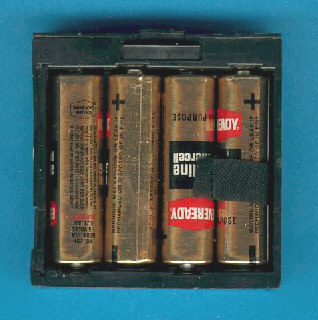

| The Canon LE-81M can be
operated by either a rechargeable NiCd battery pack or four disposable Alkaline batteries .  |

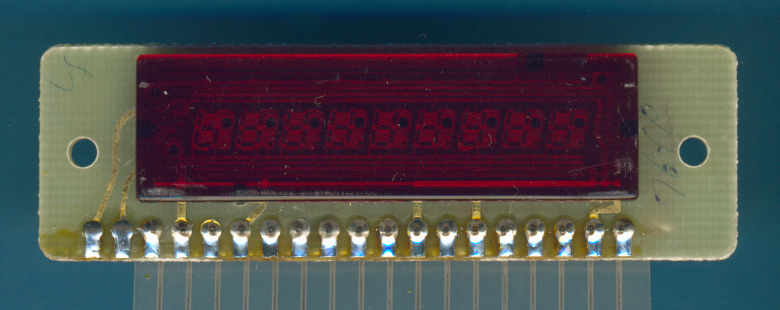

The Canon LE-81M makes
obviously use of a Bowmar Optostic LED module. |

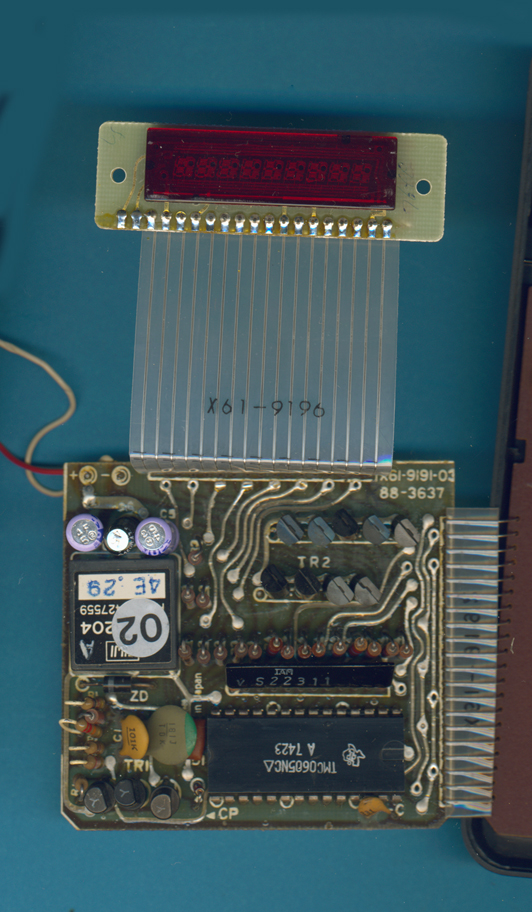

| The double-sided printed
circuit board (PCB) of the Canon LE-81M is centered around a TMC0605 single-chip calculator circuit.
|

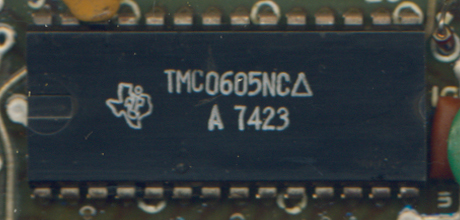

| Close-up
view of
the TMC0605 single-chip calculator circuit.
|

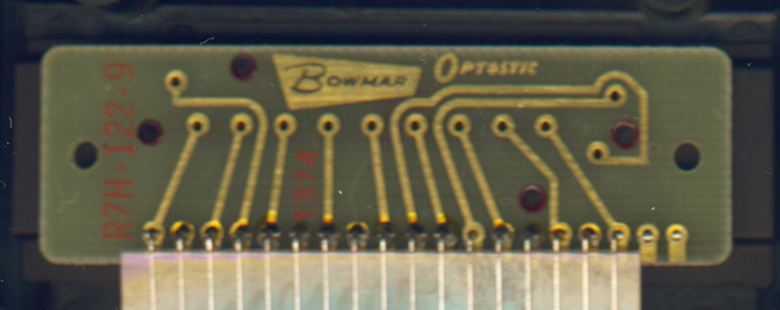

Close-up view of the
Bowmar R7H-122-9D Display module.  |
If you have additions to the above article please email: joerg@datamath.org.
