Additional Pictures
The
sales box of the Canon LE-83 (Version 1) sold around
Summer 1974 in the US.![]() ![]() |

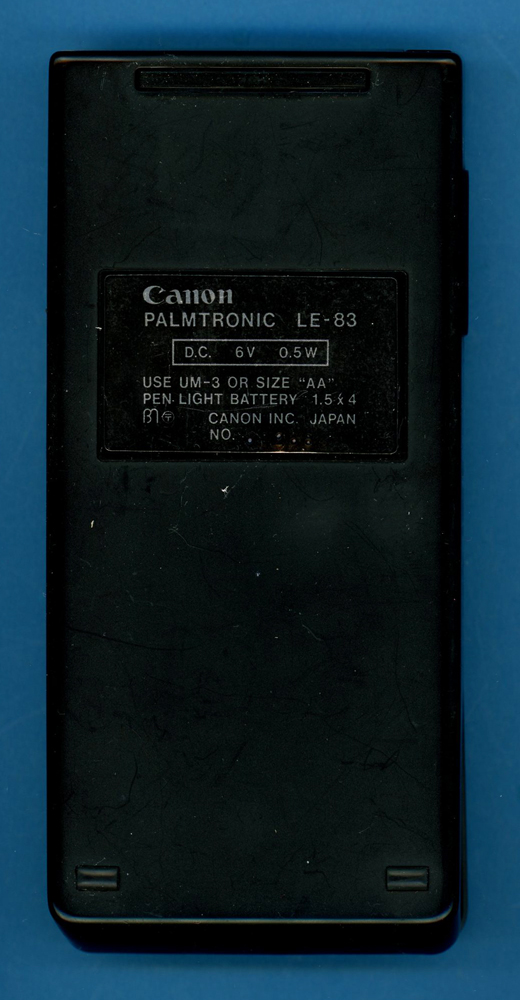

This Canon LE-83 (Version
1) was
manufactured in May 1974 by Canon in Japan.![]() |

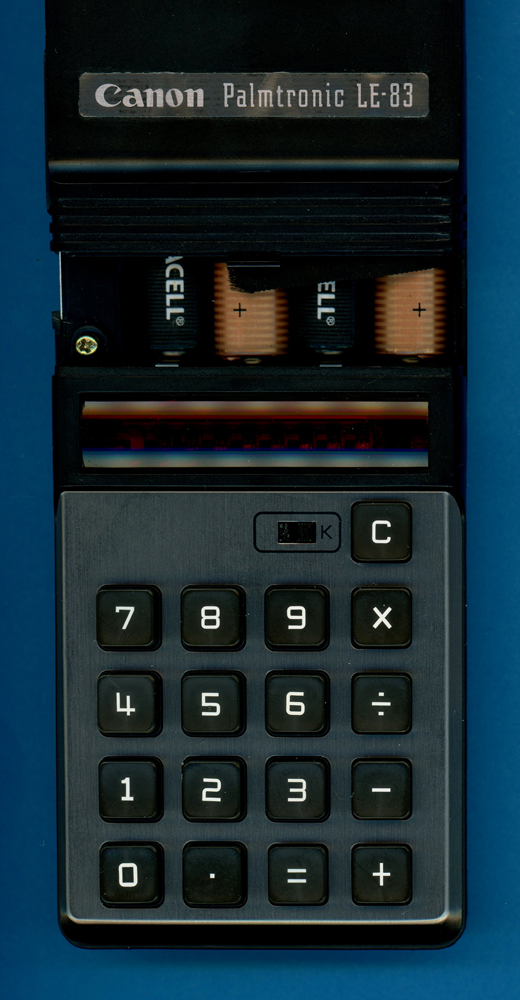

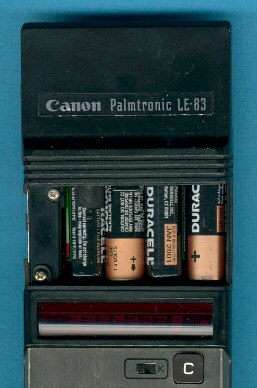

The Canon LE-83 is powered by a
four disposable 1.5 Volt batteries.![]() |

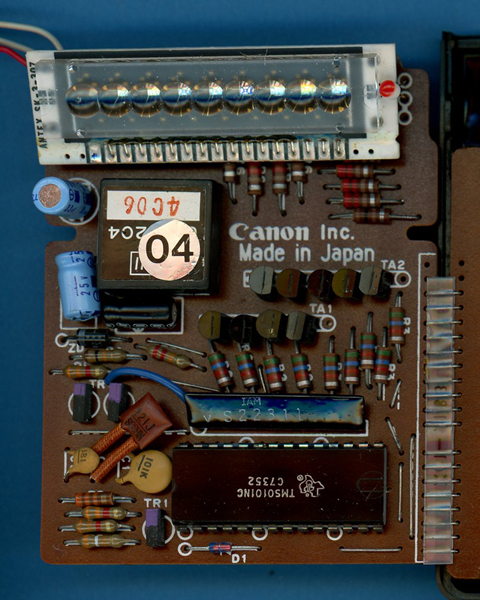

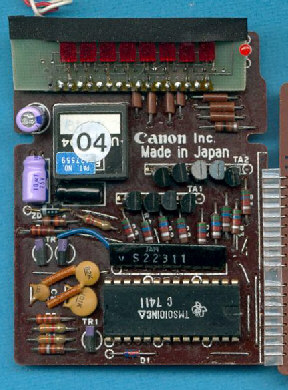

The printed circuit board
(PCB) of the Canon LE-83 is centered around a
TMS0101 single-chip calculator circuit and supported by discrete transistors instead the two display drivers hybrid circuits. ![]() |

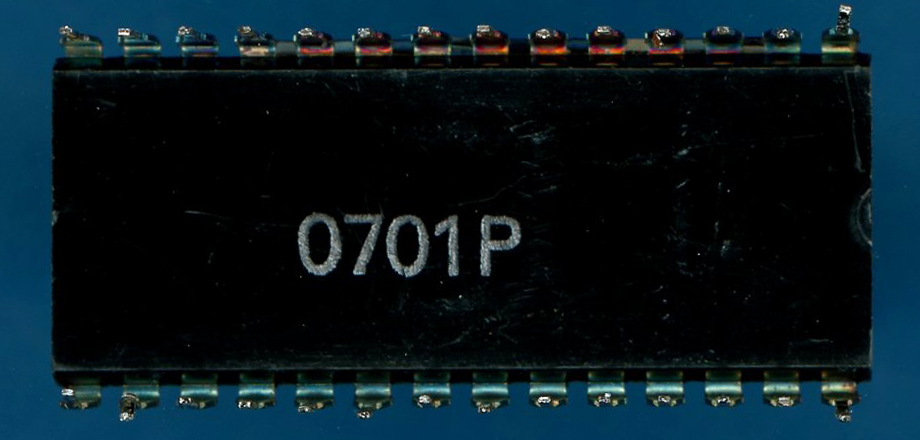

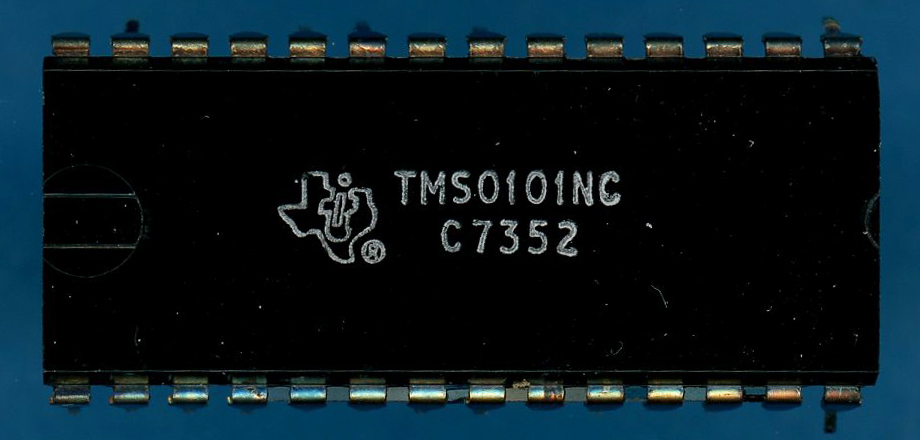

Close-up view
of the TMS0101 single-chip calculator circuit.![]() ![]() |

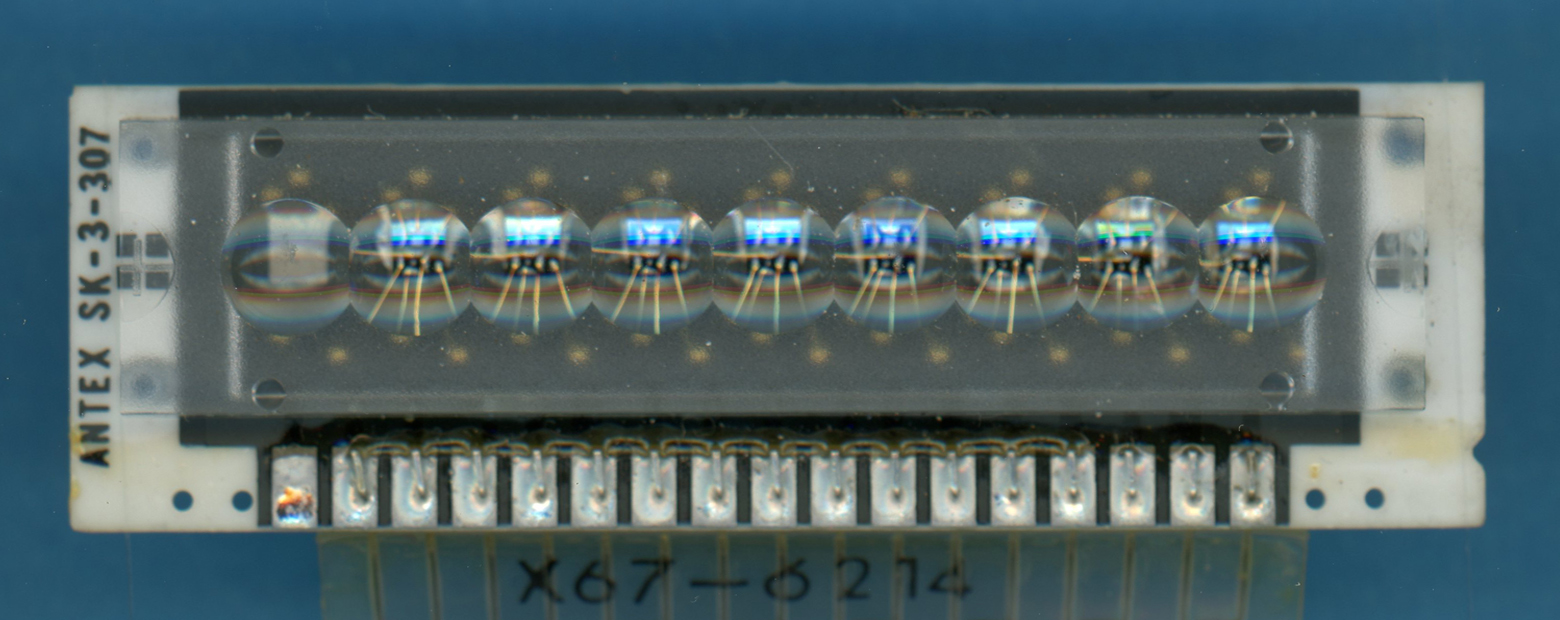

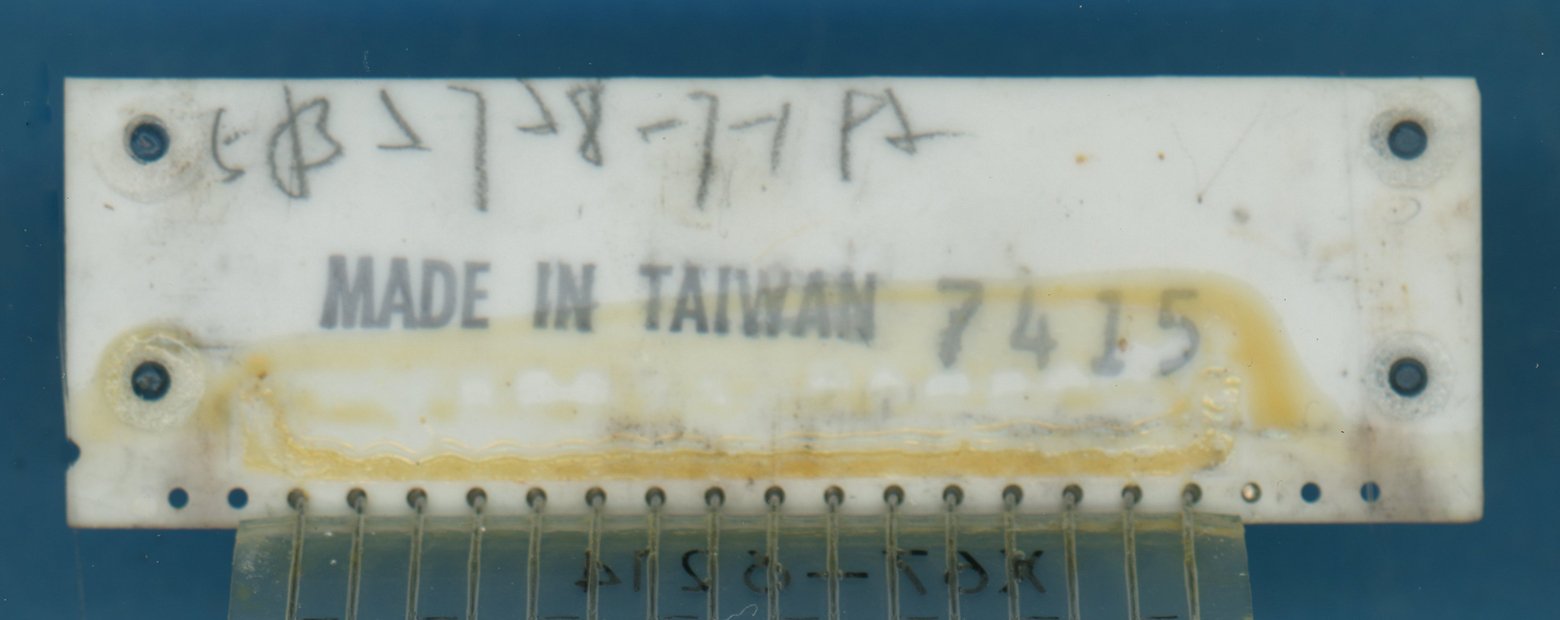

Close-up view of the
ANTEX SK-3-307 LED display module.![]() ![]() |

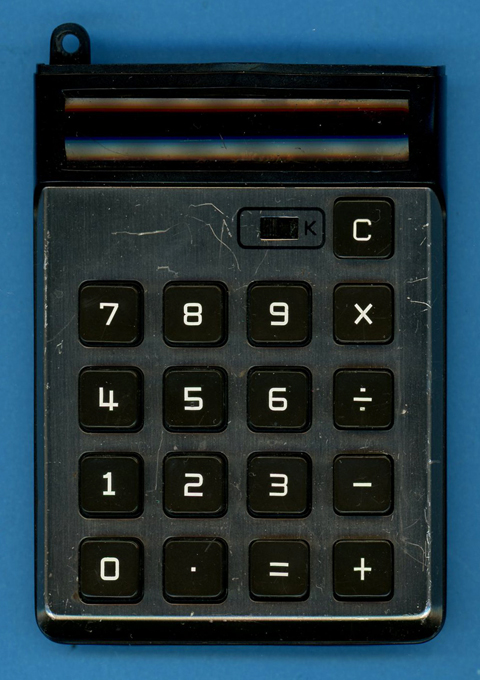

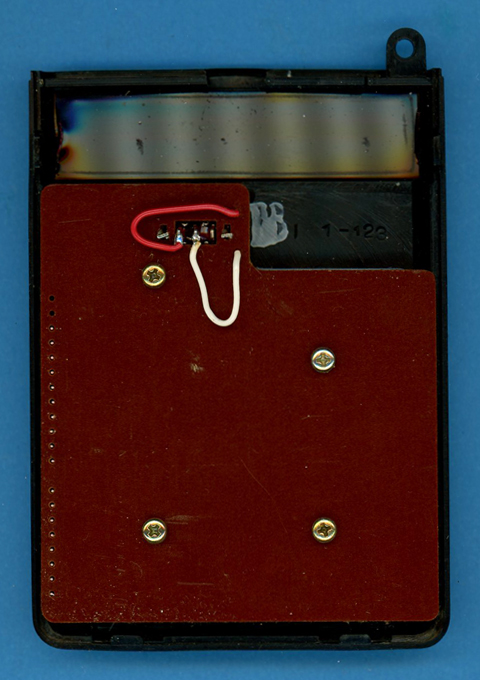

Front and backside of the
keyboard assembly from a Canon LE-83 calculator.![]() ![]() |

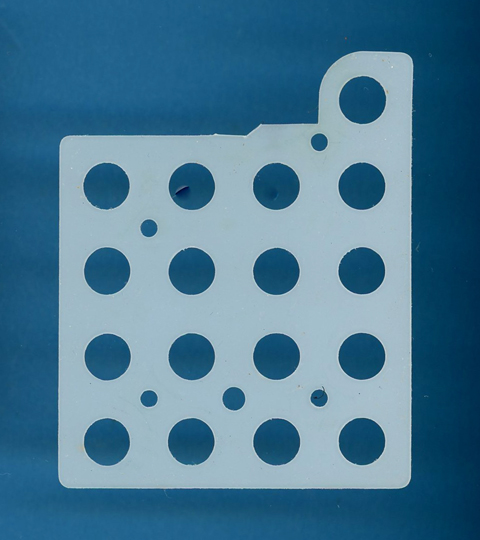

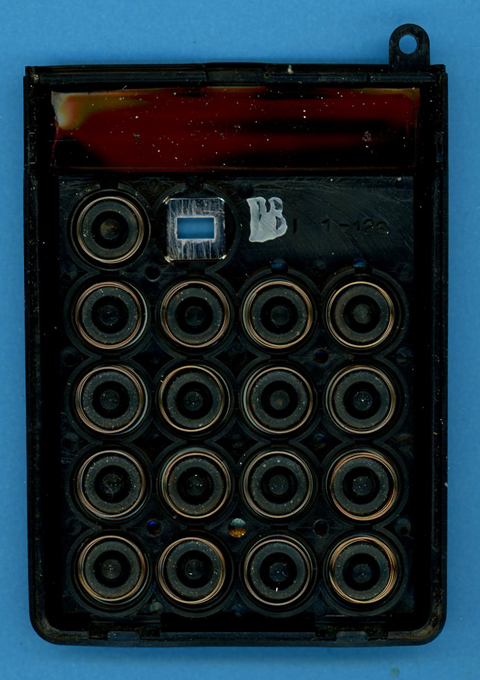

The keyboard assembly
with the printed circuit board (PCB) removed,
showing the springs and conductive rubber elements of the keys. The springs are isolated from the PCB with a stamped plastic foil. ![]() ![]() |
