DATAMATH CALCULATOR MUSEUM |
Additional Pictures
This Canon LE-83 (Version
2) was
manufactured in April 1974 by Canon in Japan.![]() |
||
The Canon LE-83 is powered by a
four disposable 1.5 Volt batteries.![]() |
||
The printed circuit board
(PCB) of the Canon LE-83 is centered around a
TMS0101 single-chip calculator circuit and supported by discrete transistors instead the two display drivers hybrid circuits. ![]() |
||

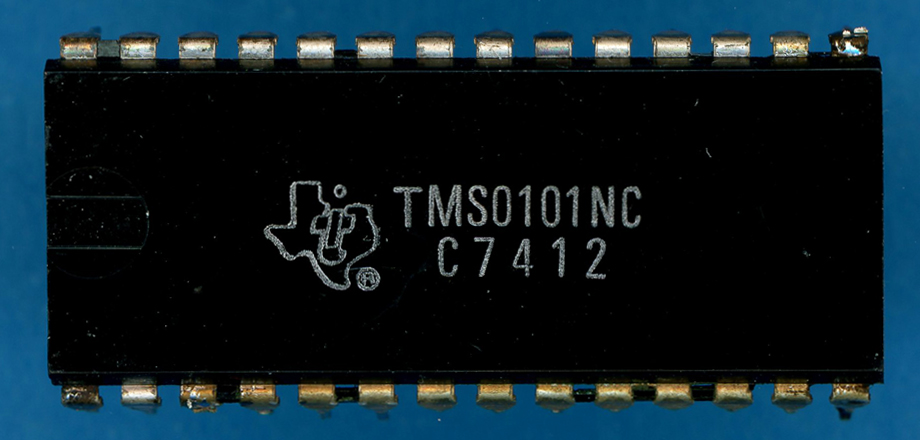

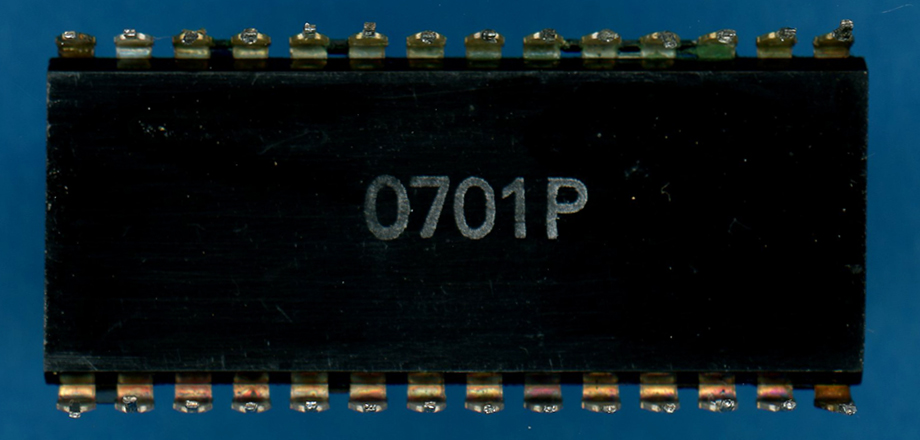

Close-up view
of the TMS0101 single-chip calculator circuit.![]() ![]() |
||

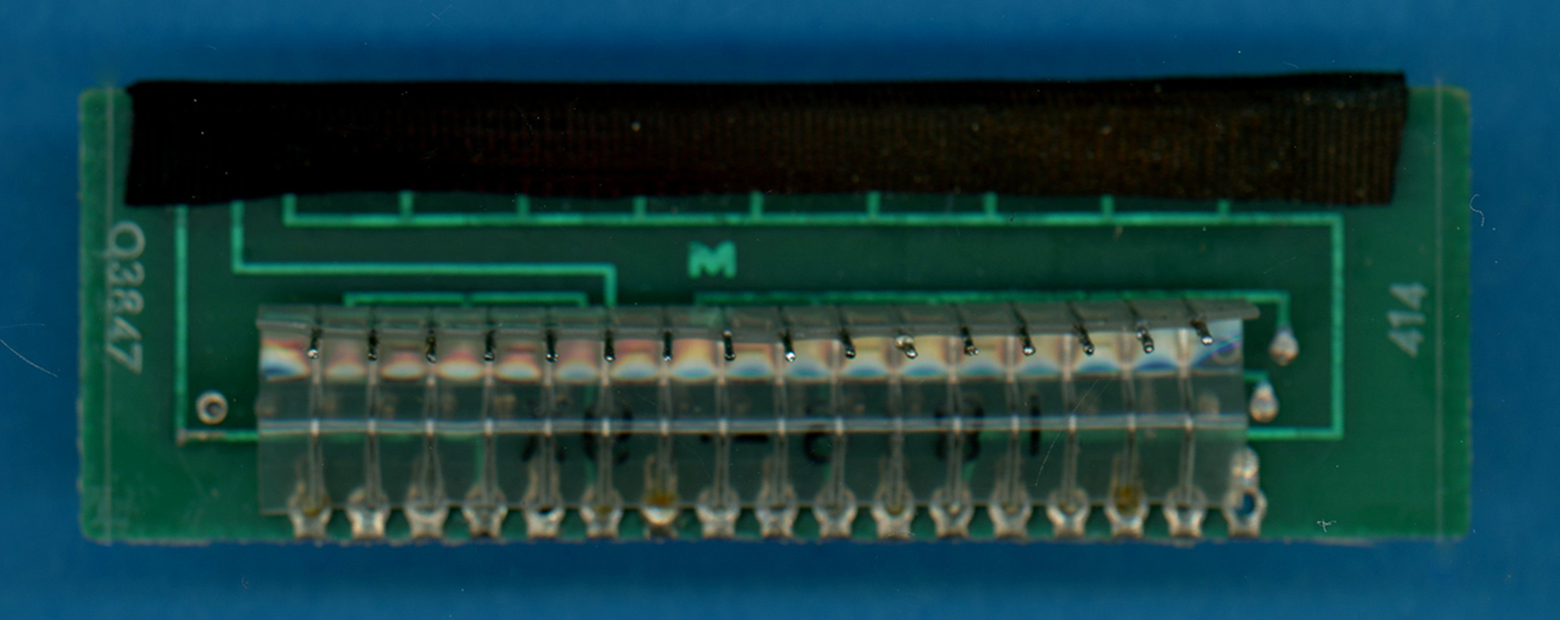

Close-up view of the
Monsanto MAN-3A/8 LED display module.![]() ![]() |
||

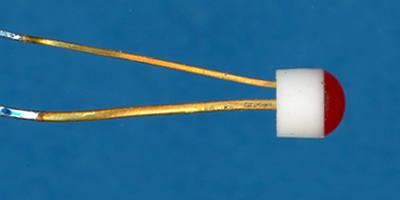

Close-up view of the minus "dot" LED. ![]() |
Close-up view of the 82 Ohm Segment resistor. ![]() |

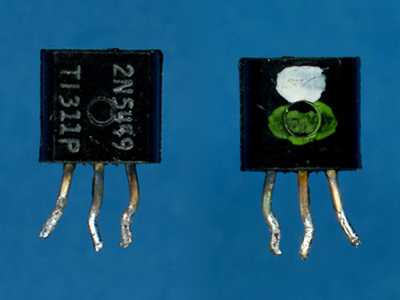

Close-up view of the 2N5449 Digit transistor. ![]() |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, September 11, 2024. No reprints without written permission.
