This Canon LE-83 (Version
3) was
manufactured in January 1974 by Canon in Japan. |

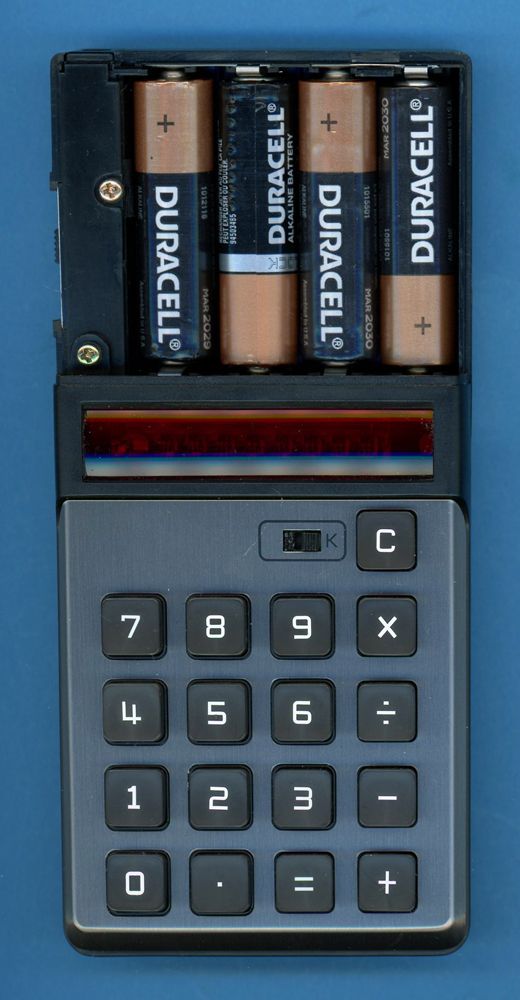

The Canon LE-83 is powered by a
four disposable 1.5 Volt batteries. |

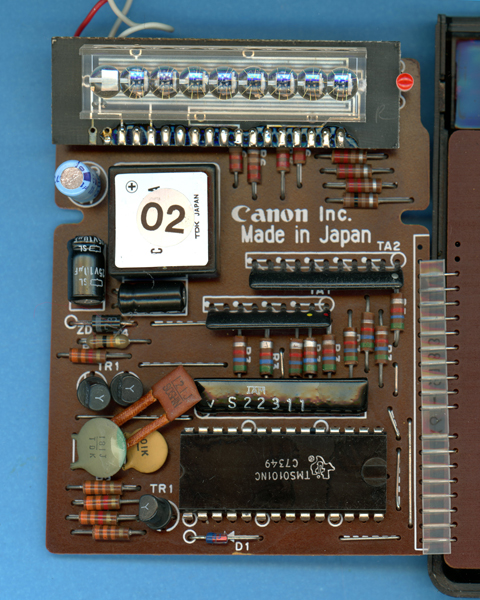

| The printed circuit board
(PCB) of the Canon LE-83 is centered around a
TMS0101 single-chip calculator circuit and supported by two display drivers hybrid circuits.  |

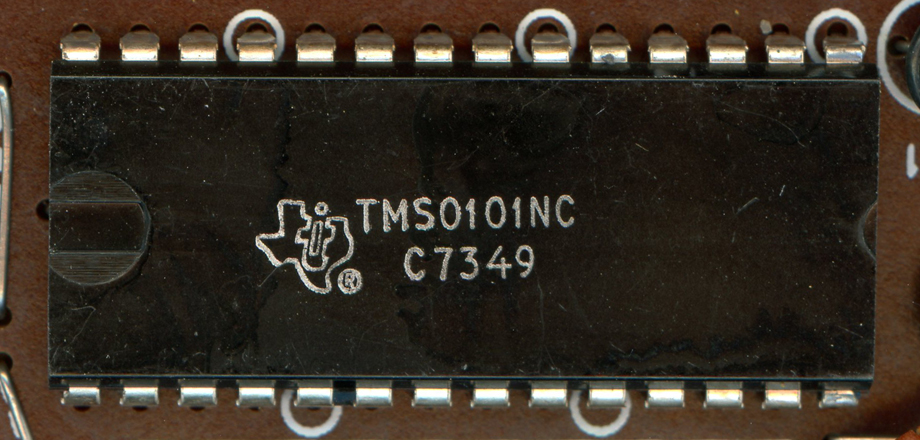

Close-up view
of the TMS0101 single-chip calculator circuit. |

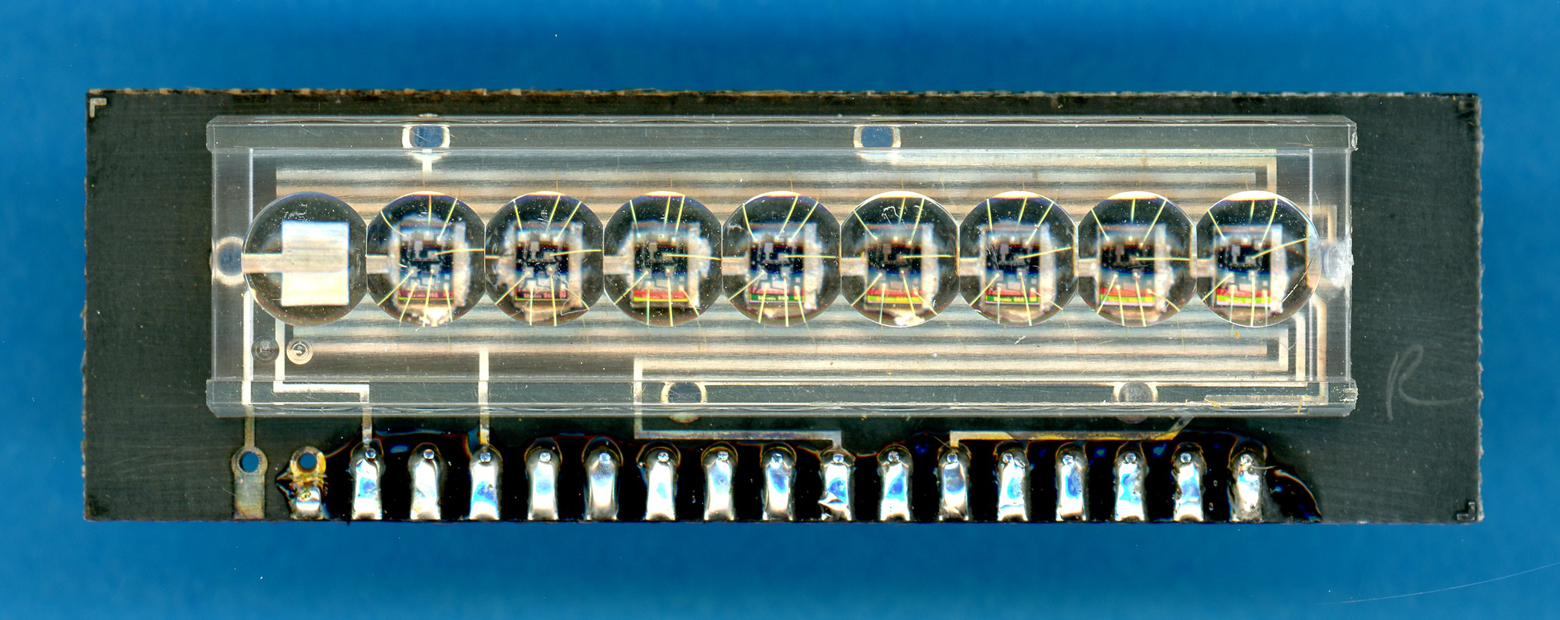

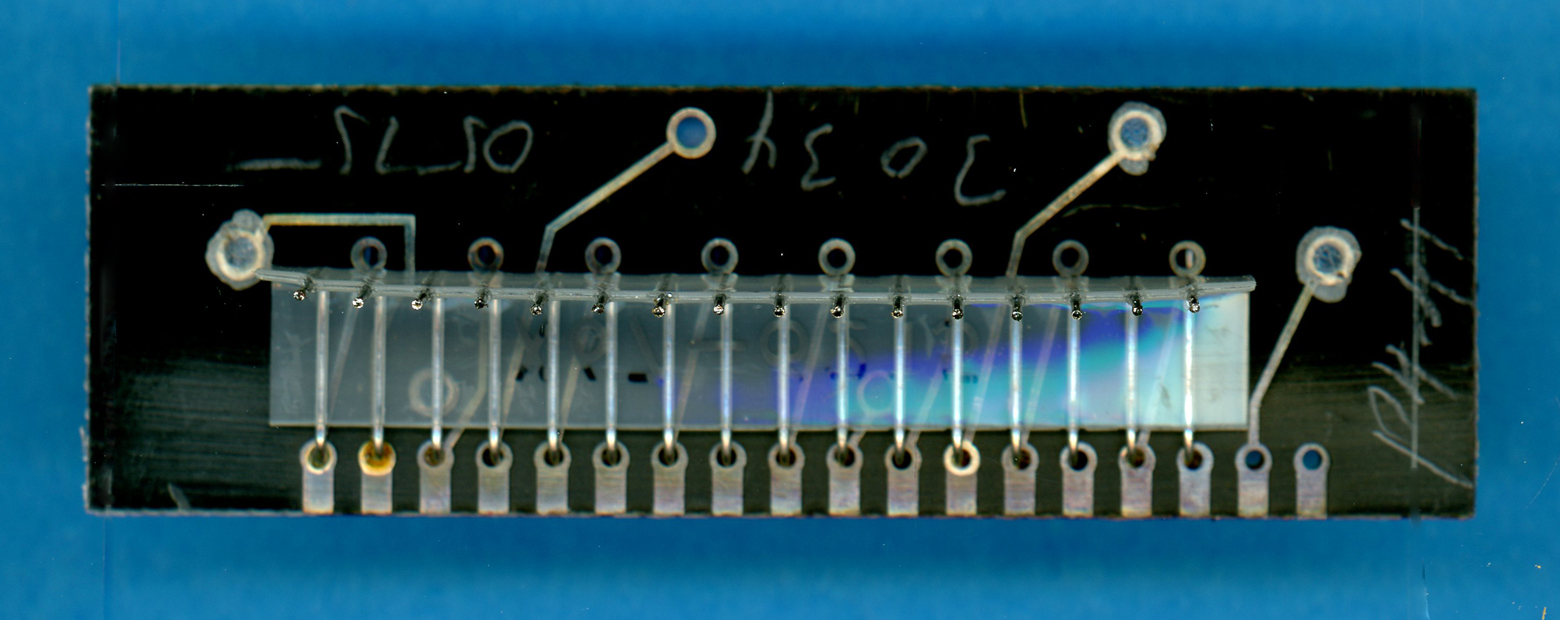

Close-up view of the
Litronix D-3034/8 LED display module.  |
