Additional Pictures

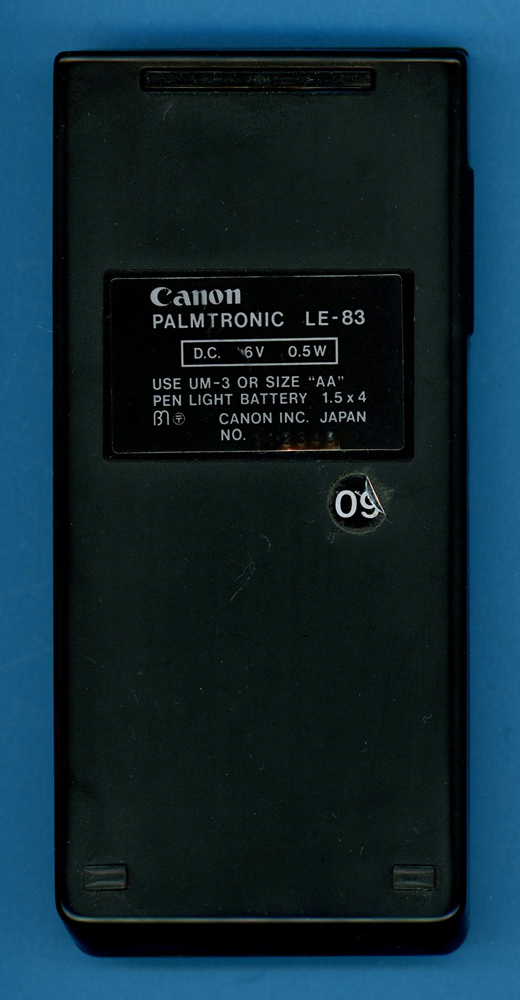

This Canon LE-83 Panther was
manufactured in March 1974 by Canon in Japan. |

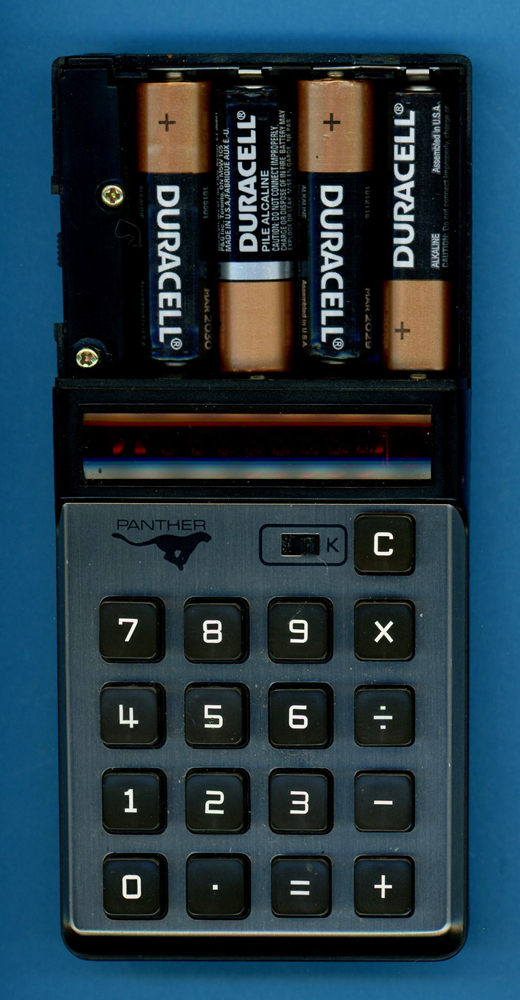

The Canon LE-83 Panther is powered by a
four disposable 1.5 Volt batteries. |

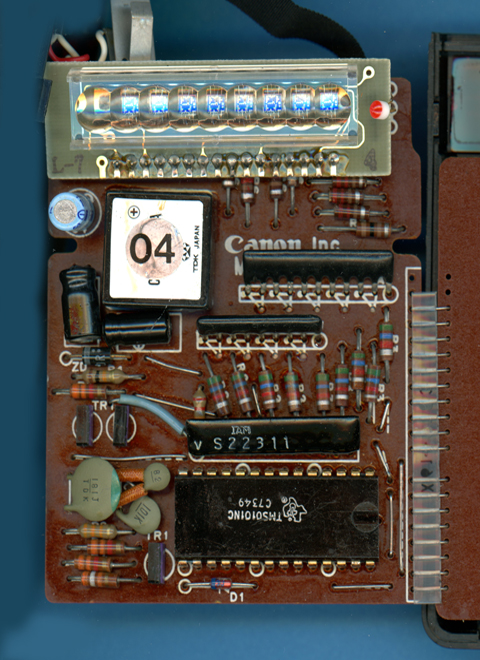

| The printed circuit board
(PCB) of the Canon LE-83 Panther is centered around a
TMS0101 single-chip calculator circuit and supported by two display drivers hybrid circuits.  |

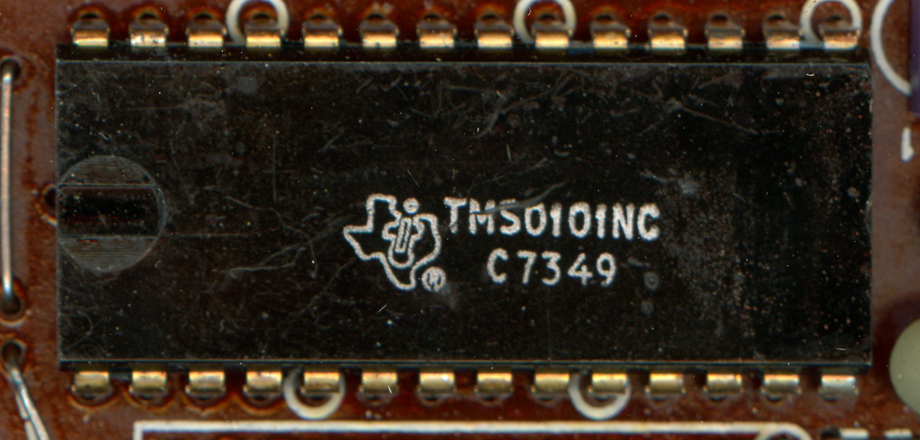

Close-up view
of the TMS0101 single-chip calculator circuit. |

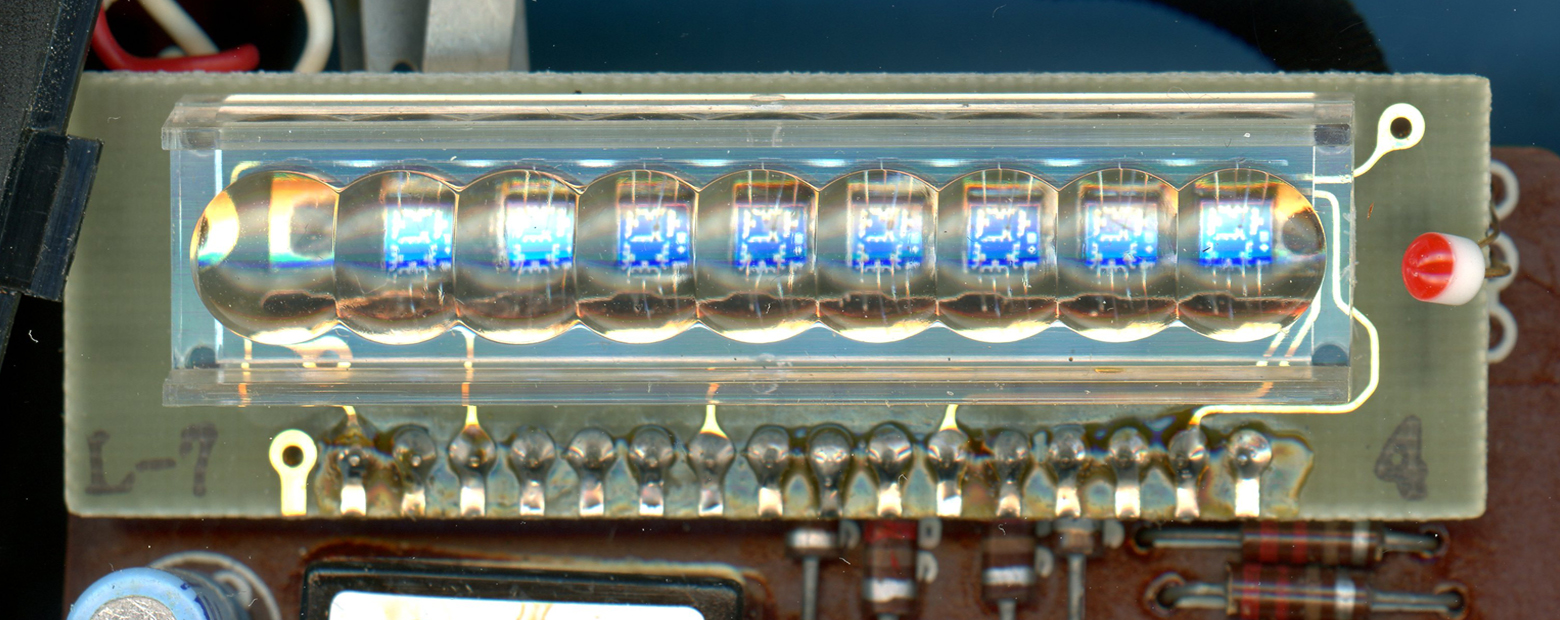

Close-up view of the
ROHM LAB-B-2/8 LED display module. |
