This Canon LE-84
(Version 2) was manufactured
in April 1974 in Japan. |

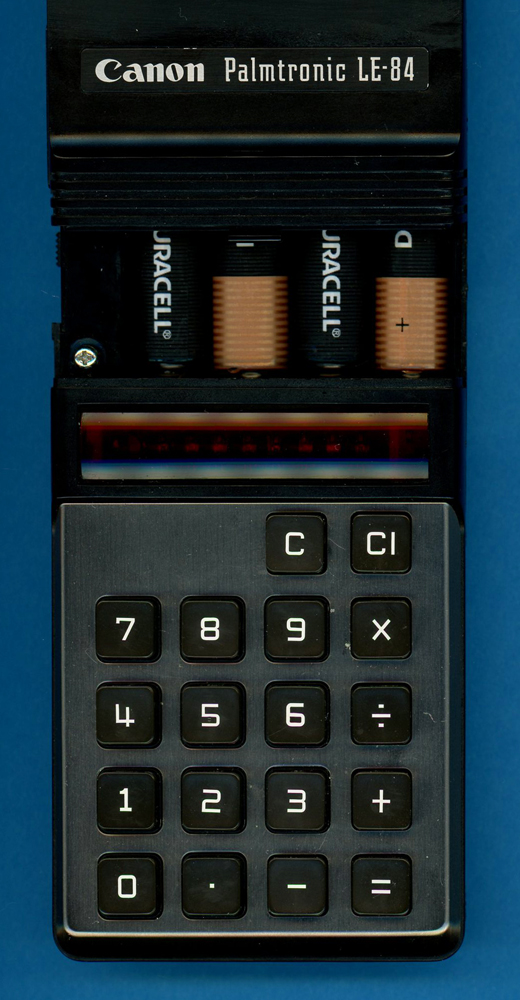

The Canon LE-84 is powered by a
four disposable 1.5 Volt batteries. |

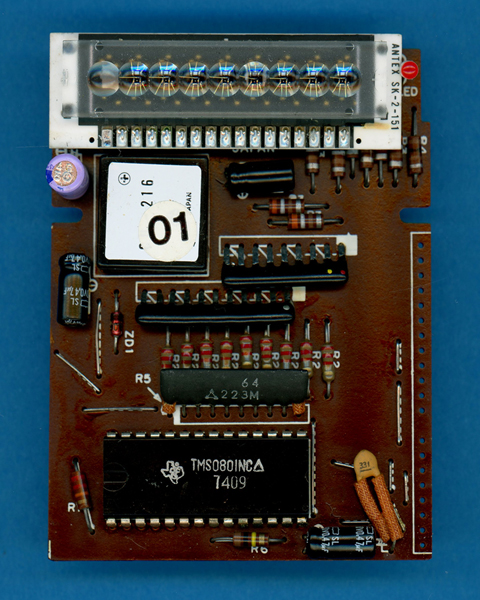

| The printed circuit board
(PCB) of the Canon LE-84 is centered around a
TMS0801 single-chip calculator circuit and supported by two display drivers hybrid circuits.  |
Close-up view

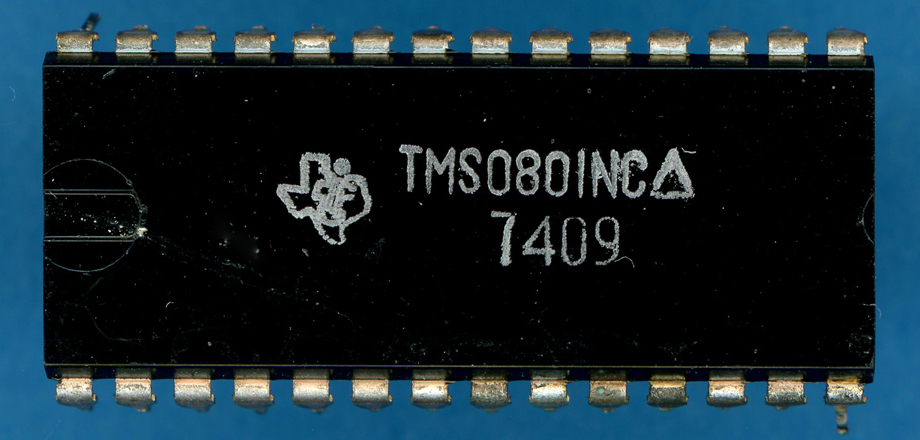

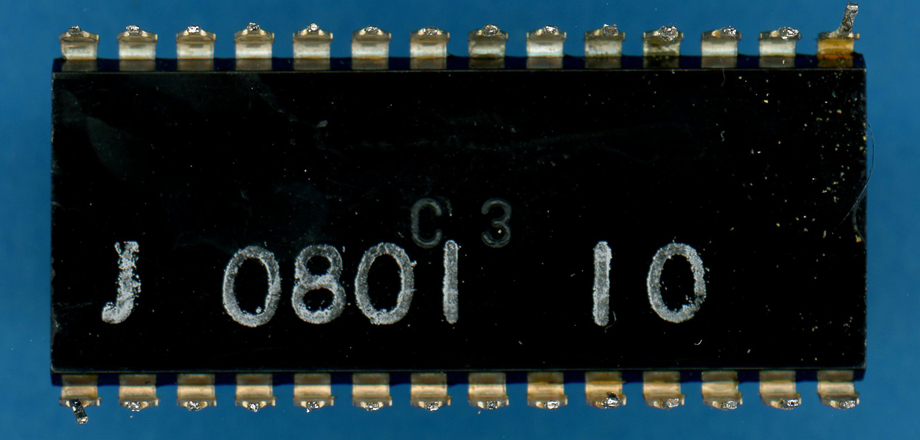

of the TMS0801 single-chip calculator circuit.  |

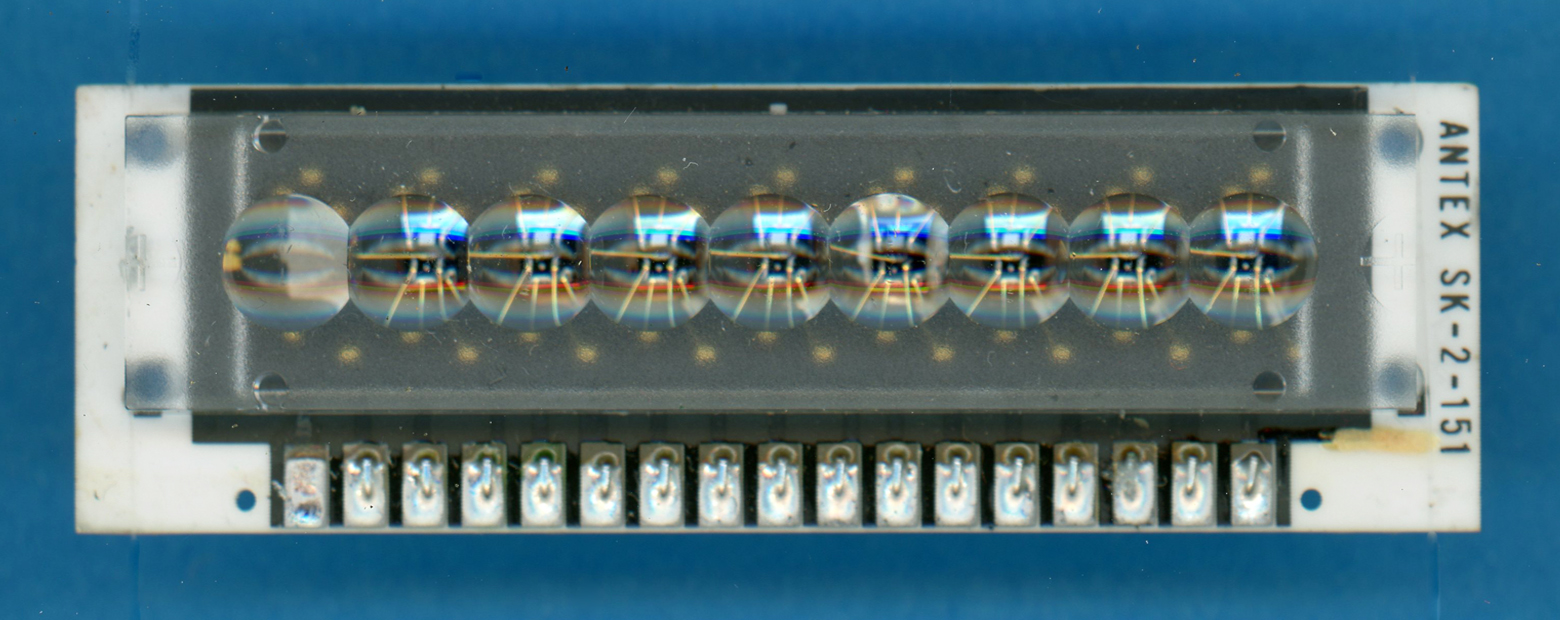

Close-up view of the
ANTEX SK-2-151 LED display module.  |
If you have additions to the above article please email: joerg@datamath.org.
