Additional Pictures
The Casio FX-702P Pocket Computer mounted on the FA-2
Cassette Interface and next to a FP-20 Mini Printer. |
|
This Casio FP-10 Mini Printer was manufactured in November 1981 by Casio Computer in Japan.
|

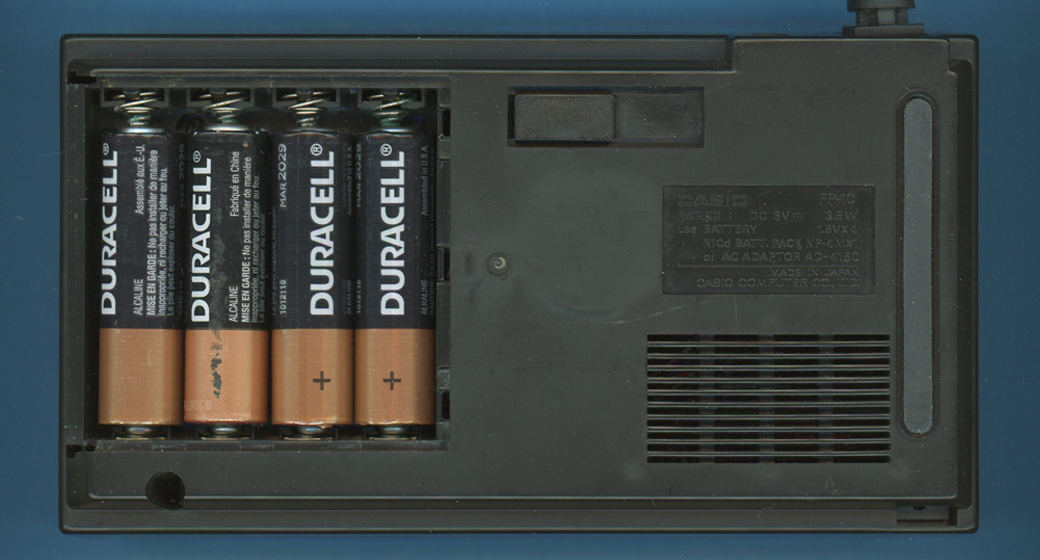

The Casio FP-10 Mini Printer is powered by
four AA-sized batteries. |

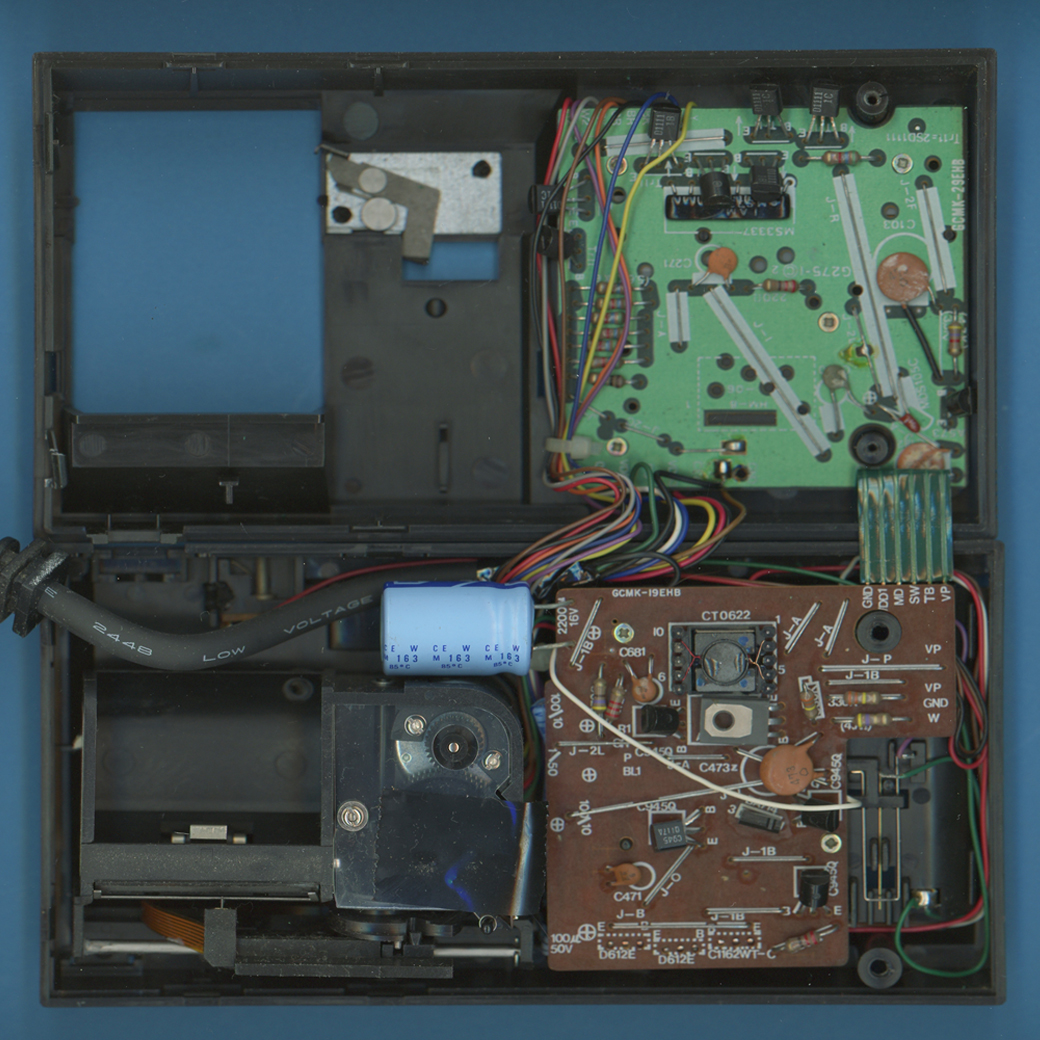

| The two printed circuit boards
(PCBs) of the Casio FP-10 are mounted in a clamshell
design with the "power electronics" close to the spark printer.
|

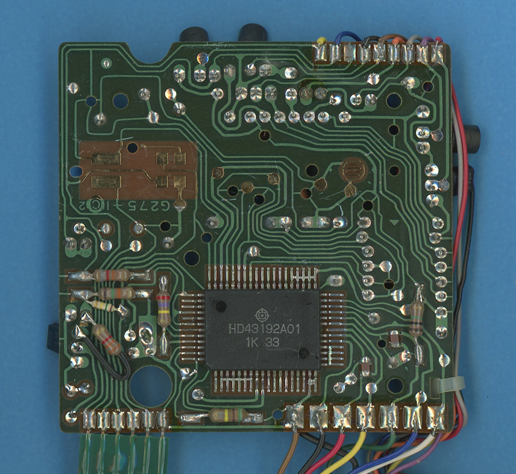

The brain of the FP-10 Mini Printer
is centered around a Hitachi HD43192A 4-bit microcontroller. |

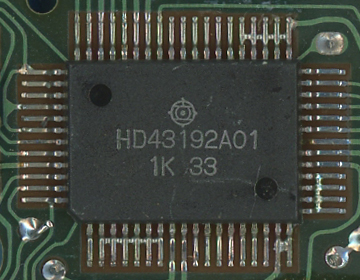

| Close-up
view of the HD43192A microcontroller.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, January 5, 2021. No reprints without written permission.
