Additional Pictures
This Casio FX-702P Pocket Computer was manufactured in January 1982 by Casio Computer in Japan. |

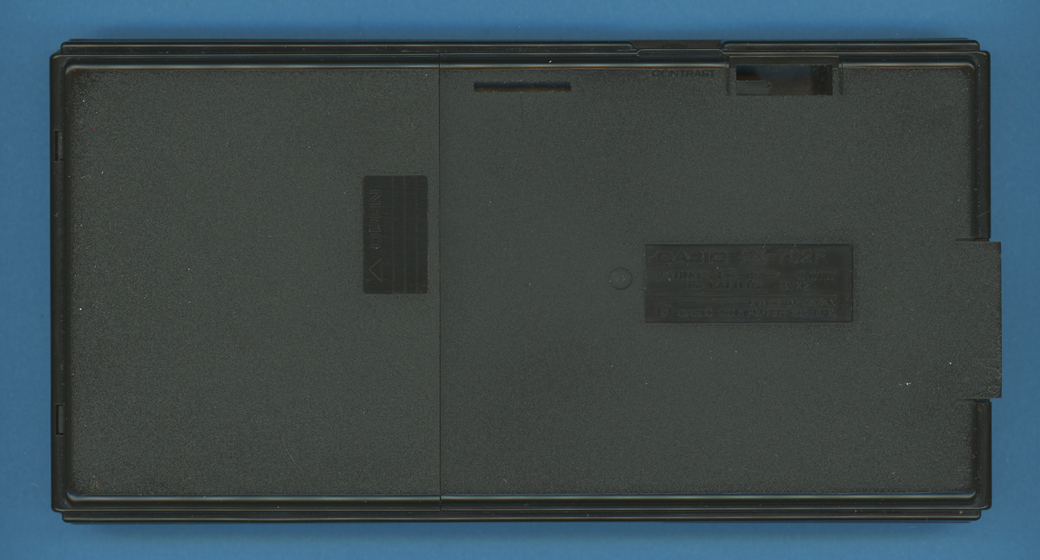

The Casio FX-702P Pocket Computer features an internal
expansion slot for a memory cartridge and is powered by two CR2032
batteries. |

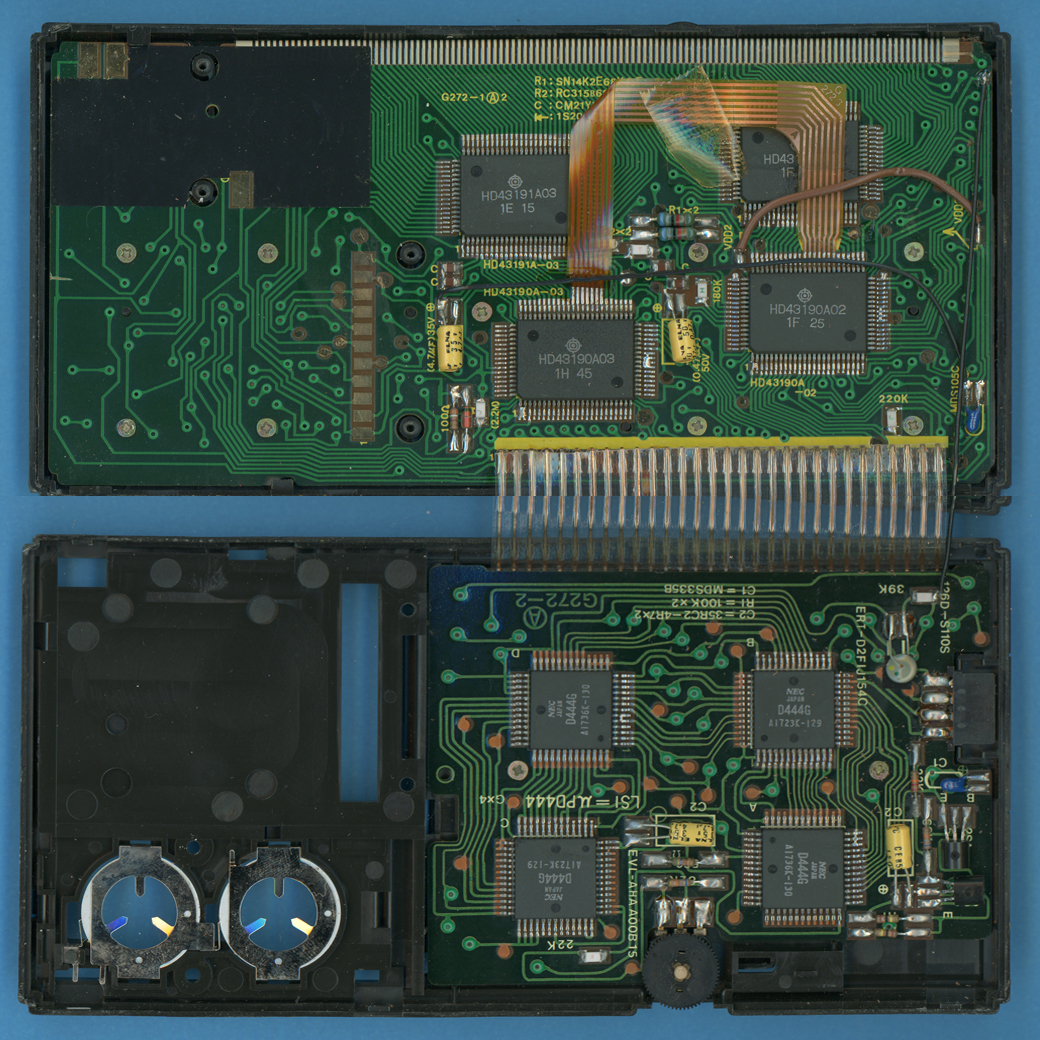

The two printed circuit boards
(PCBs) of the Casio FX-702P are mounted in a clamshell
design, the electronics is centered around two Hitachi HD43190A 4-bit microcontrollers, two Hitachi HD43191 display controllers and 4 NEC uPD444G RAMs.
|

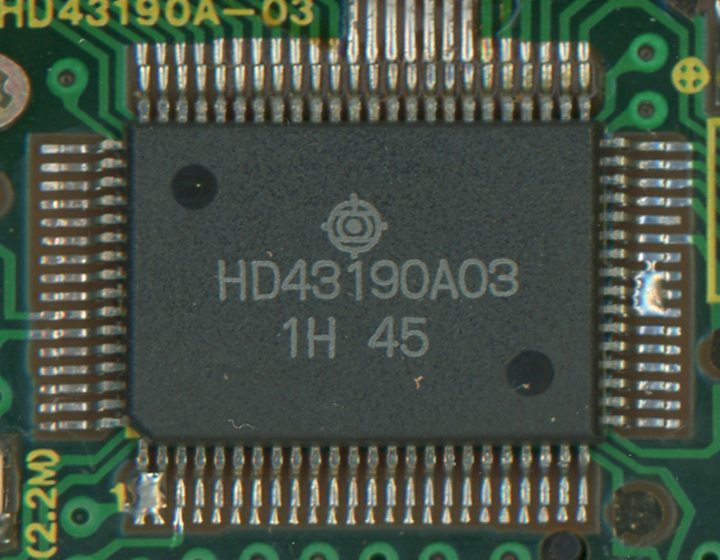

Close-up view of one of the two HD43190A microcontrollers. |

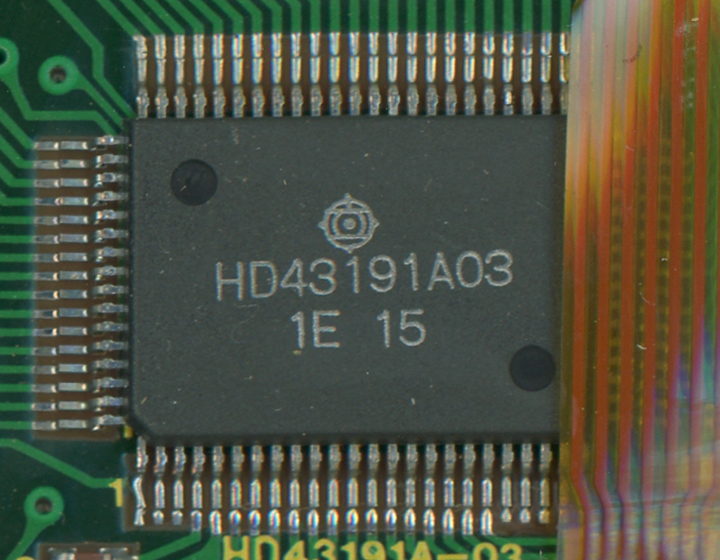

Close-up view of one of the two HD43191A display controllers. |

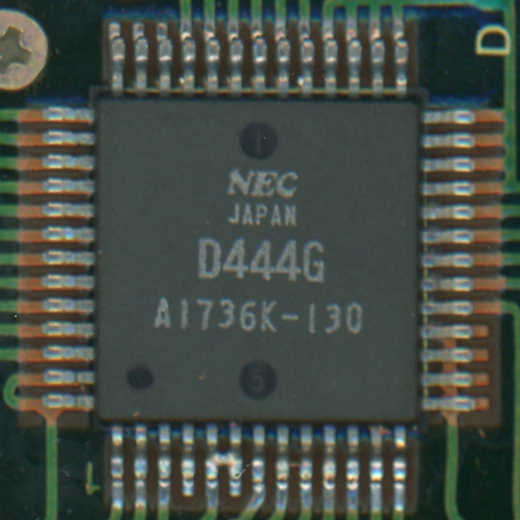

Close-up view of one of the four uPD444G RAMs. |
