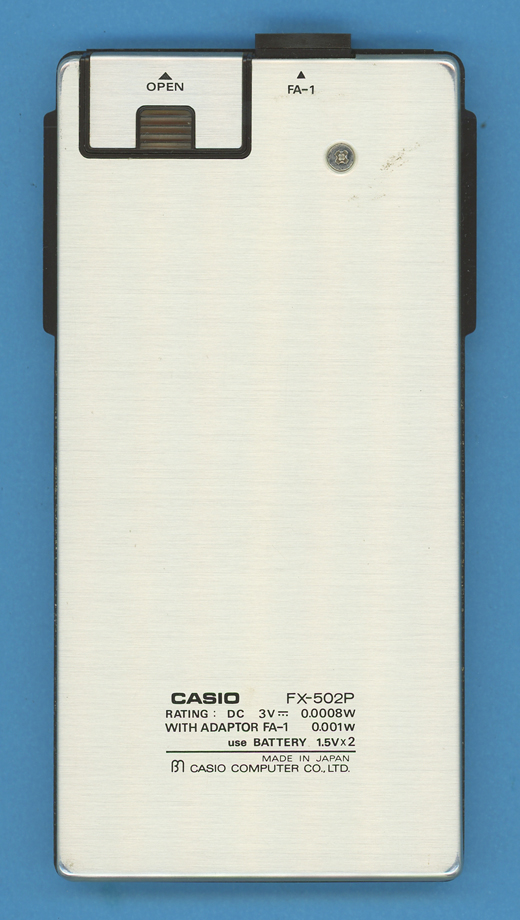

This Casio FX-502P was manufactured in February 1980 by Casio Computers in Japan. | |

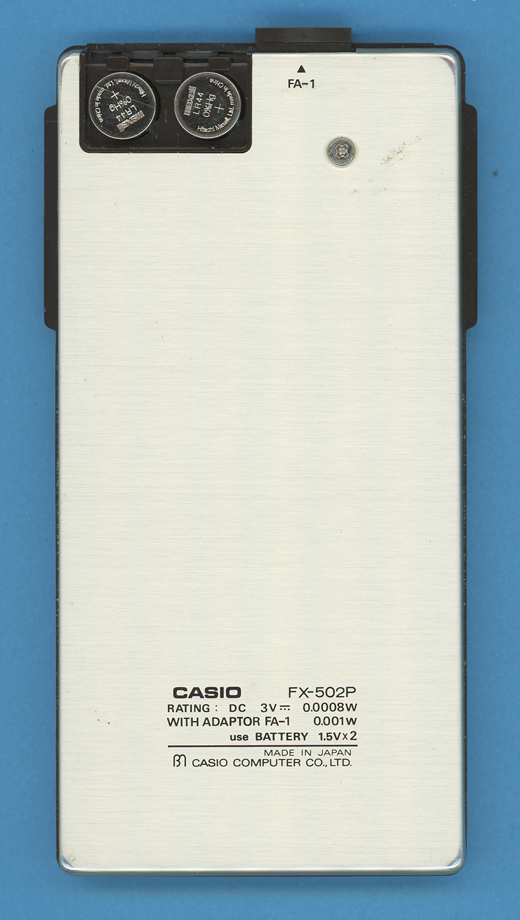

The Casio
FX-502P is powered by two small LR44 batteries. |
|

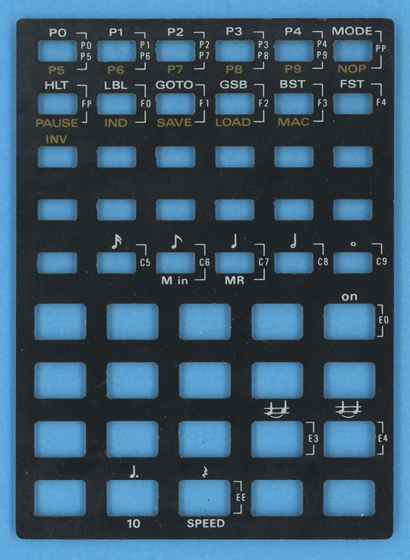

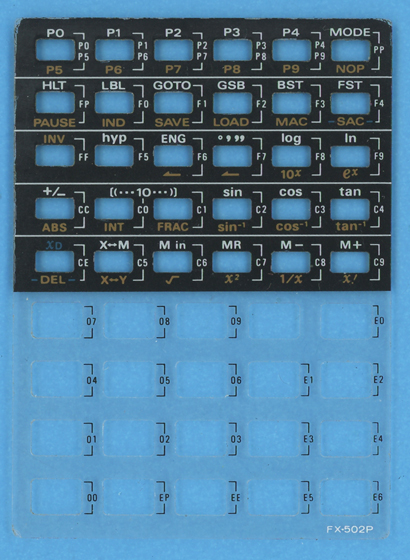

The first keyboard overlay included with the FX-502P. | The second keyboard overlay included with the FX-502P. |

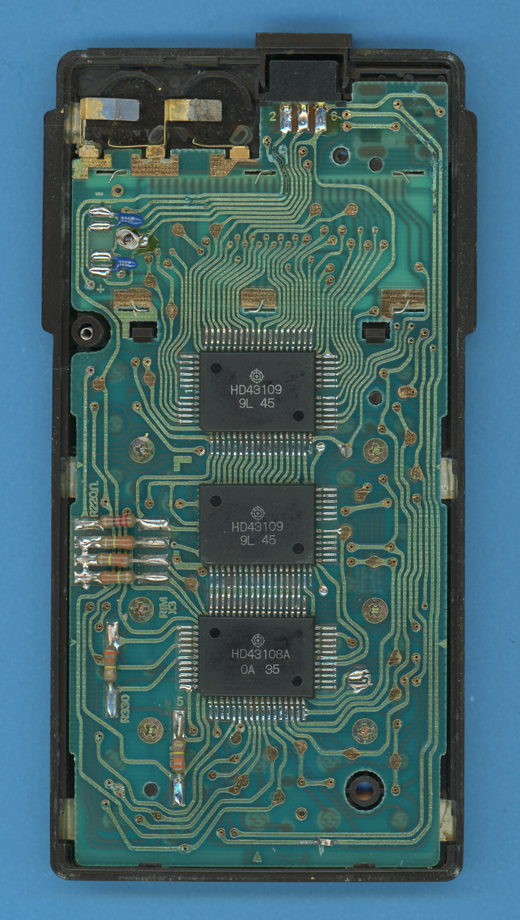

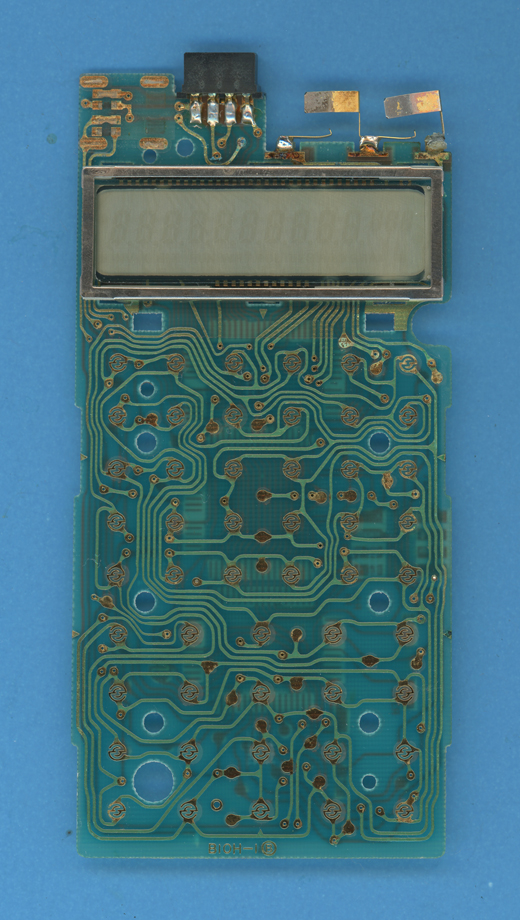

The printed
circuit board (PCB) of the FX-502P is centered around
a Hitachi HD43108A 4-bit microcontroller and two HD43109 chips including User Memory and Display Drivers. |
|

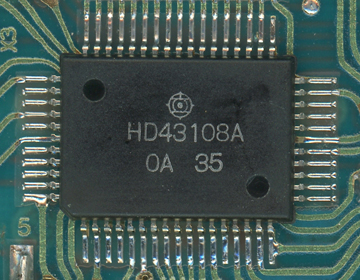

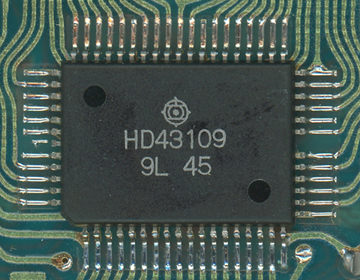

Close-up view of the HD43108A microcontroller. | Close-up view of the HD43109 RAM / Display Driver chip. |
