 The graphics display of the Casio fx-7000G in the character mode
with 8 lines of 16 characters each. The matrix is 63*95 dots.

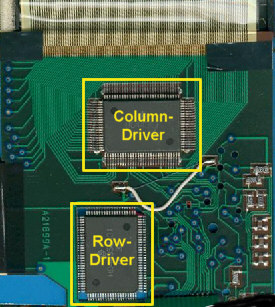

The Casio fx-7000G uses two printed circuit
boards (PCB's), one is mainly used with the
display drivers.

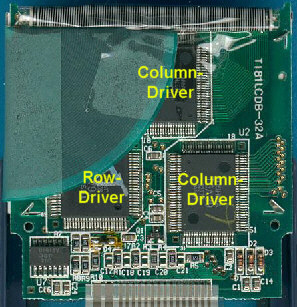

The TI-81 with a similiar internal
construction placed all display
drivers on the smaller PCB.

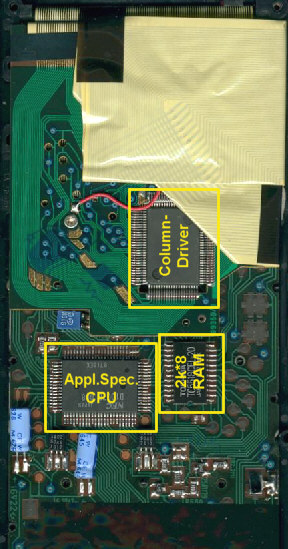

 The main printed circuit board (PCB) of the
Casio fx-7000G with an application
specific CPU and an additional RAM.

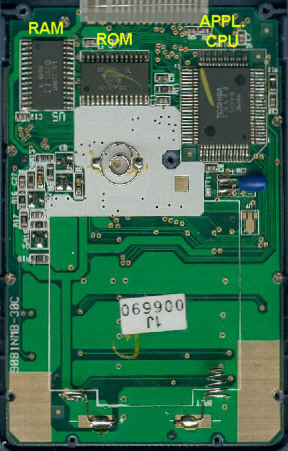

The TI-81 introduced almost 5 years
after the Casio fx-7000G with an almost
identical architecture.
