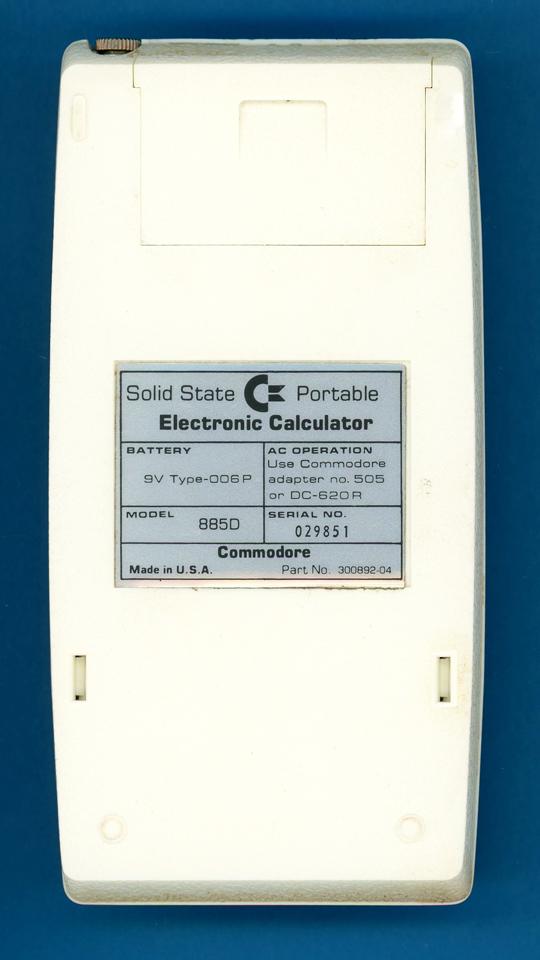

This Commodore 885D
was manufactured
in September 1974 in the United States. |

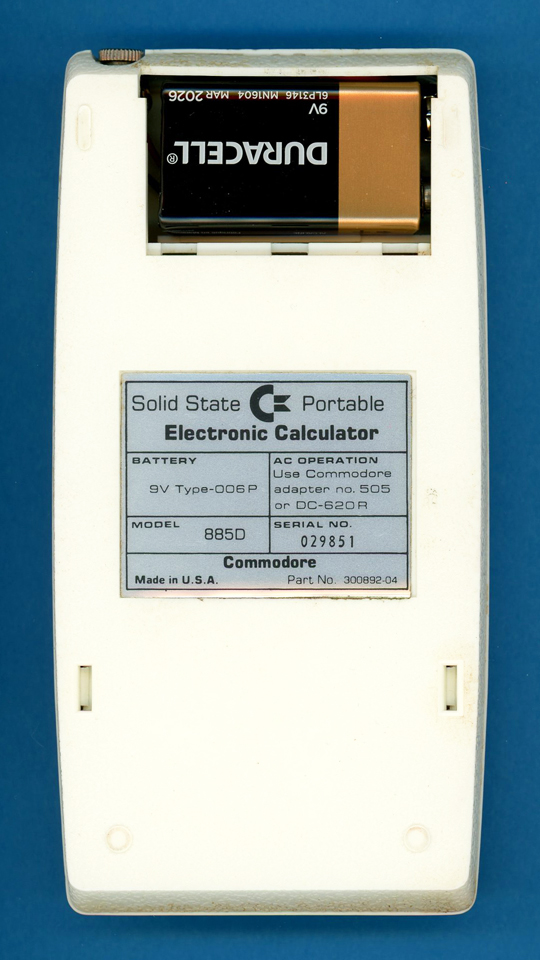

The Commodore 885D is
powered by a disposable 9 Volt battery. |

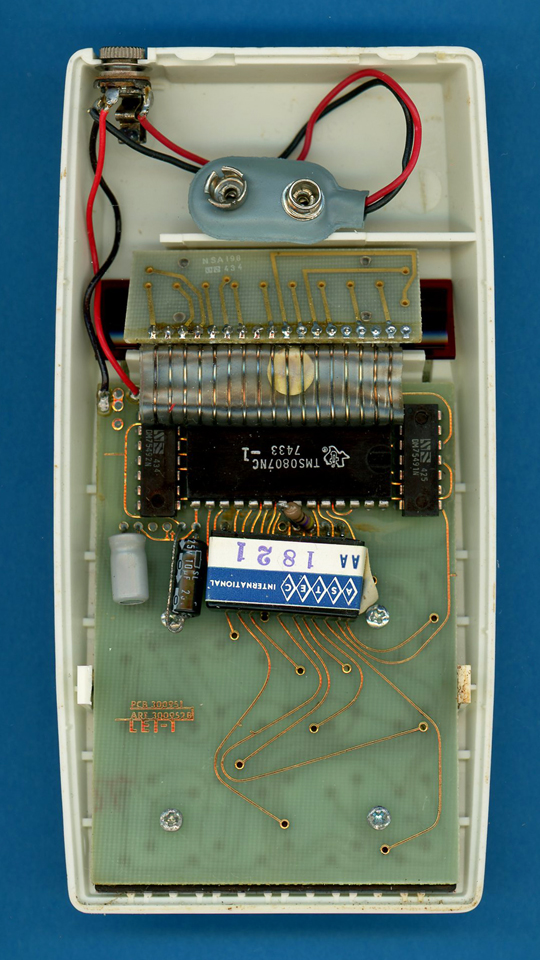

| The printed circuit board
(PCB) of the Commodore 885D is centered around a
TMS0807 single-chip calculator circuit and supported by two National Semiconductor DM75492 and DM75491 display drivers.  |

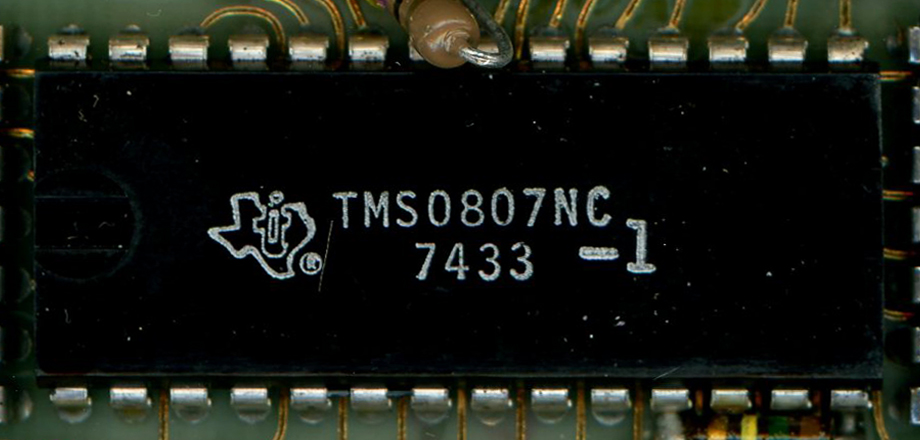

Close-up view
of the TMS0807 single-chip calculator circuit. |

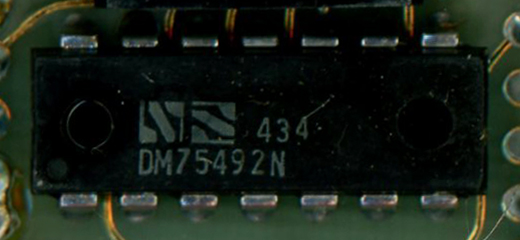

Close-up view
of the DM75492 display driver. |

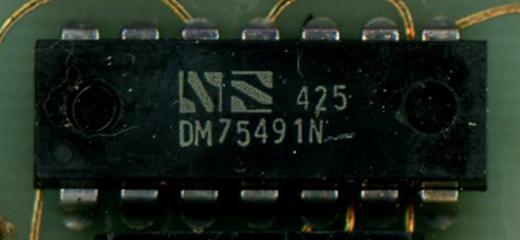

Close-up view
of the DM75491 display driver. |

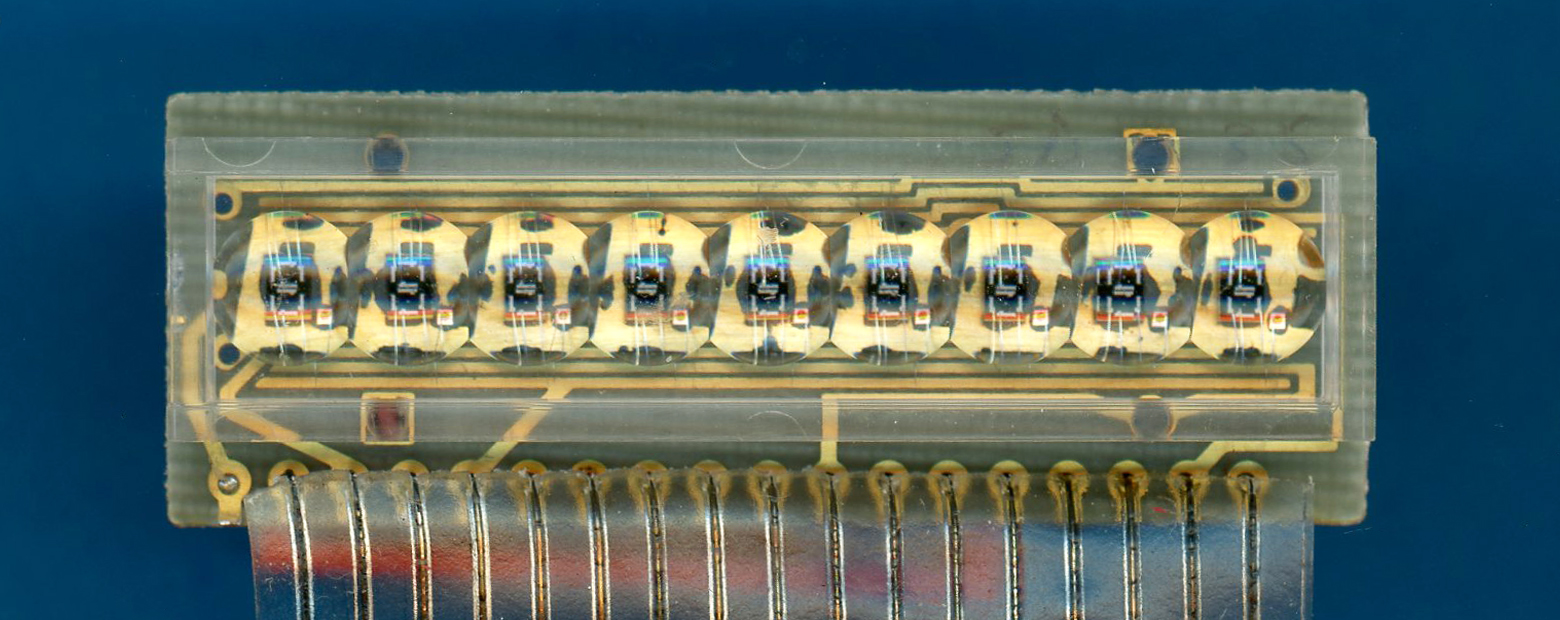

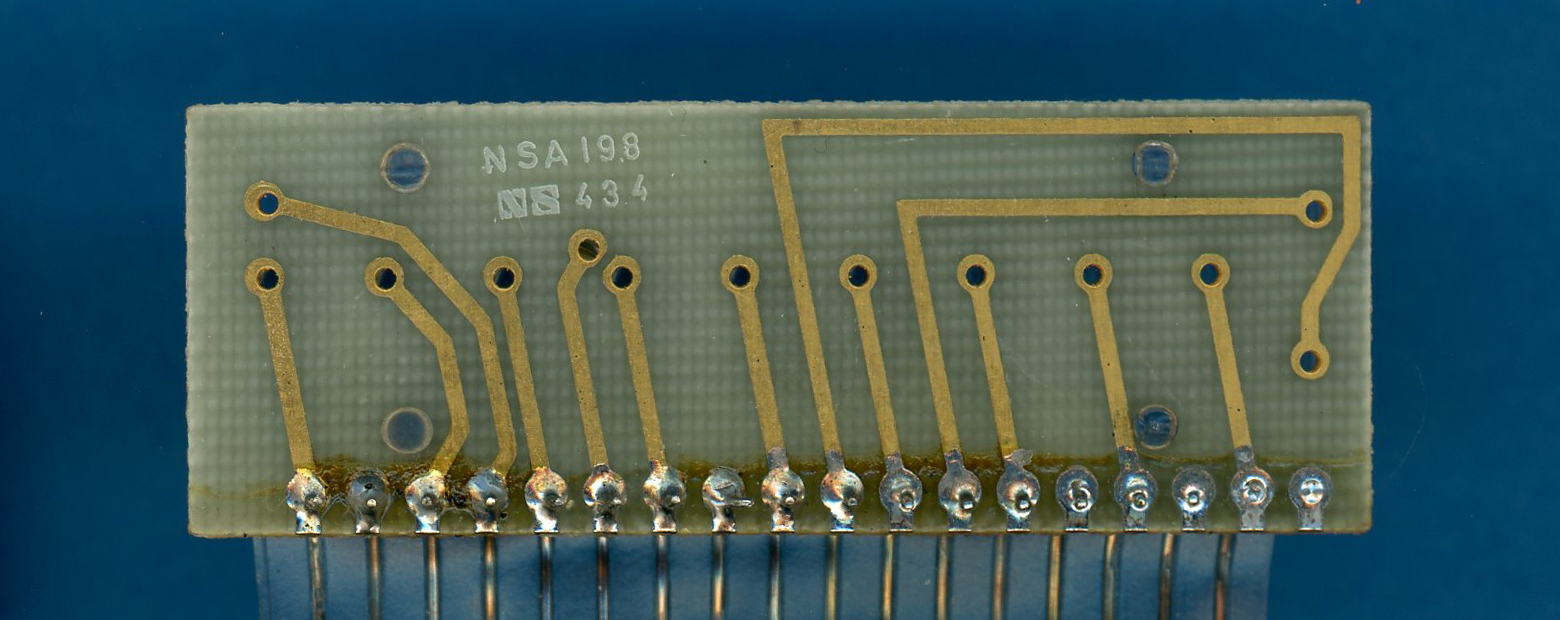

Close-up view
of the National Semiconductor NSA198 LED display module.  |
