Additional Pictures

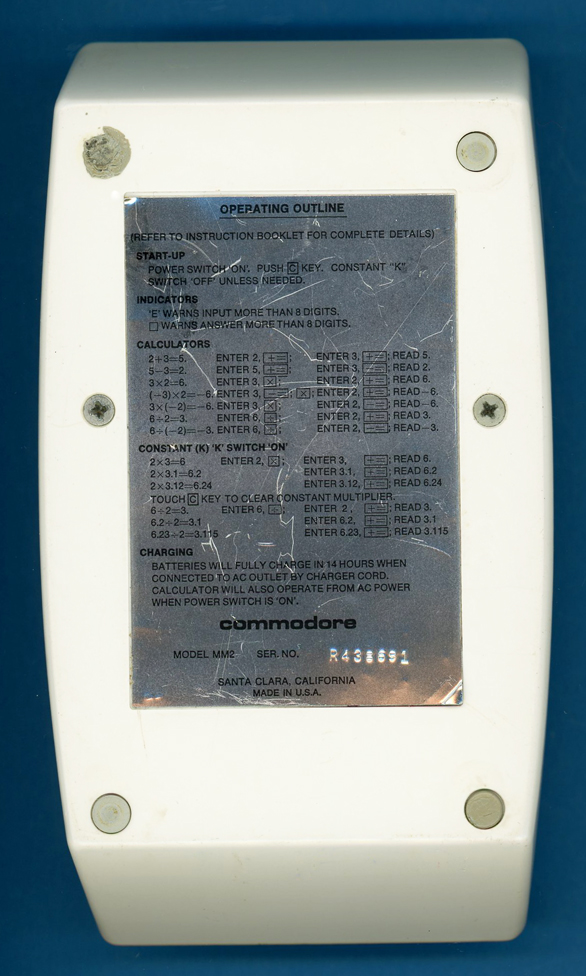

This Commodore Minuteman
2
(MM.2 Version 2) with Serial Number R438691 was manufactured
in September 1972. |

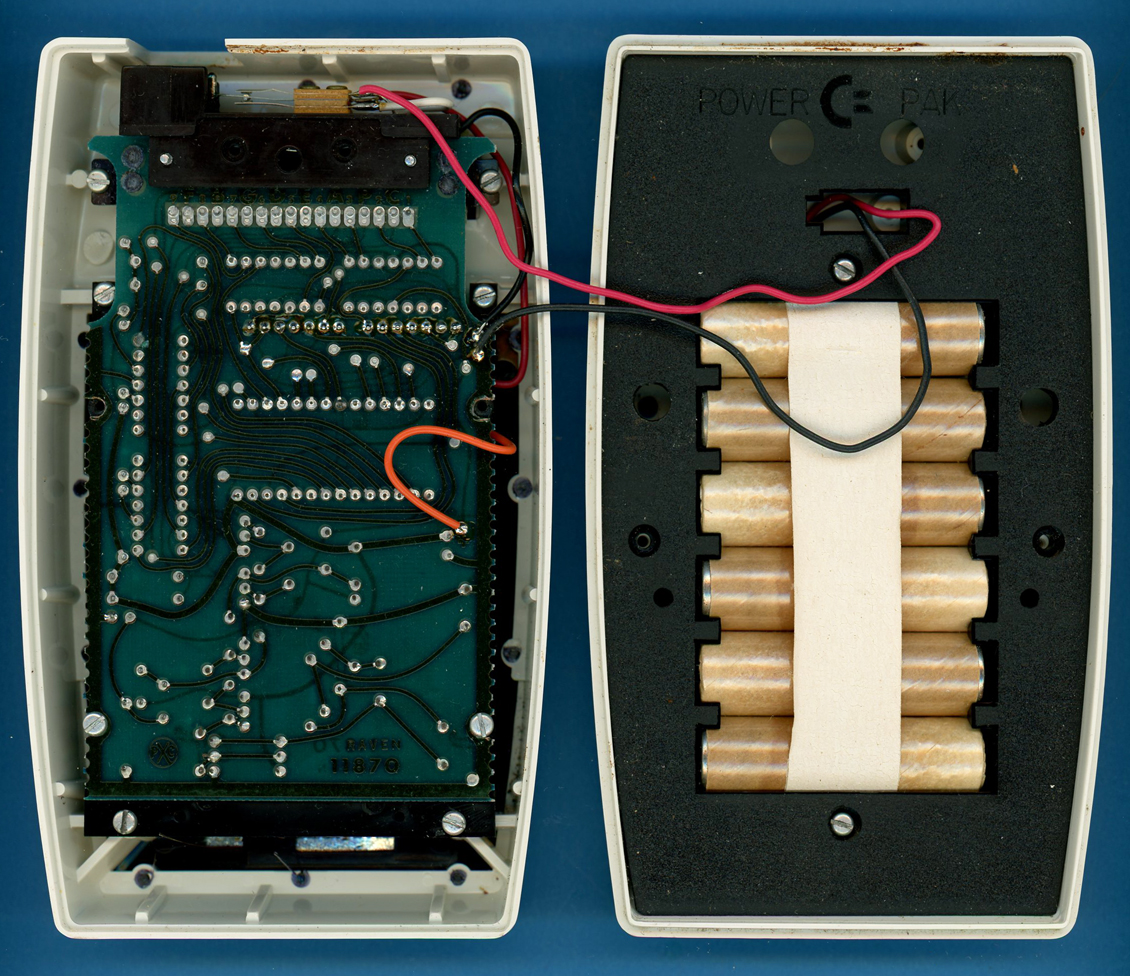

The
inside view of a Commodore MM.2 Version 2. |
Close-up view of the
RAVEN 11870 PCB-Mark. |

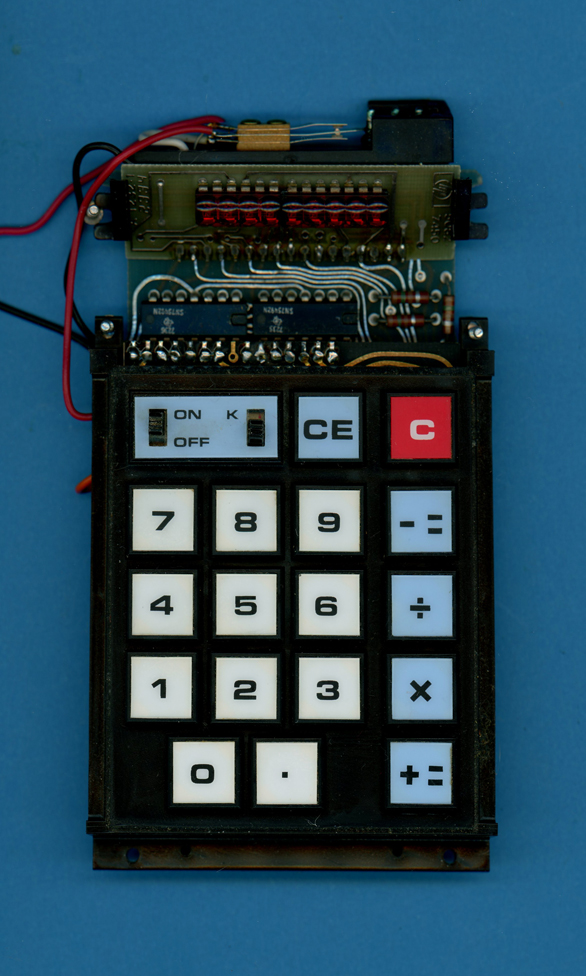

The printed circuit board
(PCB) of a Commodore MM.2 Version 2 manufactured in
September 1972. |

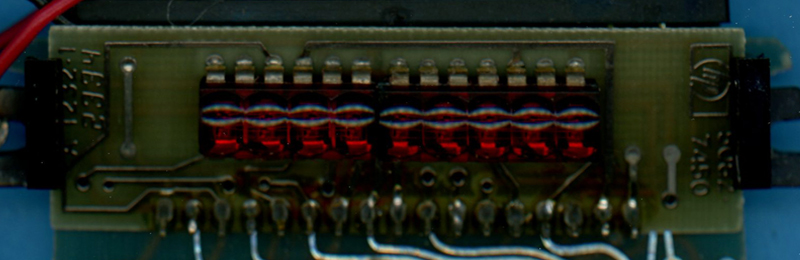

Close-up view of the
Display Module of a Commodore MM.2 Version 2
manufactured in September 1972. |

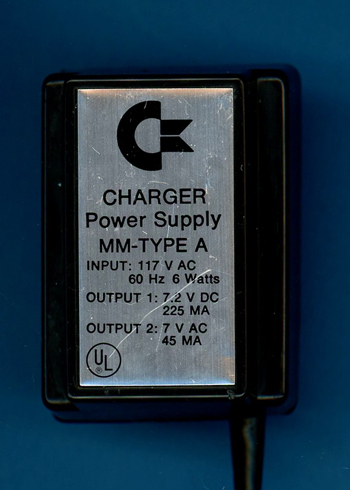

The MM-Type A
Charger Power Supply of the Commodore MM.2. |
