Additional Pictures

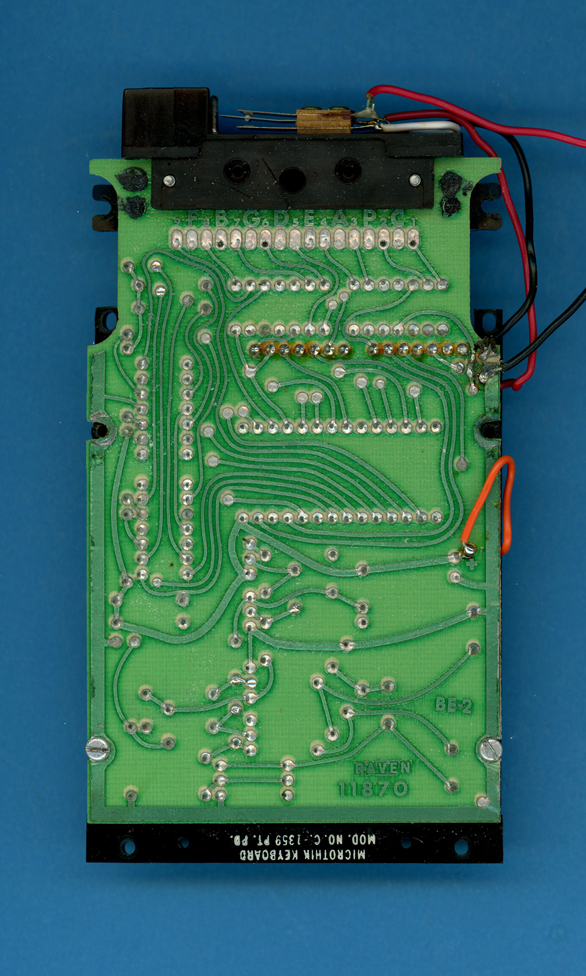

| The
backside of the printed circuit board (PCB) of a Commodore Minuteman 2
(MM.2 Version 2) with Serial Number R981008 was manufactured in May 1973.  |

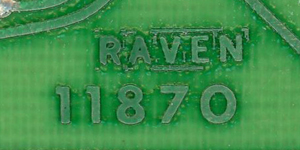

Close-up view of the
RAVEN 11870 PCB-Mark. |
The printed circuit board
(PCB) of a Commodore MM.2 Version 2 manufactured in
May 1973. |

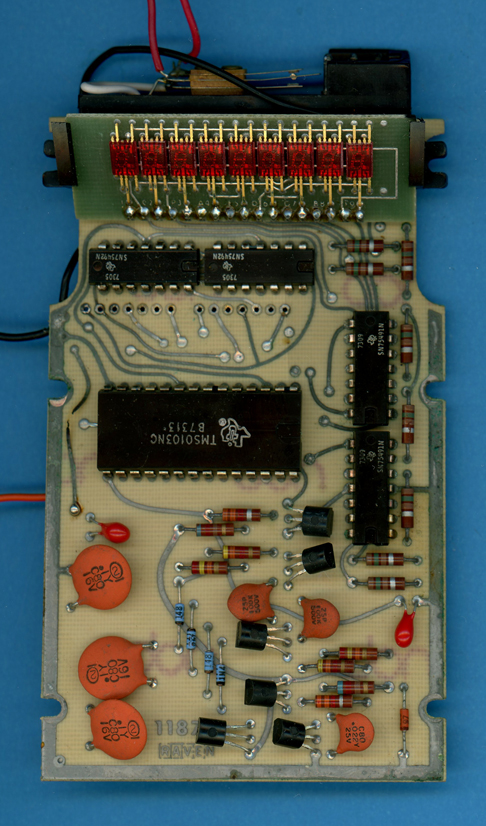

The PCB of a Commodore MM.2
Version 2
manufactured in May 1973 with the keyboard removed. |

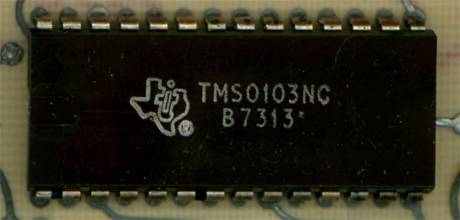

Close-up view of the
TMS0103 single-chip calculator circuit. |

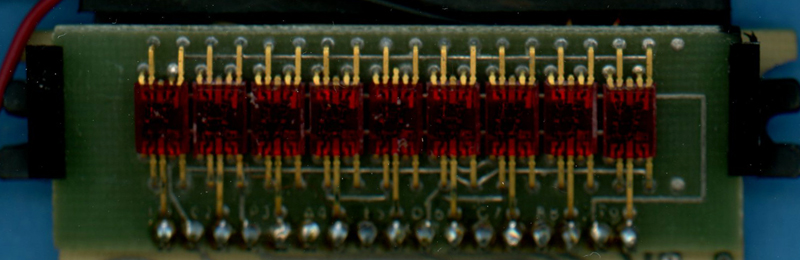

Close-up view of the
Display Module of a Commodore MM.2 Version 2
manufactured in May 1973. |
Close-up view of the
Monsanto MAN-3A 7-Segment LED Module showing the 4
small light bars per segment. |

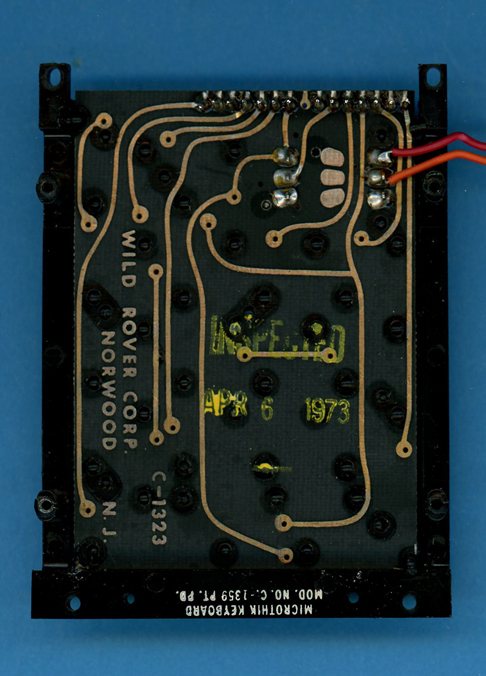

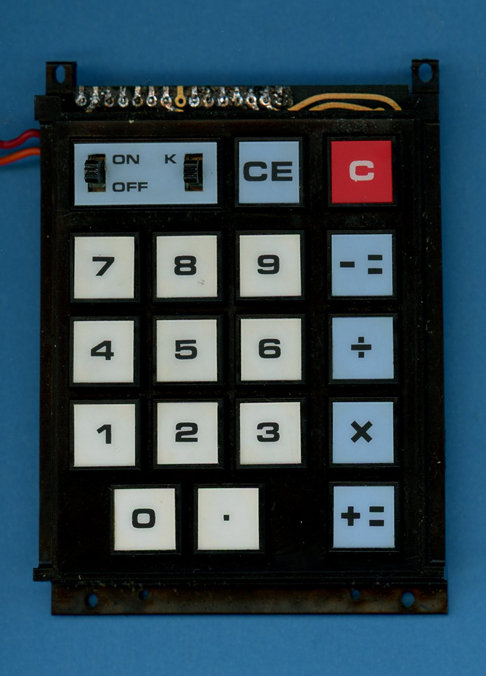

The
keyboard assembly of the Commodore MM.2 Version 2.
 |
