Additional Pictures

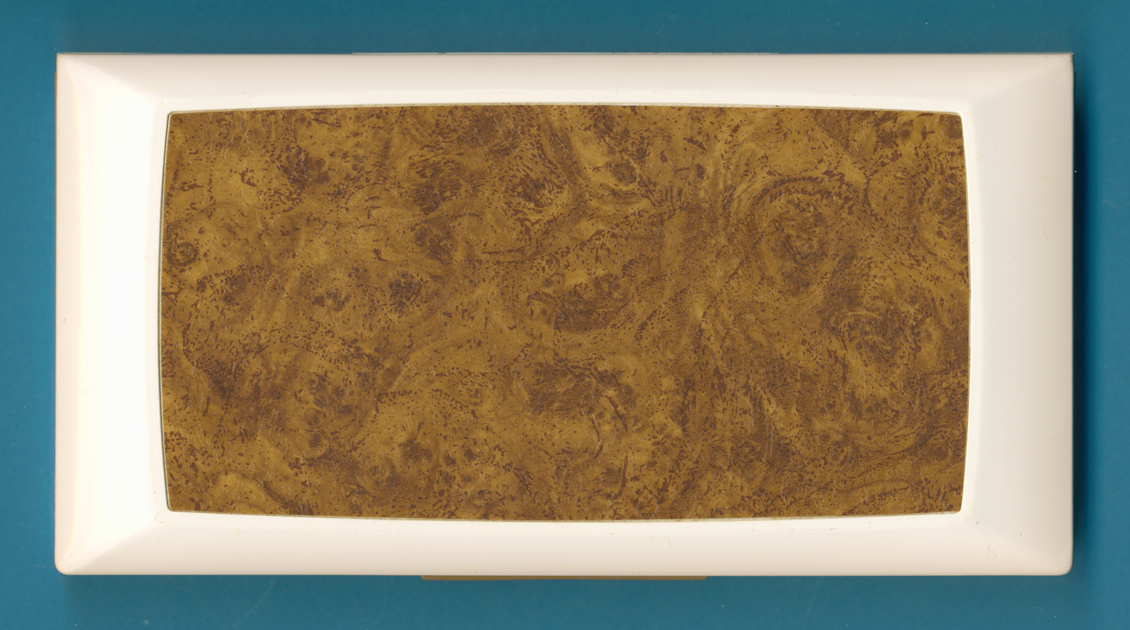

The CheckMaster fits
neatly into the pockets of a shirt.
|

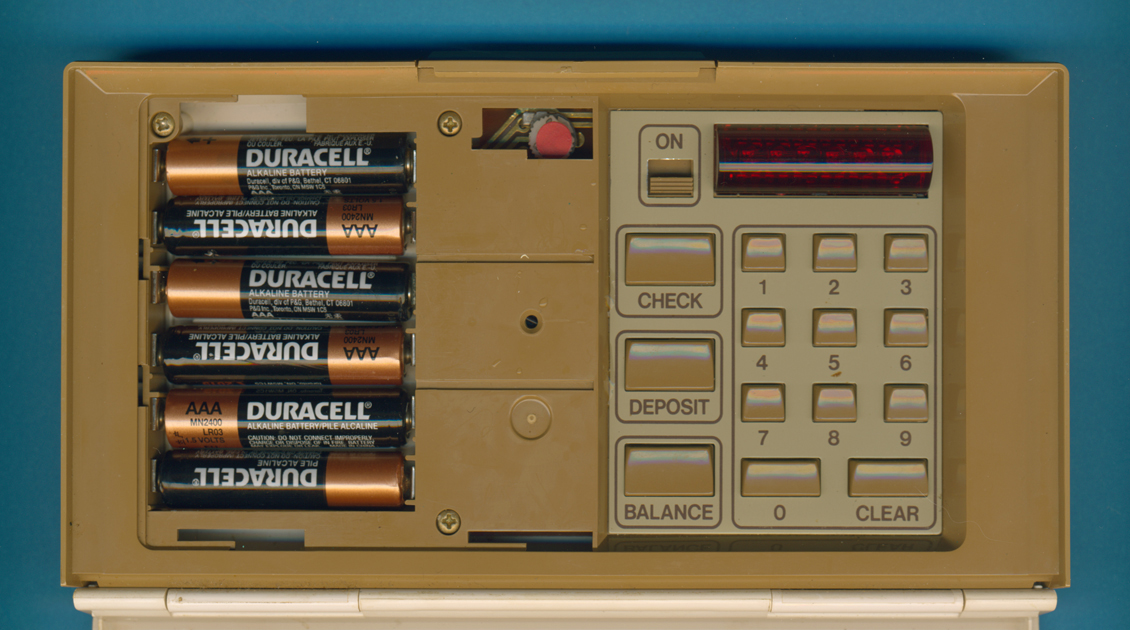

The CheckMaster is
powered by six AAA-size batteries. |

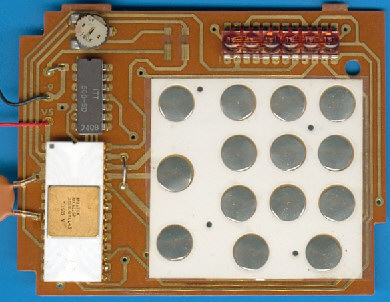

The printed circuit board
(PCB) of the CheckMaster makes us of a MK6225N single-chip calculator IC, a display driver, 6 digits of 7-segment LED's
and just 14 keys, Earlier versions used ceramic packages for the MK6225N.
|
