Additional Pictures

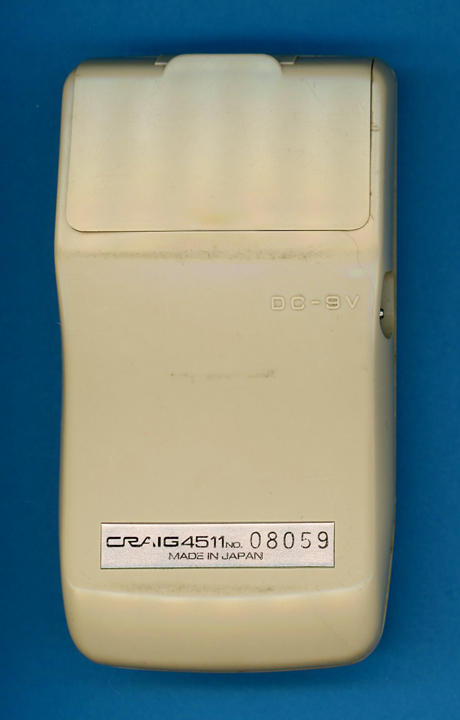

| This
Craig Model 4511
was
manufactured in Japan in December 1973.
|

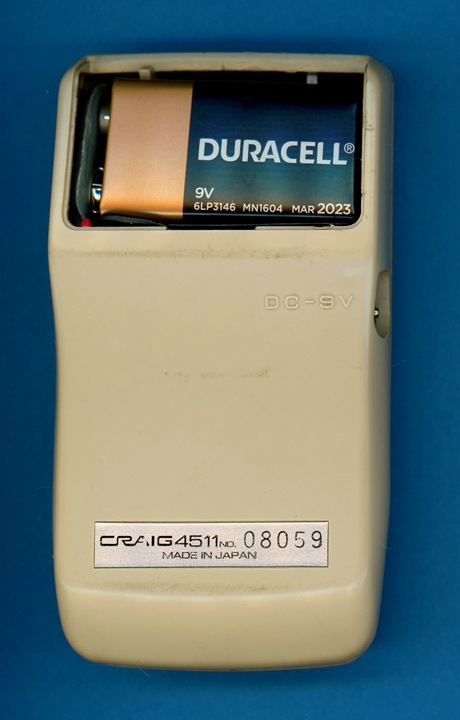

| The Craig Model 4511 calculator is
powered by a 9 Volt battery.
|

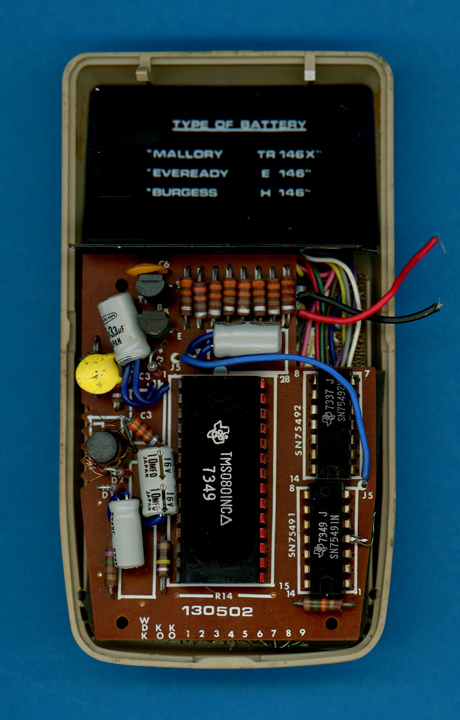

The Main-PCB of the
Craig Model 4511 is centered round a TMS0801 single-chip calculator
circuit. |

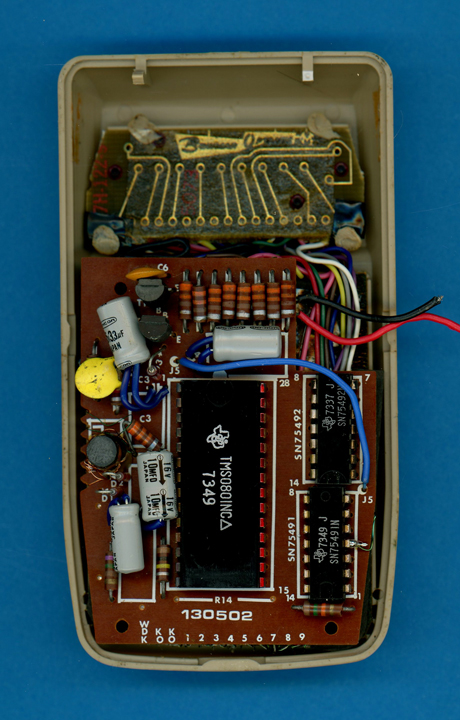

The Craig Model 4511 uses a modified
Bowmar Optostic R7H-122-9 display module. |

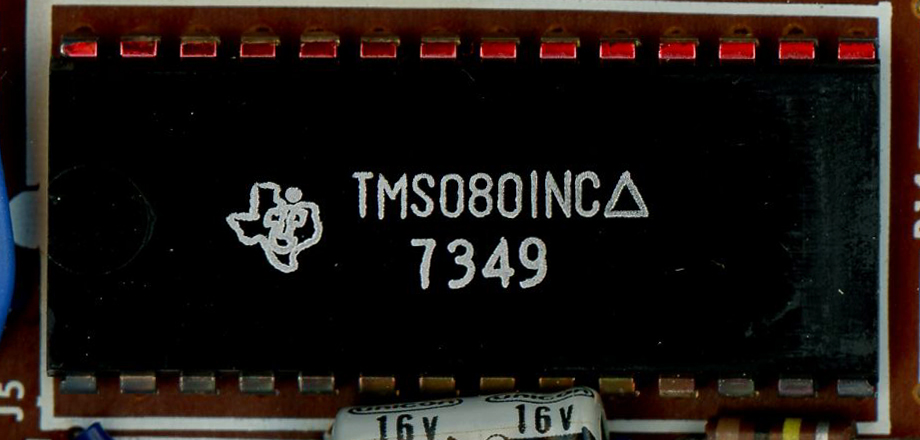

Close-up view of the
TMS0801 single-chip calculator circuit. |

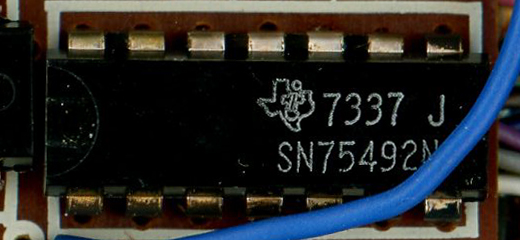

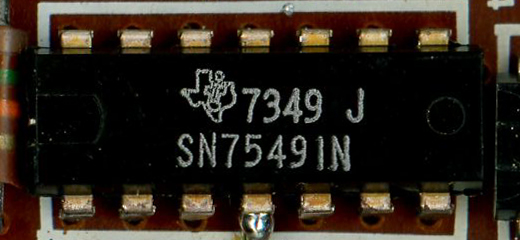

Close-up view of the two SN75491 and
SN75492 display drivers.
 |
If you have additions to the above article please email: joerg@datamath.org.
