Additional Pictures
The
sales box of a Craig Model 4518 sold
around Winter 1974 in the US.
|

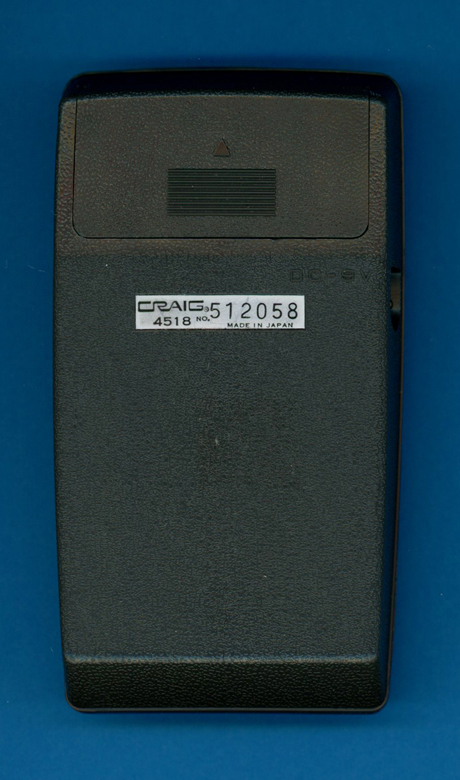

| This
Craig Model 4518
was
manufactured in Japan in October 1974.
|

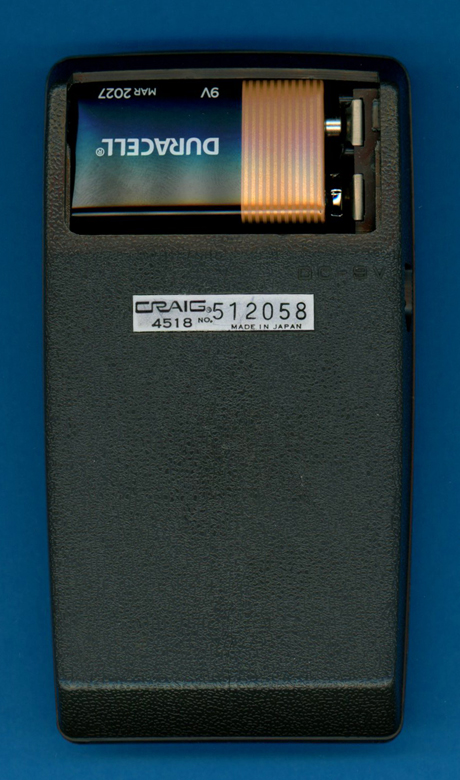

| The Craig Model 4518 calculator is
powered by a 9 Volt battery.
|

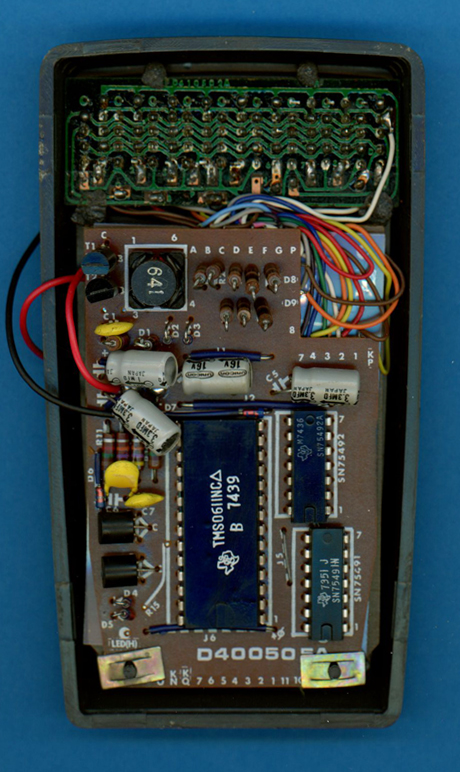

The inside view
of the Craig Model 4518 calculator with its backside housing part removed. |

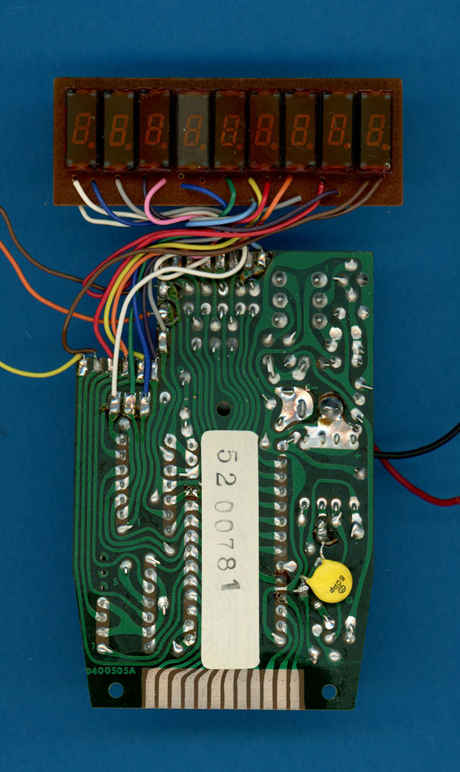

The Main-PCB,
Display-PCB and Keyboard-PCB of the Craig Model 4518 calculator. |

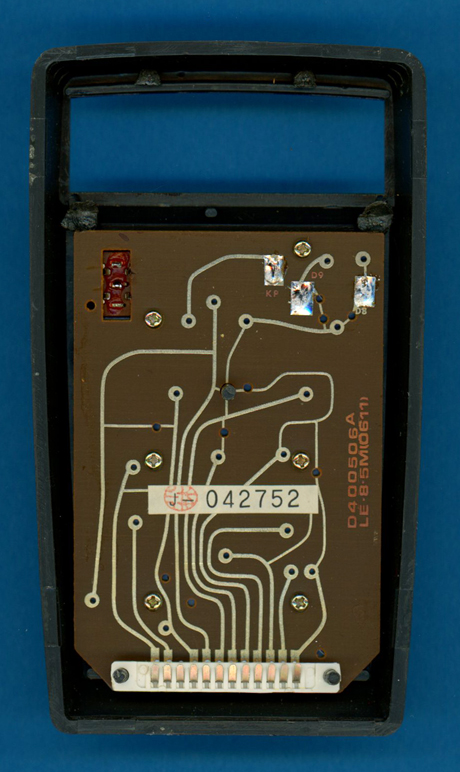

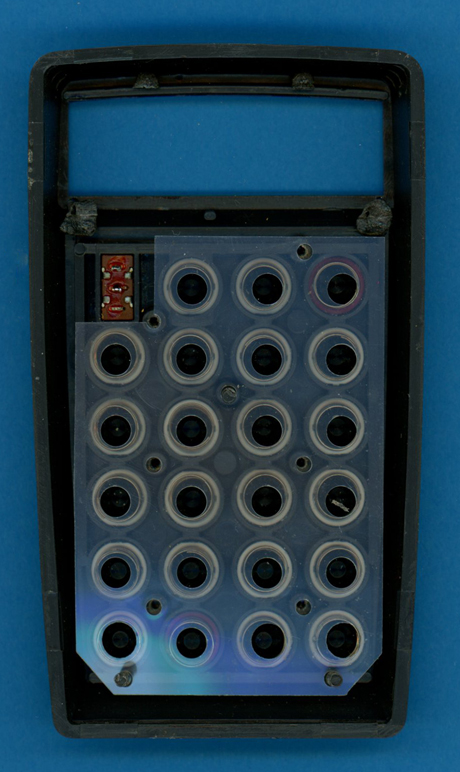

The Keyboard
contacts of the Craig Model 4518 calculator.
 |

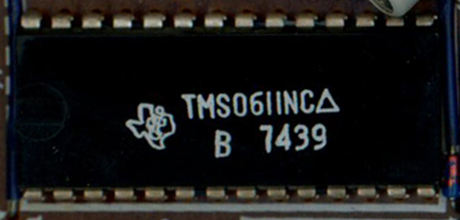

Close-up view of the
TMS0611 single-chip calculator circuit. |
Close-up view of the two SN75491 and
SN75492 display drivers.
 |

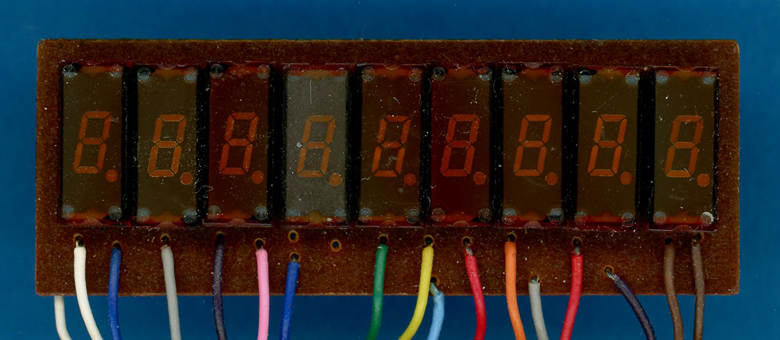

Close-up view of the nine Fairchild
FND357 7-Segment LED displays. |
