Additional Pictures
| This
Dittel TMP608
was
manufactured in Germany in August 1974.
|

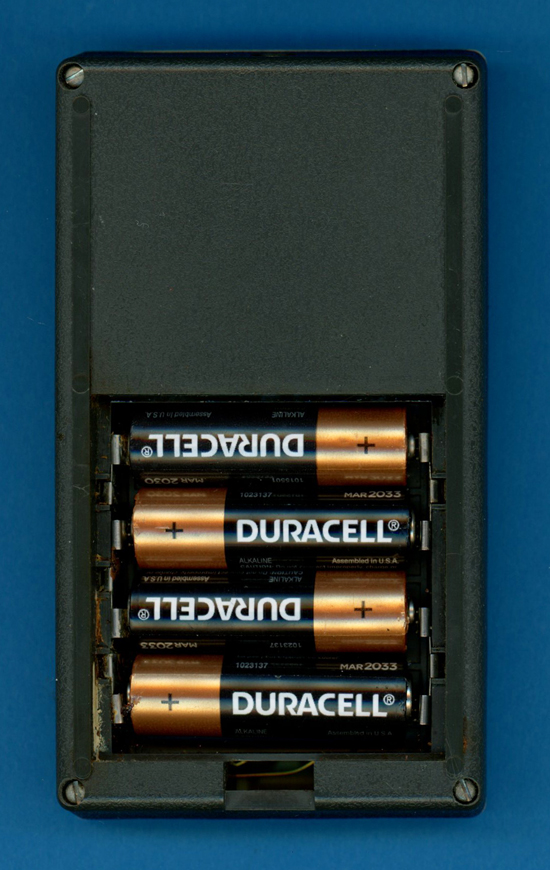

| The Dittel TMP608 calculator is
powered by 4 AA-size batteries.
|

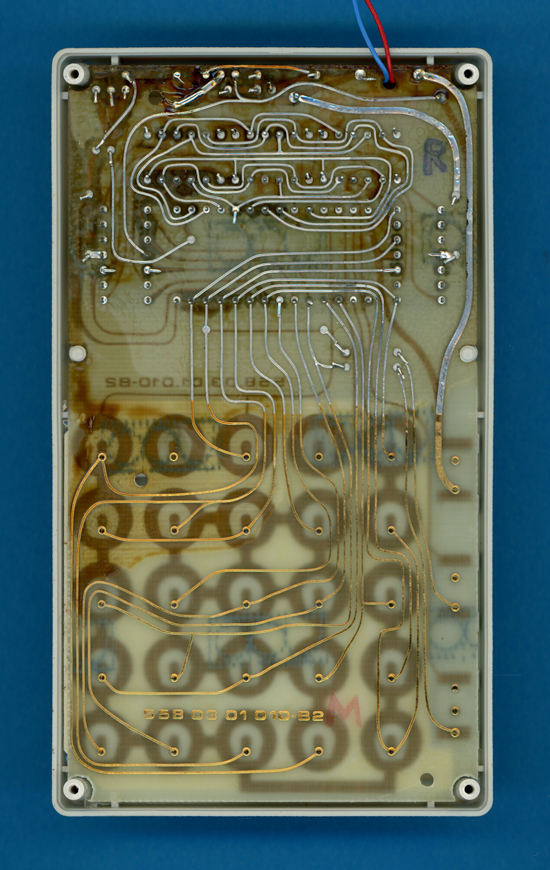

The inside view
of the Dittel TMP608 calculator with its backside housing part removed. |

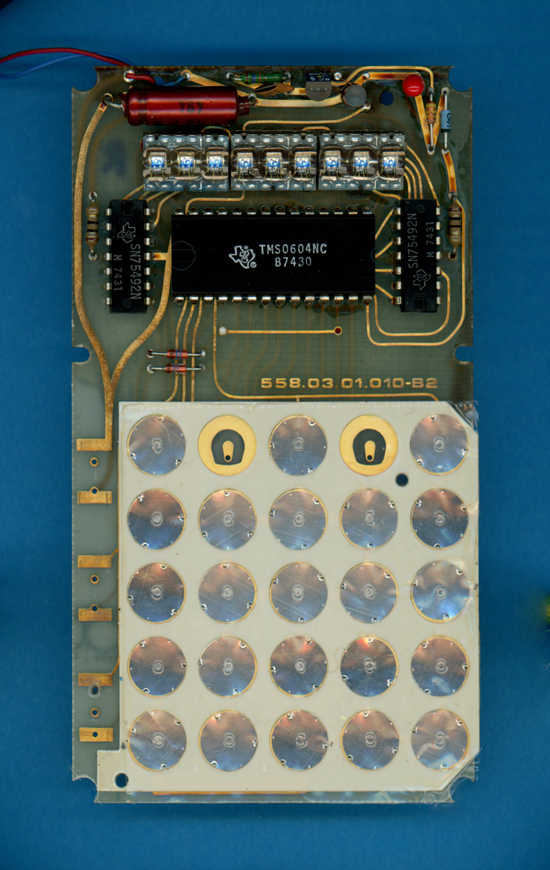

| The printed circuit board (PCB) of the
Dittel TMP608 calculator is centered around a TMS0604 single-chip calculator circuit.  |

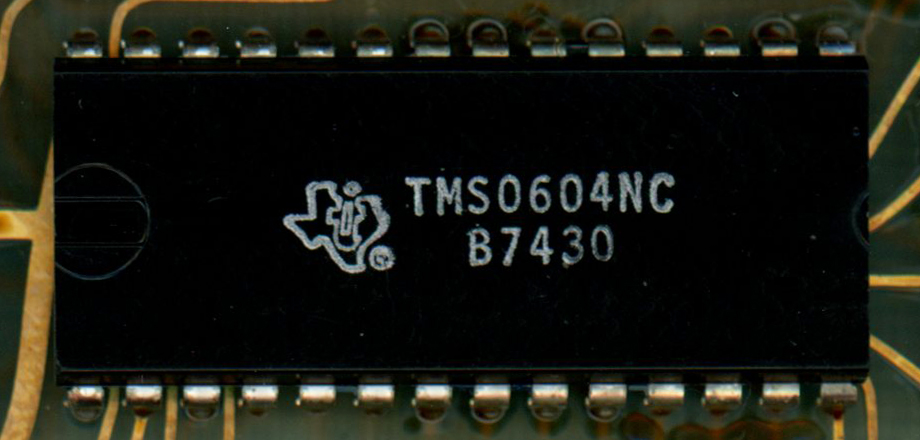

Close-up view of the
TMS0604 single-chip calculator circuit. |

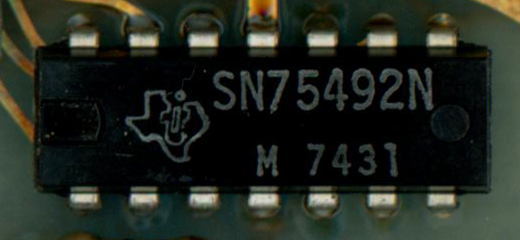

Close-up view of one of the two
SN75492 display drivers. |

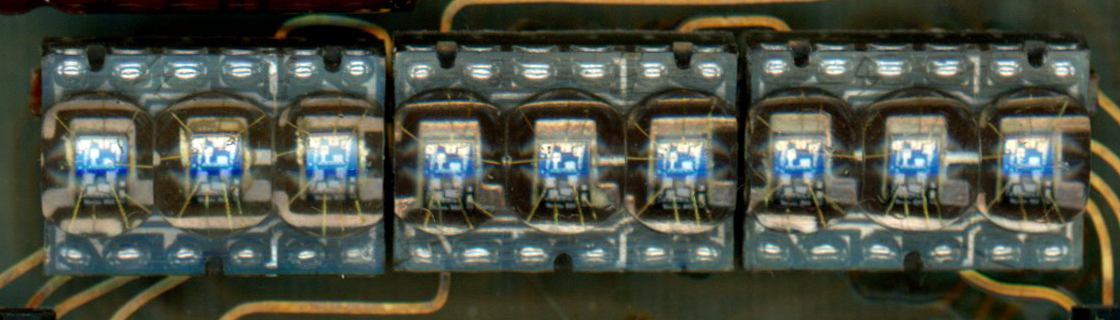

Close-up view of the three Litronix DL330 LED display modules. |
If you have additions to the above article please email: joerg@datamath.org.
