Additional Pictures

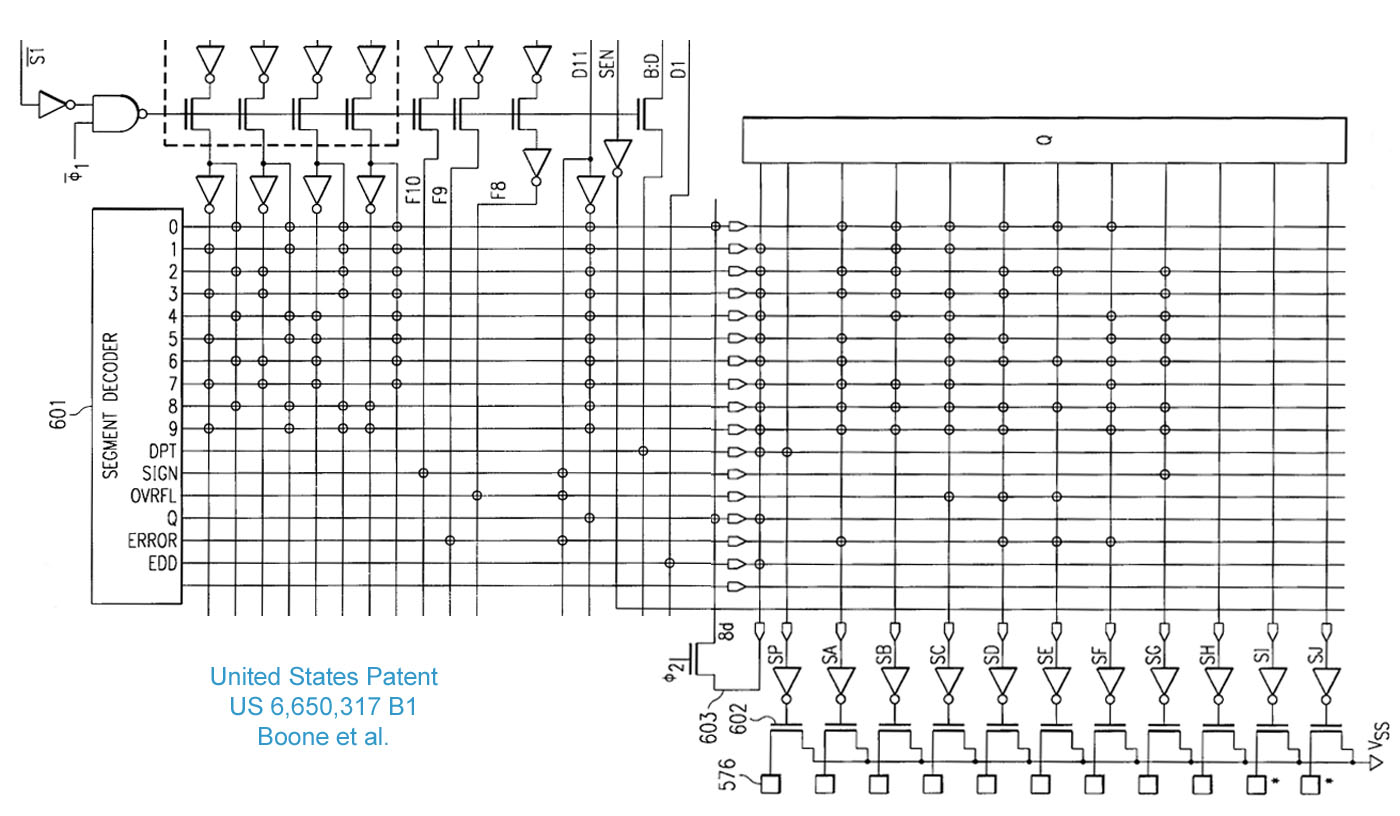

| Segment Decoder of the TMS0100
Product Family as shown in the United States Patent Application US 6,650,317,B1. Product Terms to decode numerals, minus sign, decimal point and error conditions on the left side, Sum Terms for the segments P and A to G on the right side. Product Term 0 for zeros to be displayed, Q for zeros to be suppressed. Please notice the Feedback Term in the center, labeled '603' to realize "leading-zero" suppression.
|
