DATAMATH  CALCULATOR  MUSEUM

Additional Pictures



This HP-41C Programmable Calculator  was manufactured in January 1981 by
Hewlett-Packard in the United States (Date code 2103A » wk 03 yr 1981).

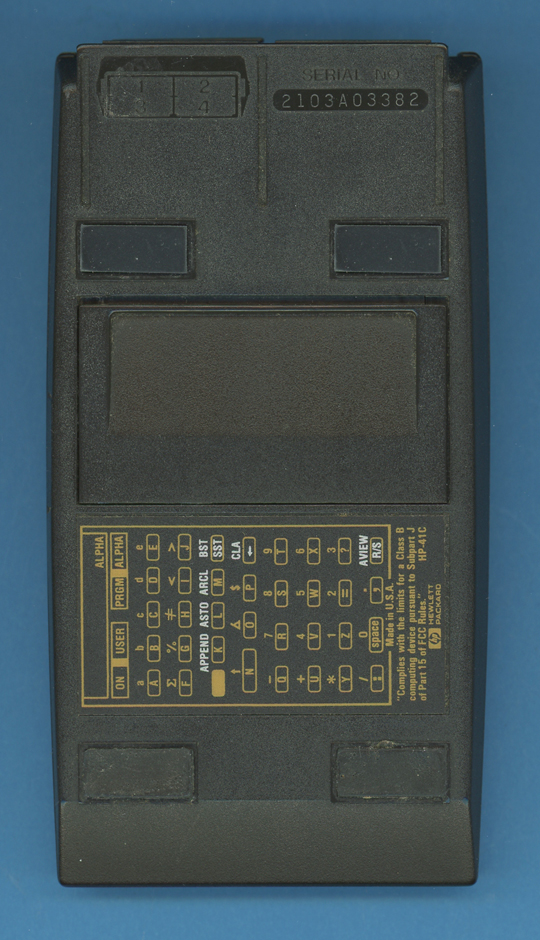

The HP-41C is powered by 4 N-sized alkaline batteries.

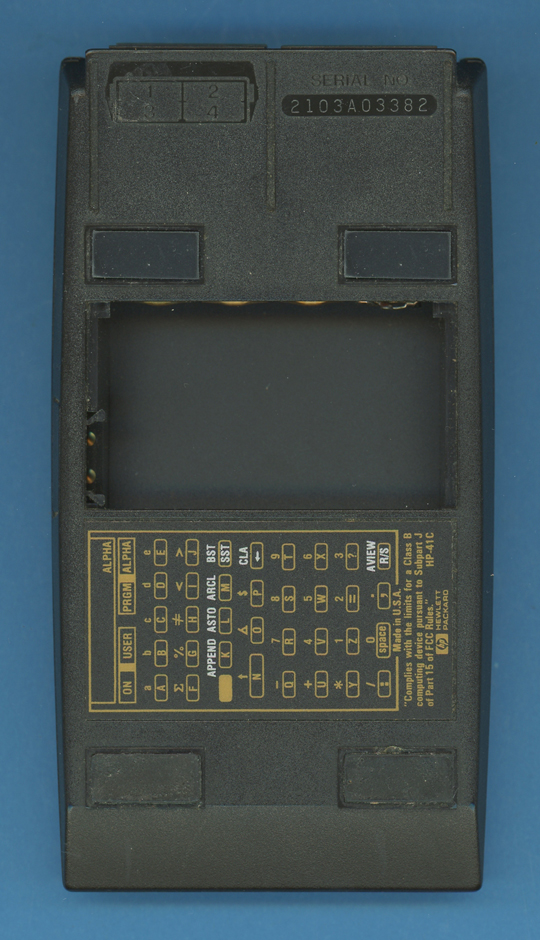

The battery holder for the 4 M-sized disposable batteries.

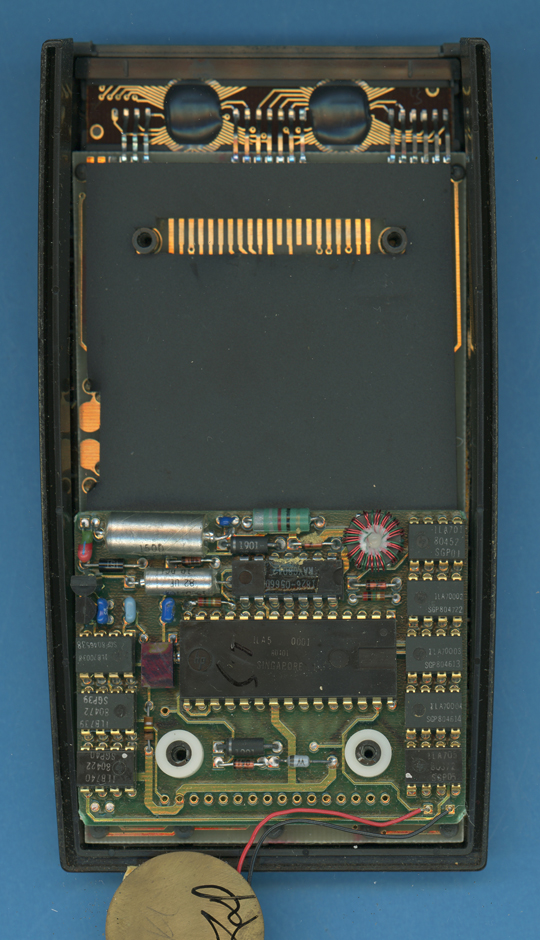

The printed circuit board (PCB) of the HP-41C  is centered around a
CPU with 56-bit Registers and supported by a myriad of other chips.

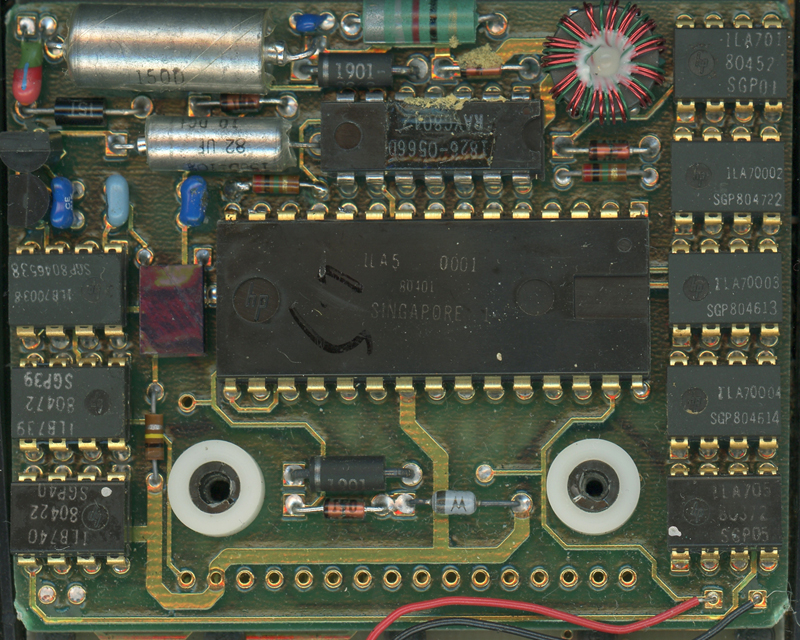

Close-up view of the custom-made CPU with RAM, ROM, and power supply.

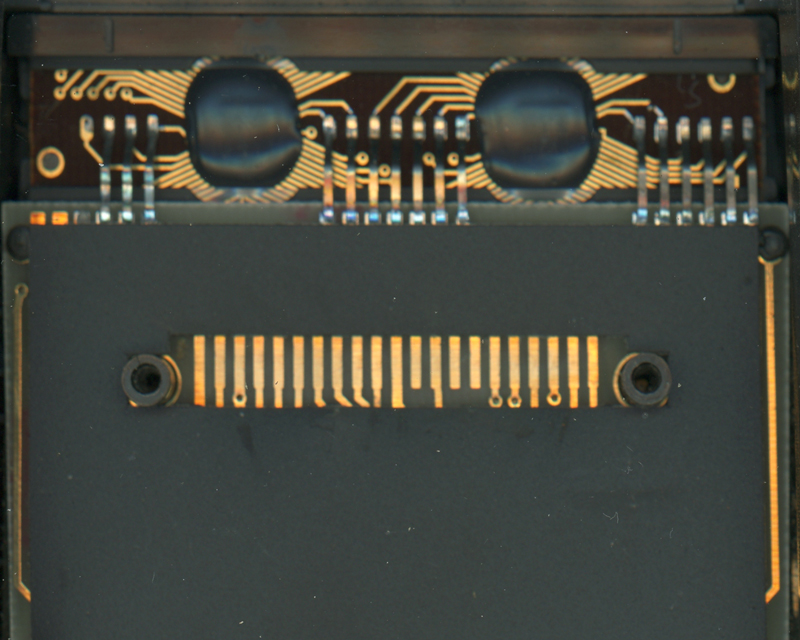

Close-up view of the two display drivers of the HP-41C in Chip-on-Board (COB) technology.


horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, October 29, 2009. No reprints without written permission.
