Additional Pictures

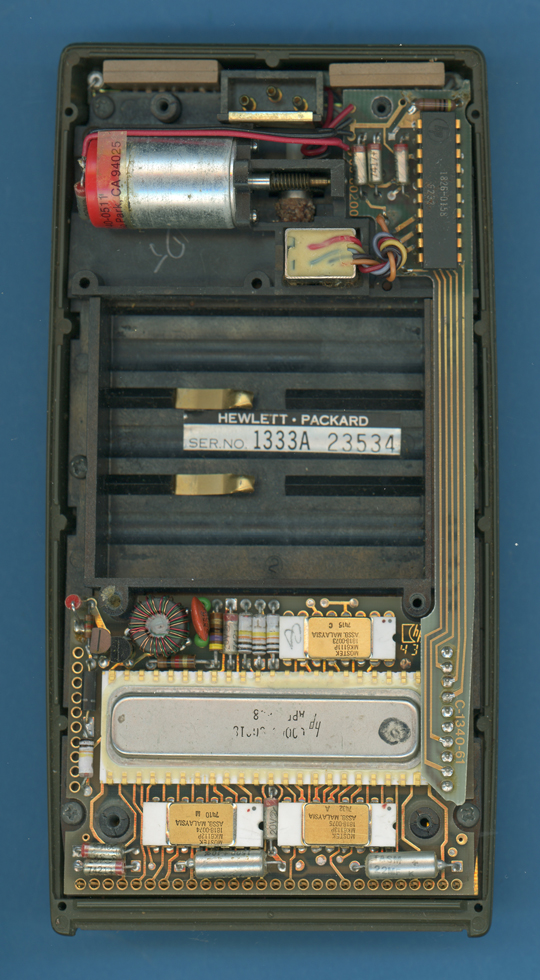

The Main printed circuit board (PCB) of the HP-65 is centered around a HP-proprietary CPU module and supported
by 3 ROM chips manufactured by Mostek, electronics for the integrated card reader and power supply.

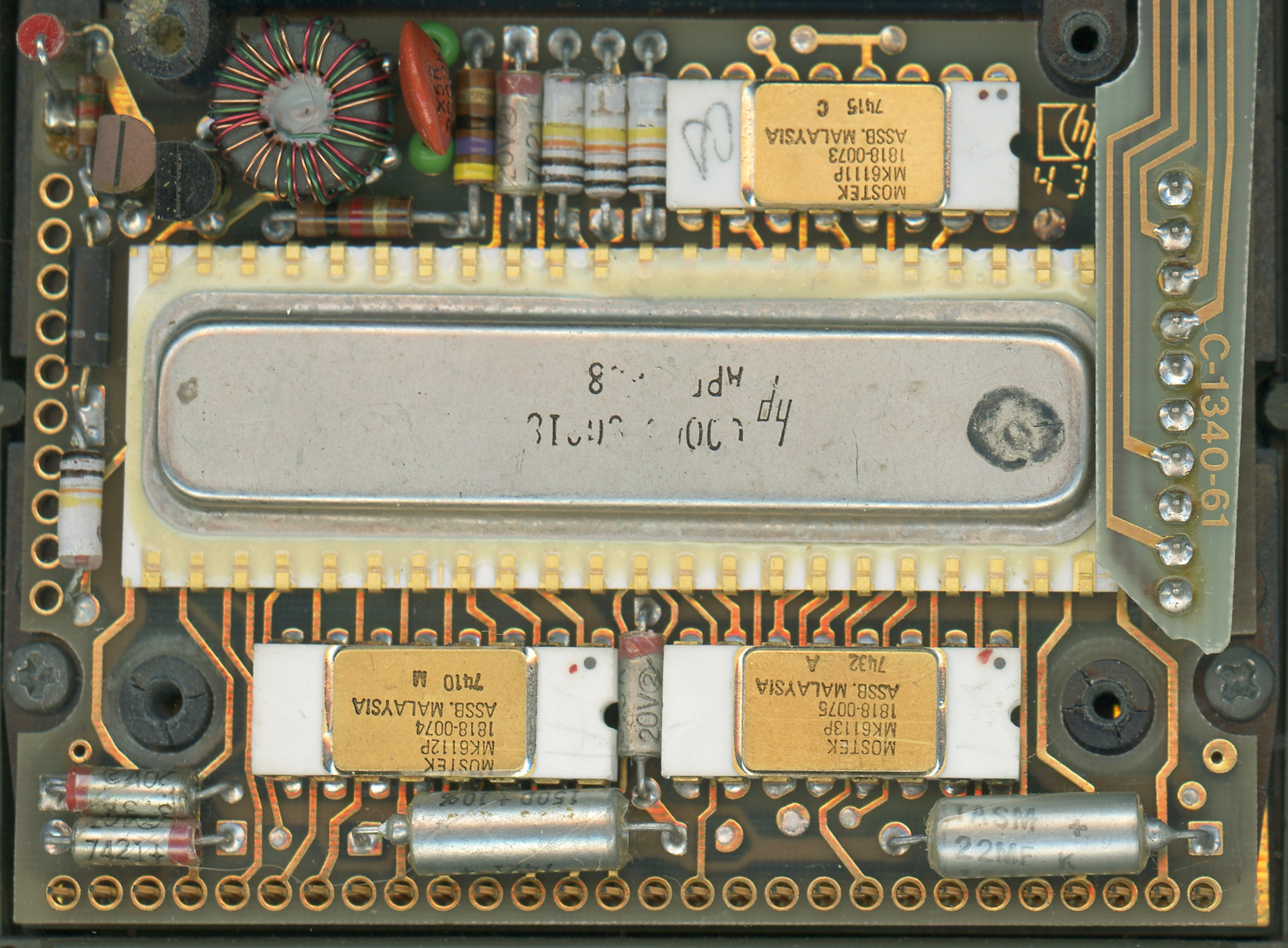

Close-up view of the custom-made CPU module with integrated RAM, external ROM and power supply.
