Additional Pictures

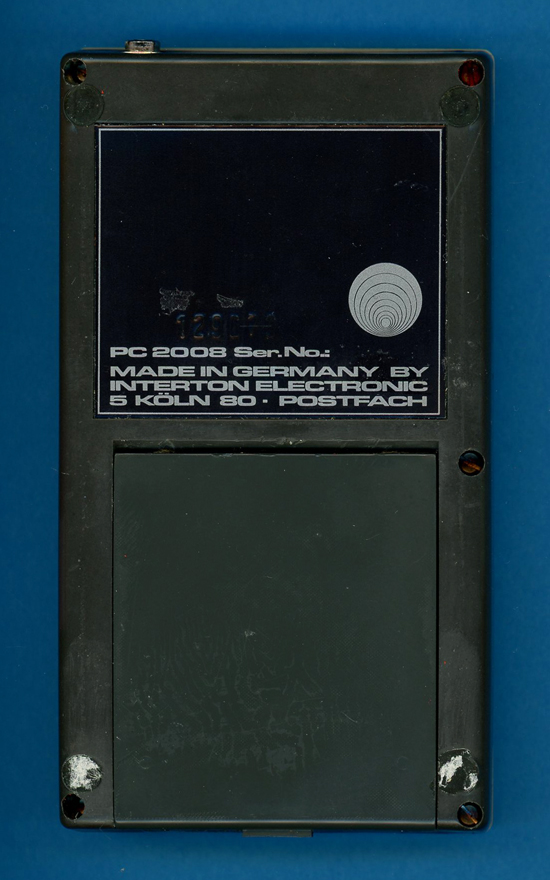

This Interton PC 2008
(Version 2) was manufactured
in July 1973 in Germany. |

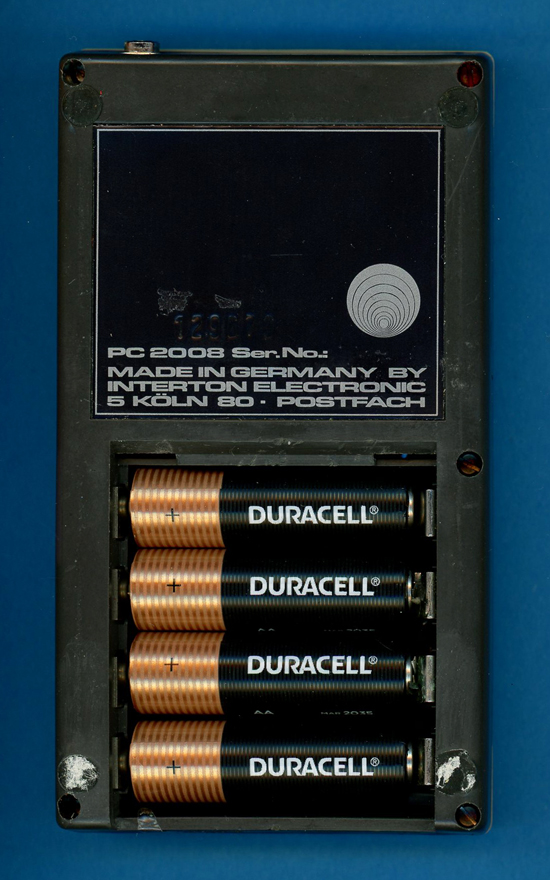

The Interton PC 2008 is
powered by four AA-size batteries. |

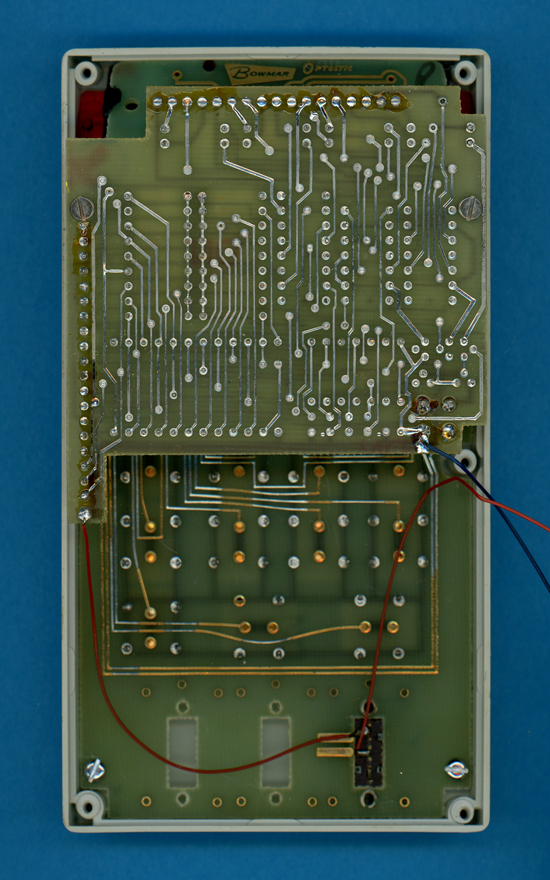

The
Interton PC 2008 calculator with its housing opened. |

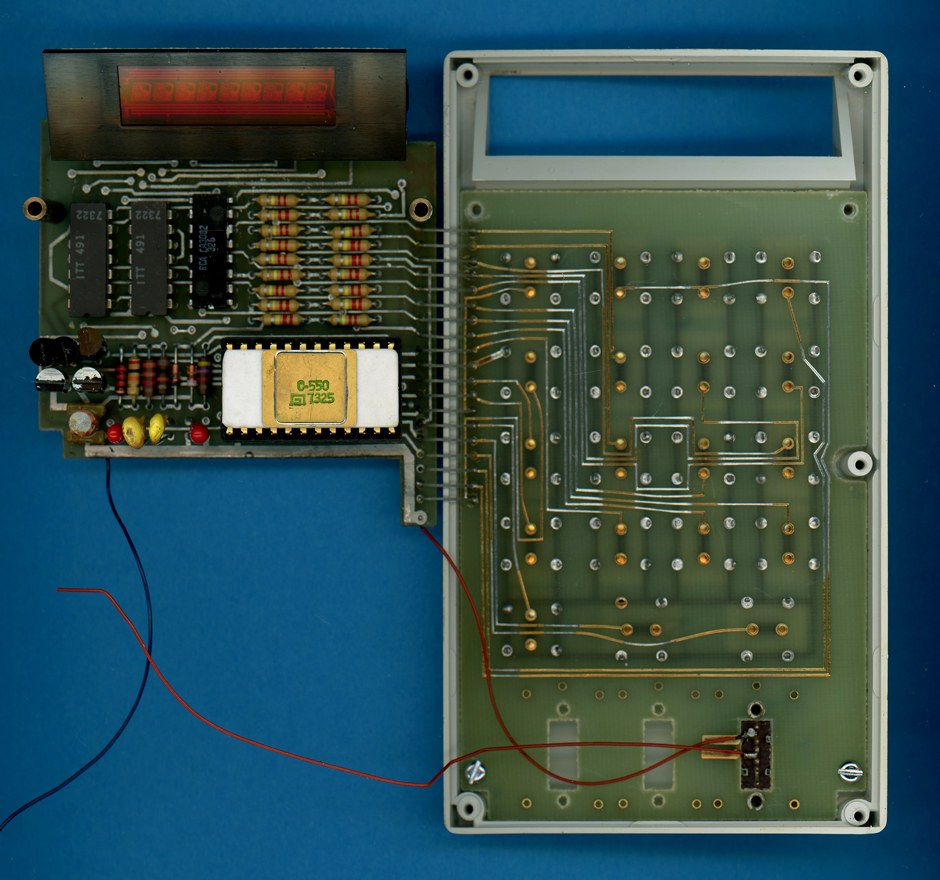

The
Interton PC 2008 calculator uses two printed circuit boards (PCBs) for its
electronics and keyboard. |

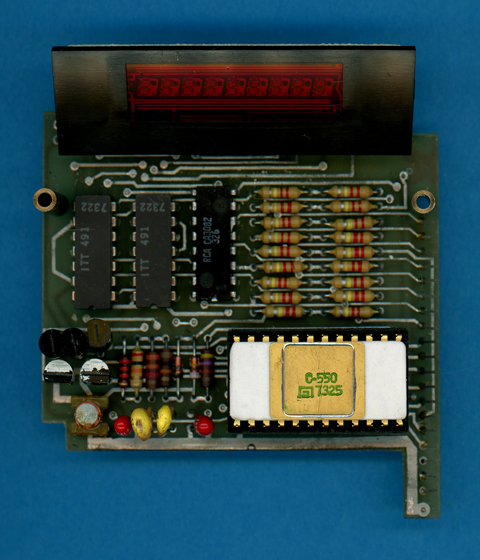

| The Main-PCB of the Interton PC 2008 (Version
2) is centered around a General Instrument C-550 single-chip calculator circuit.  |

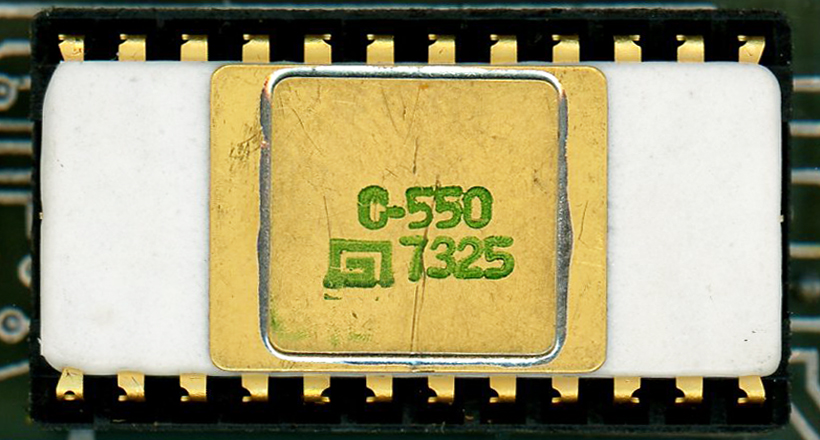

Close-up view of the
General Instrument C-550 single-chip calculator circuit. |

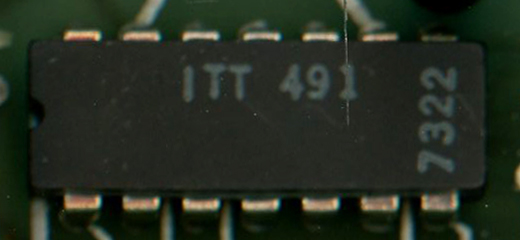

Close-up view of one of
the two ITT 491 Digit Drivers. |

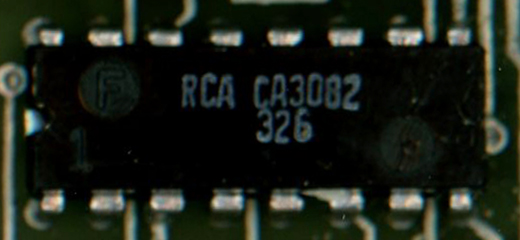

Close-up view of the
CA3082 Transistor Array to demultiplex the Digit
Outputs of the C-550. |

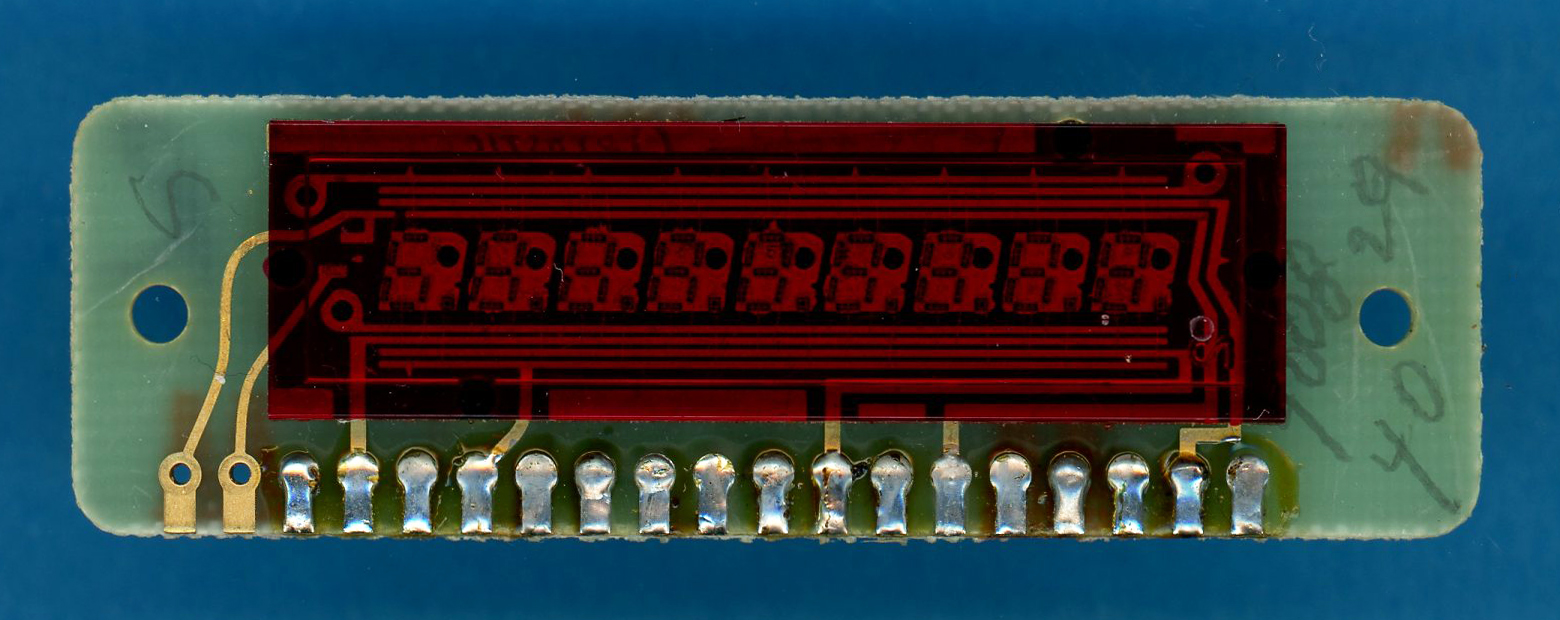

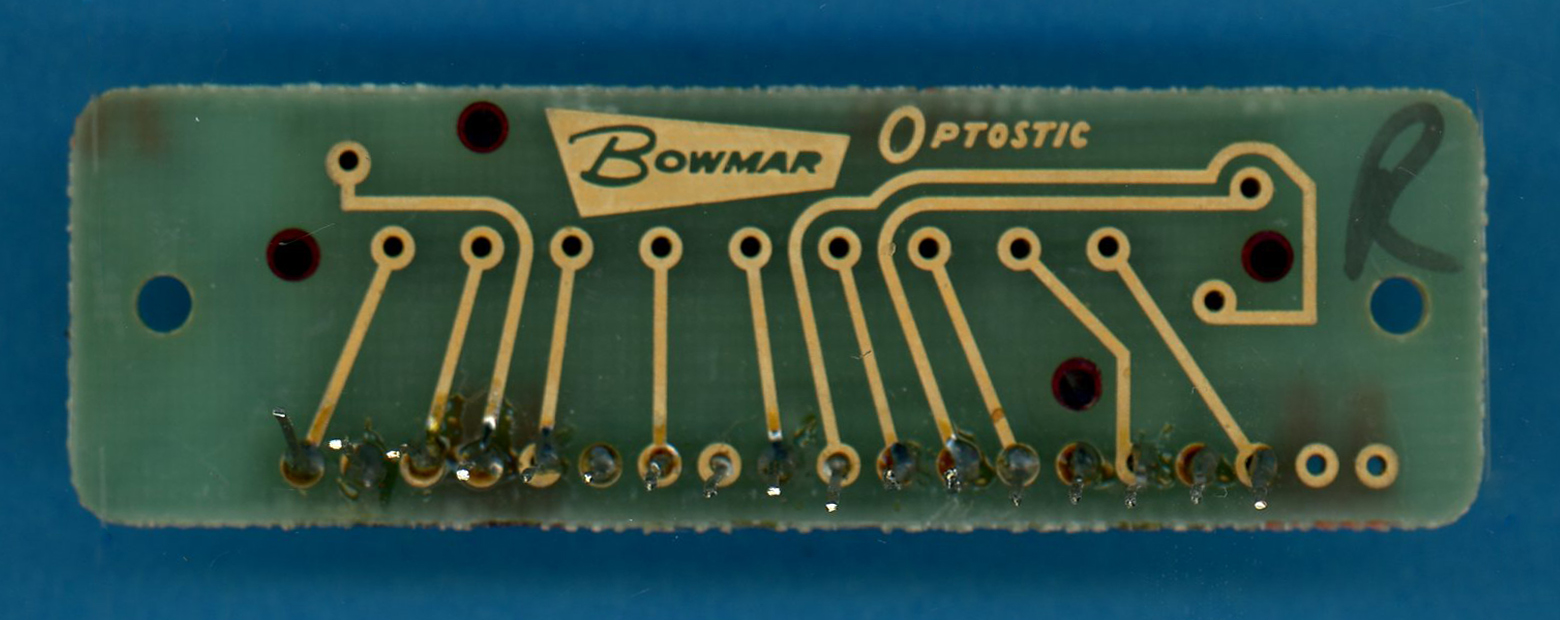

Close-up view of the
Bowmar R7H-122-9 style Display module.  |
