Additional Pictures
| This
Kovac LE-808MR
was
manufactured in Japan in June 1975.
|

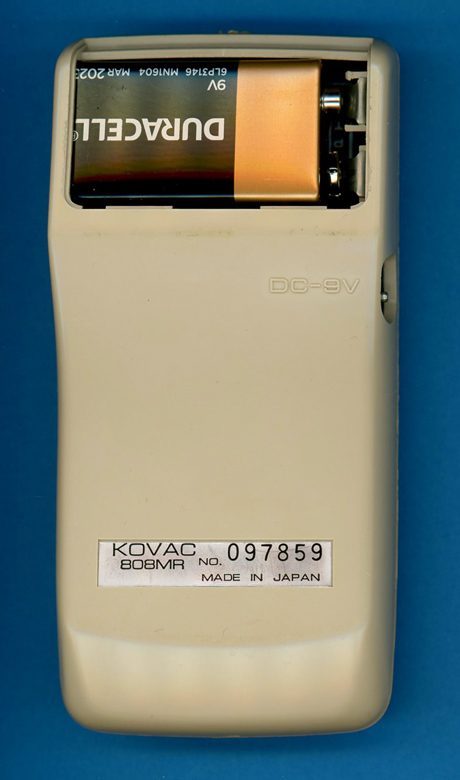

| The Kovac LE-808MR calculator is
powered by a 9 Volt battery.
|

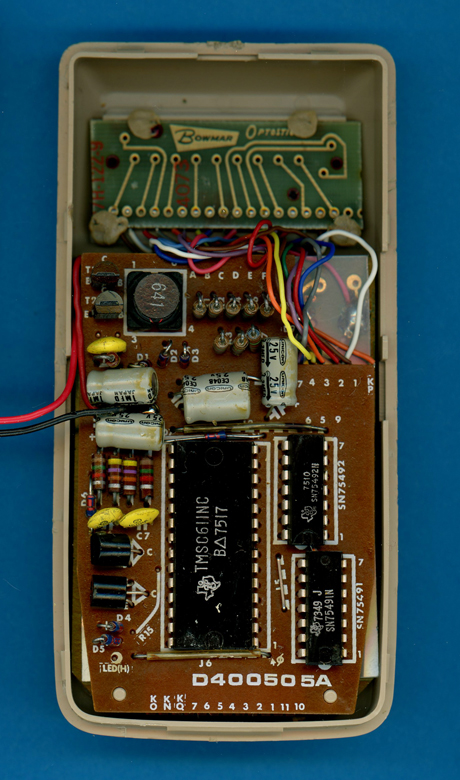

The Main-PCB of the
Kovac LE-808MR is centered round a TMS0611 single-chip calculator
circuit. |

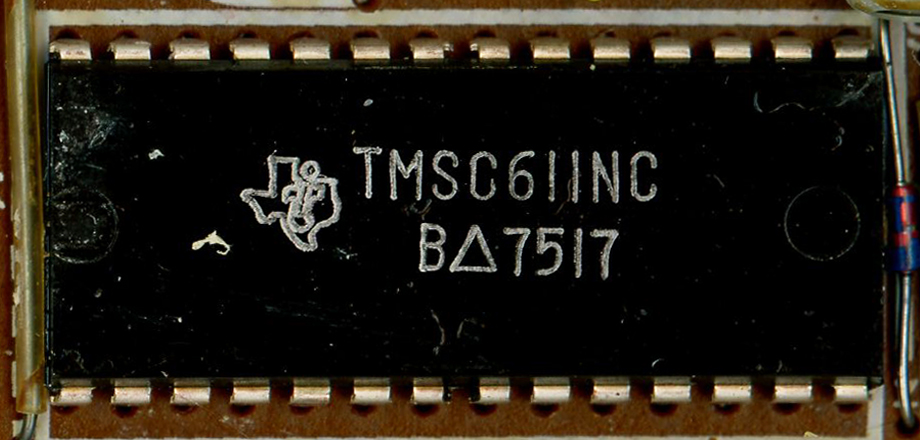

Close-up view of the
TMS0611 single-chip calculator circuit. |

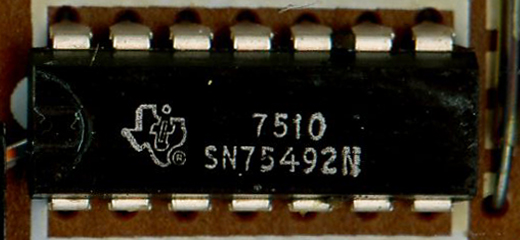

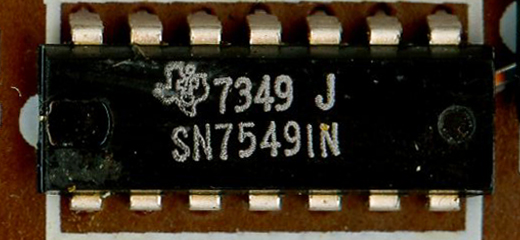

Close-up view of the two SN75491 and
SN75492 display drivers.
 |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, December 25, 2024. No reprints without written permission.
