Additional Pictures
|
This Litronix Checkmate (Second version) was manufactured in 1972 in Malaysia.
|

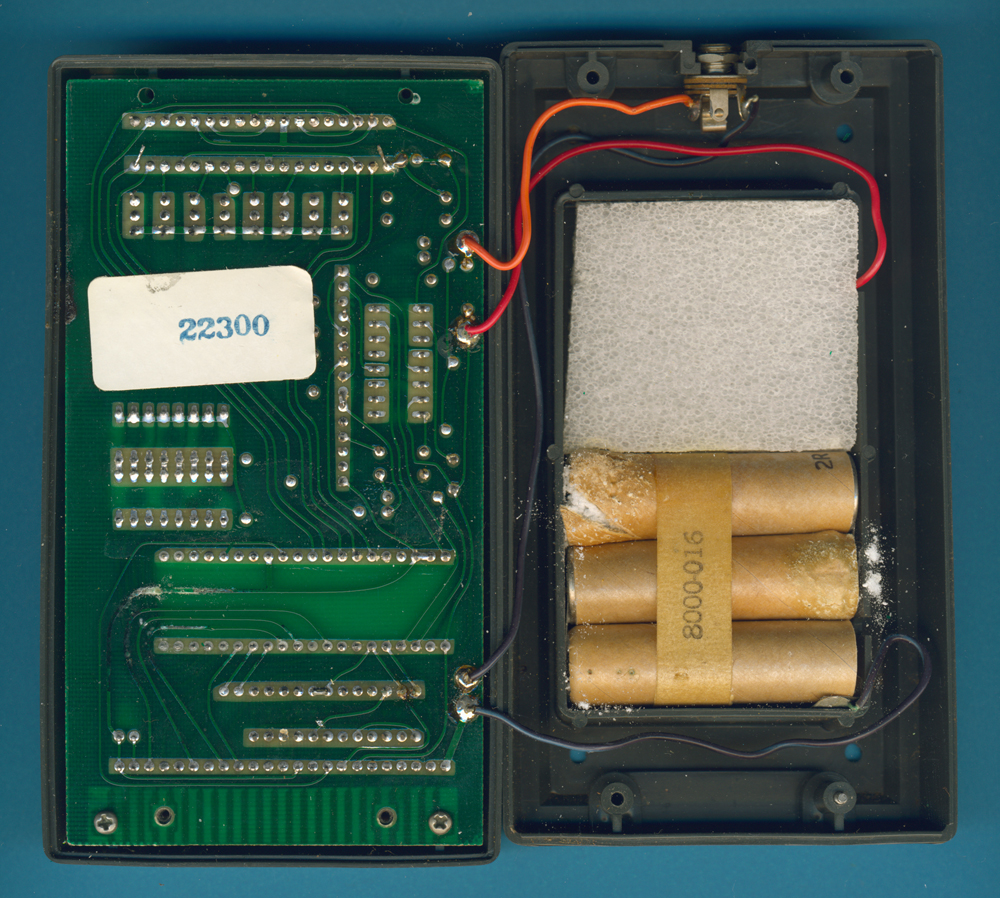

| The batteries of the Litronix
Checkmate.
|

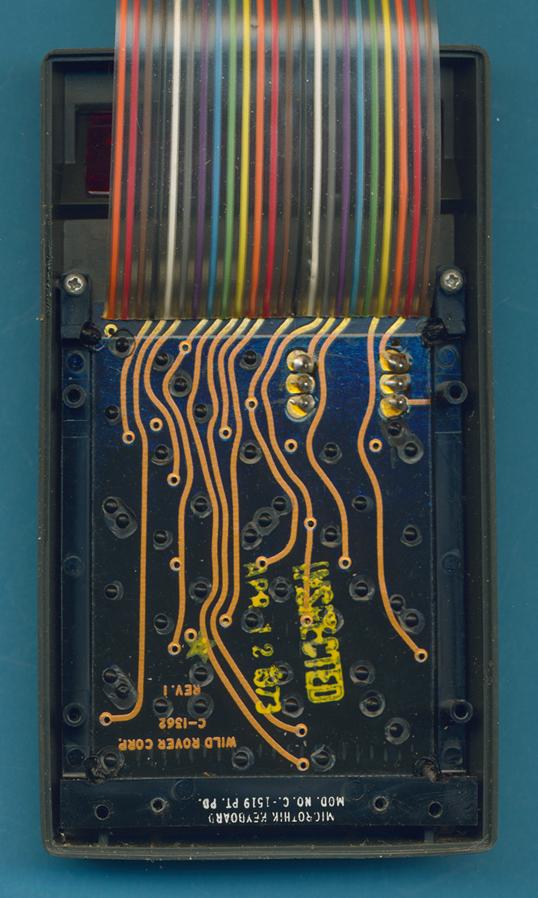

| The dismantled Litronix Checkmate with the
Wild Rover Corp. keyboard.
|

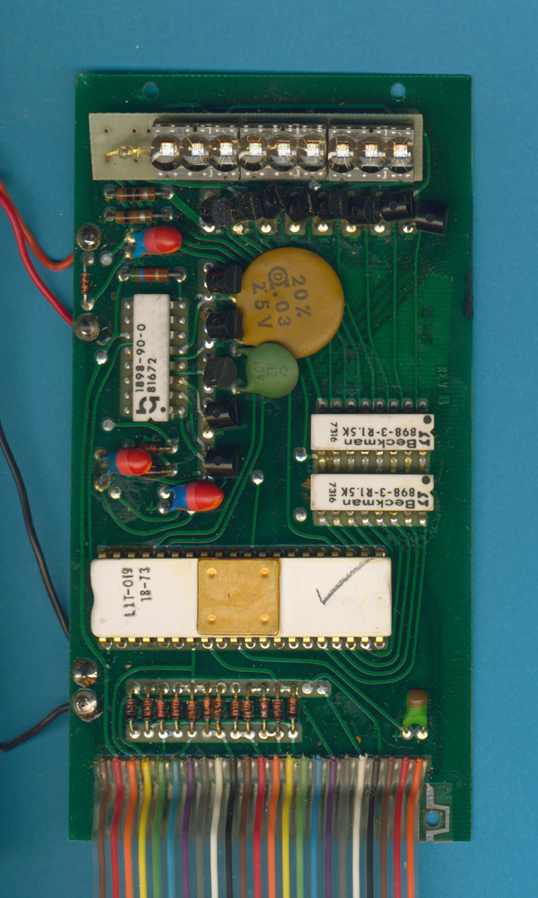

| The printed circuit board
(PCB) Litronix Checkmate with the Litronix LIT-019 Integrated Circuit and three LED Display modules.
|

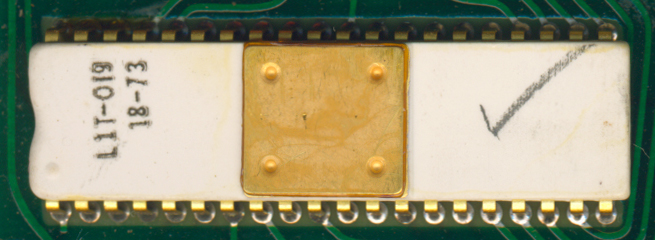

| Close-up of
the Litronix LIT-019 calculator chip.
|

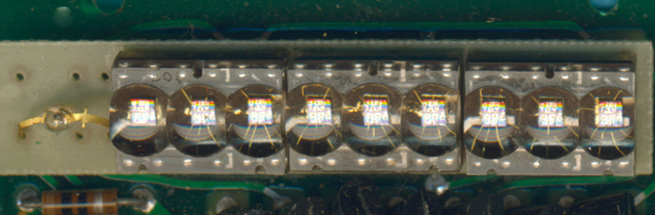

| Close-up of
the three LED Display modules.
|
