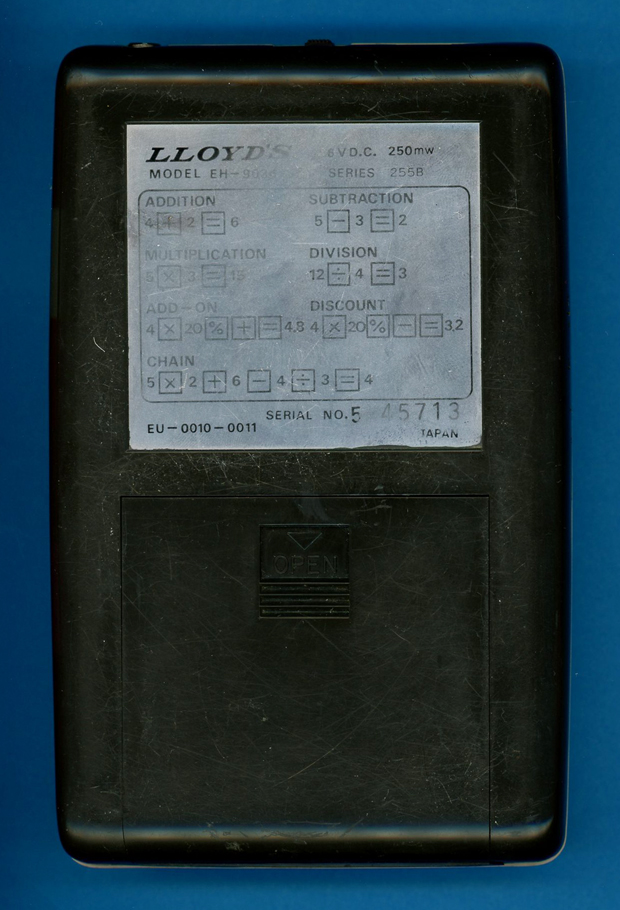

This Lloyd's Accumatic 30 (Model EH-9036, Version 255B) was manufactured in December 1974 in Japan.

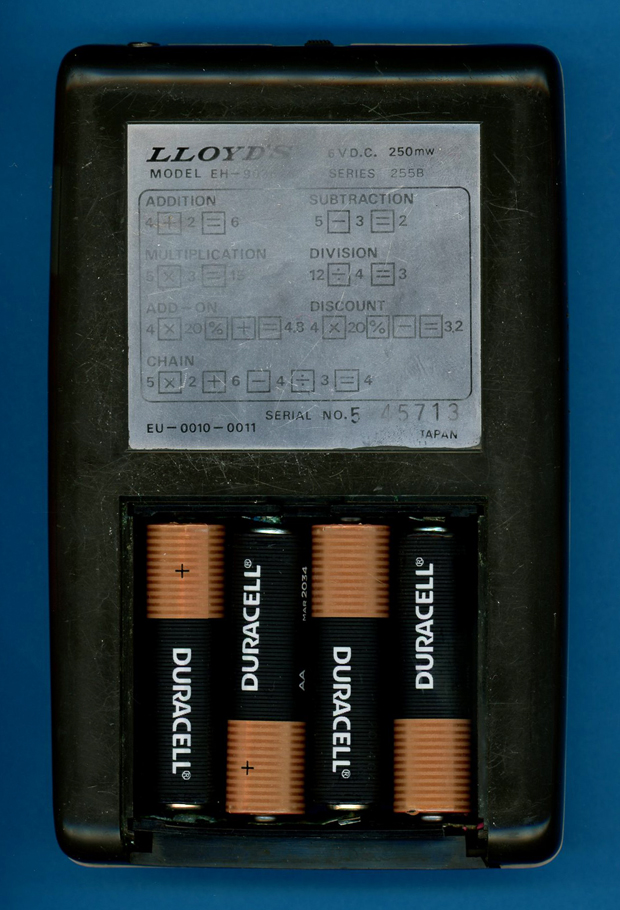

The Lloyd's Accumatic 30 is powered by four disposable 1.5 Volt batteries.

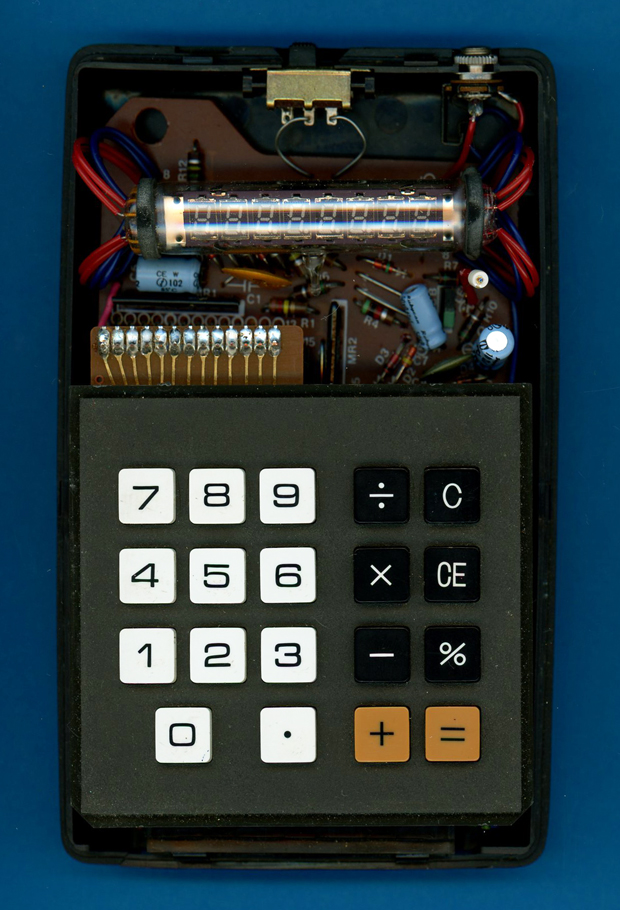

The Lloyd's Accumatic 30 (Model EH-9036, Version 255B) calculator with the frontside of its housing removed.

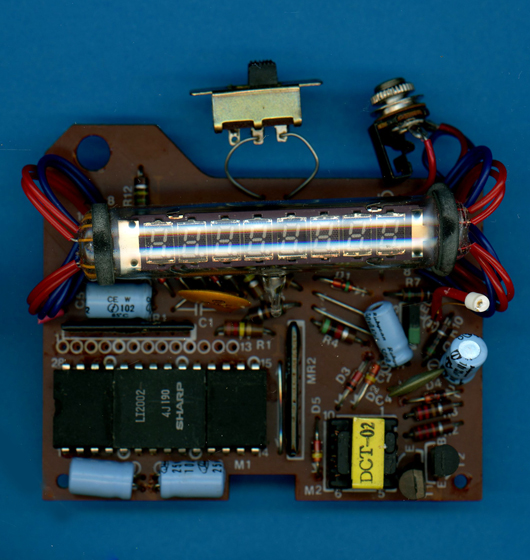

The printed circuit board (PCB) of the Lloyd's Accumatic 30 (Model EH-9036, Version 255B) is centered
around a Sharp LI2002 single-chip calculator circuit.

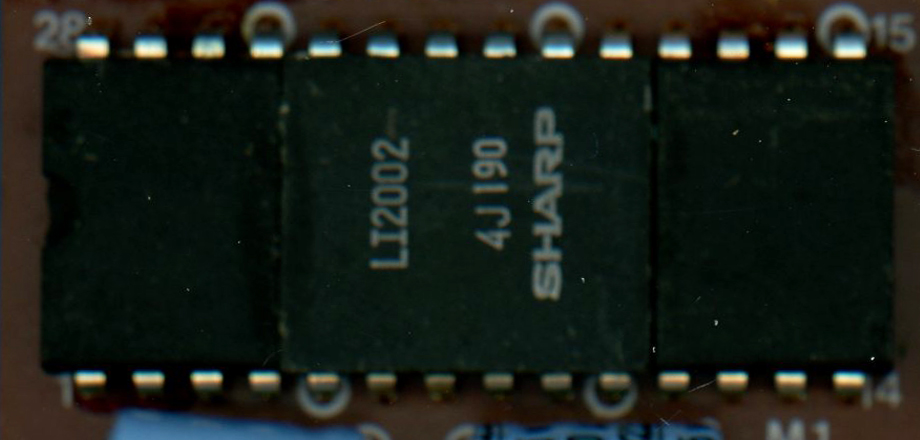

Close-up view of the Sharp LI2002 single-chip calculator circuit.

Close-up view of the FUTABA 8-CT-02 Vacuum Fluorescent Display (VFD).

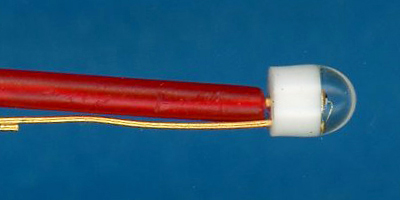

Close-up view of the minus "dot" LED.

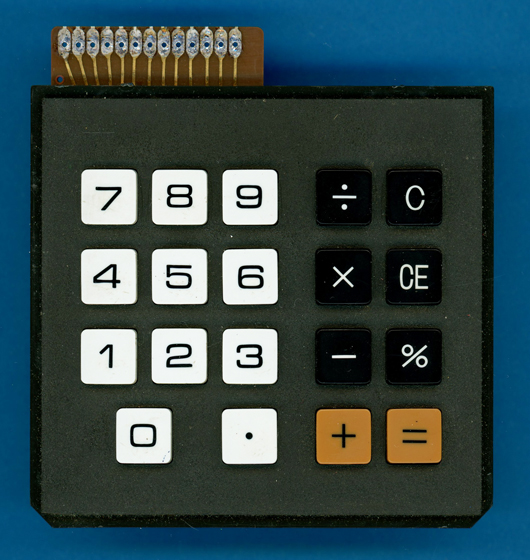

Front- and backside of the keyboard assembly of the Lloyd's Accumatic 30 (Model EH-9036, Version 255B) calculator.

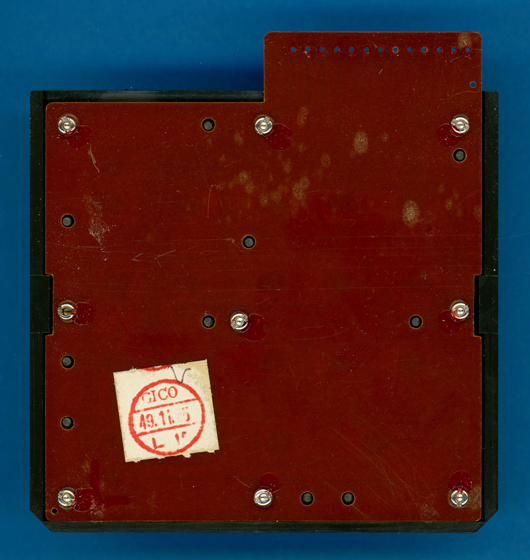

Close-up view of the date code located on the GICO keyboard assembly.
