Additional Pictures

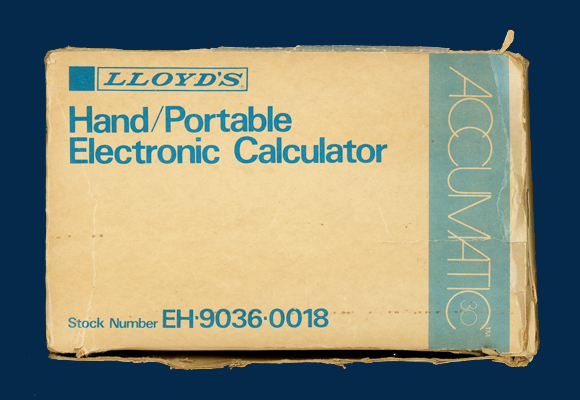

The
sales box of a Lloyd's Accumatic 30 (Model EH-9036,
Version 255C) sold
in December 1974 in the US.
  |

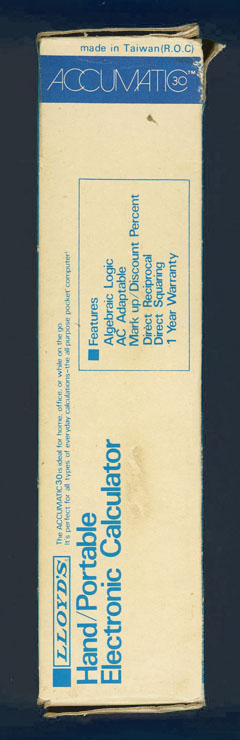

The
smaller sales box of a Lloyd's Accumatic 30 (Model EH-9036, Version
255C) sold
in March 1975 in the US.
 |
This Lloyd's Accumatic 30
(Model EH-9036, Version 255C) was manufactured
in February 1975 in Japan. |

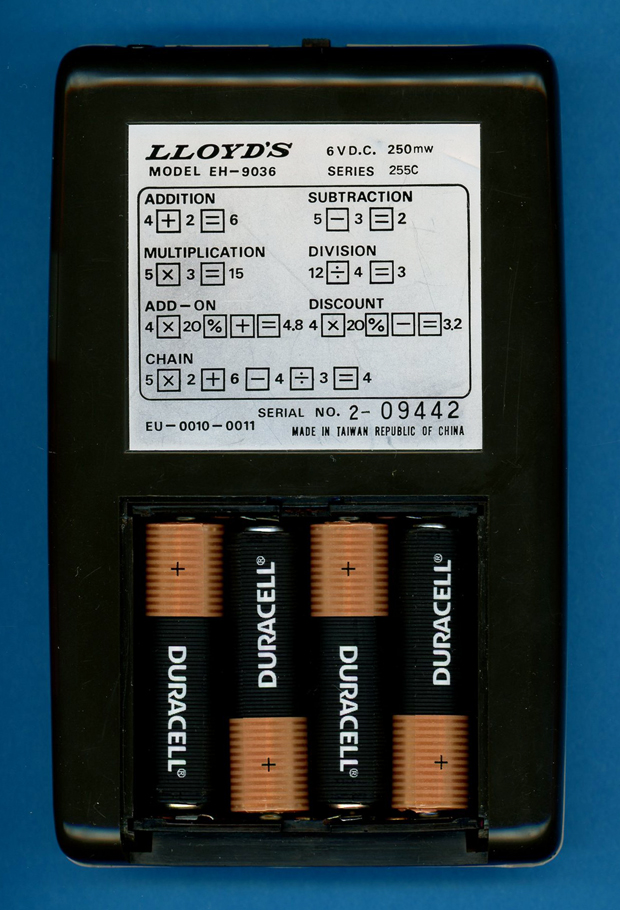

The Lloyd's Accumatic 30 is powered by four disposable 1.5 Volt batteries. |

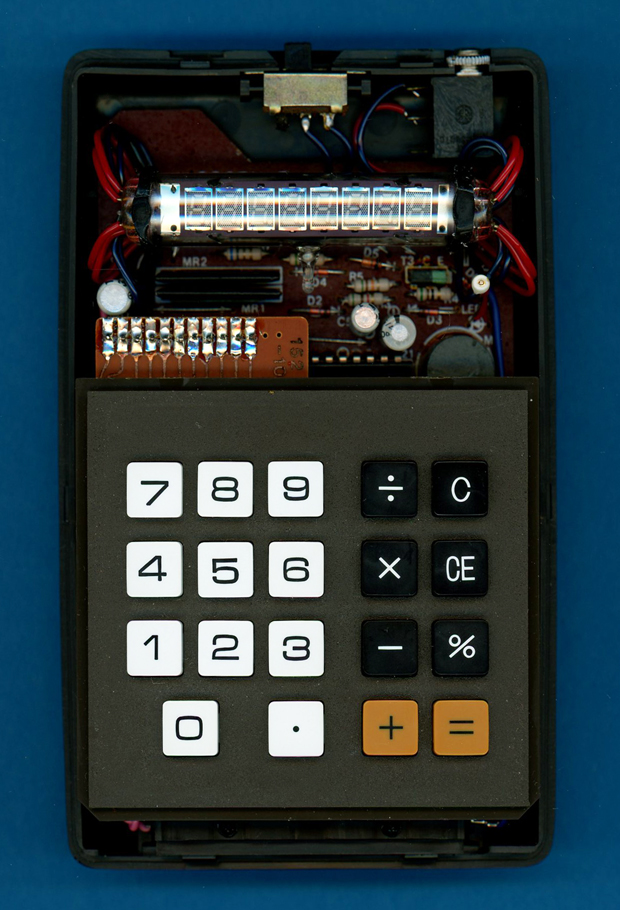

The Lloyd's Accumatic 30
(Model EH-9036, Version 255C) calculator with the frontside of its housing removed. |

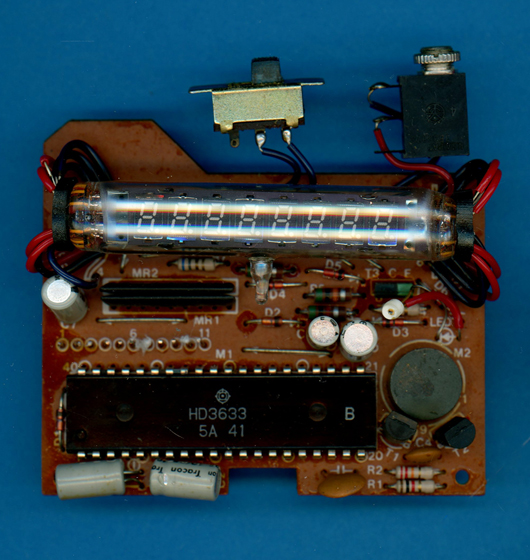

| The printed circuit board
(PCB) of the Lloyd's Accumatic 30 (Model EH-9036,
Version 255C) is centered around a Hitachi HD3633 single-chip calculator circuit.  |

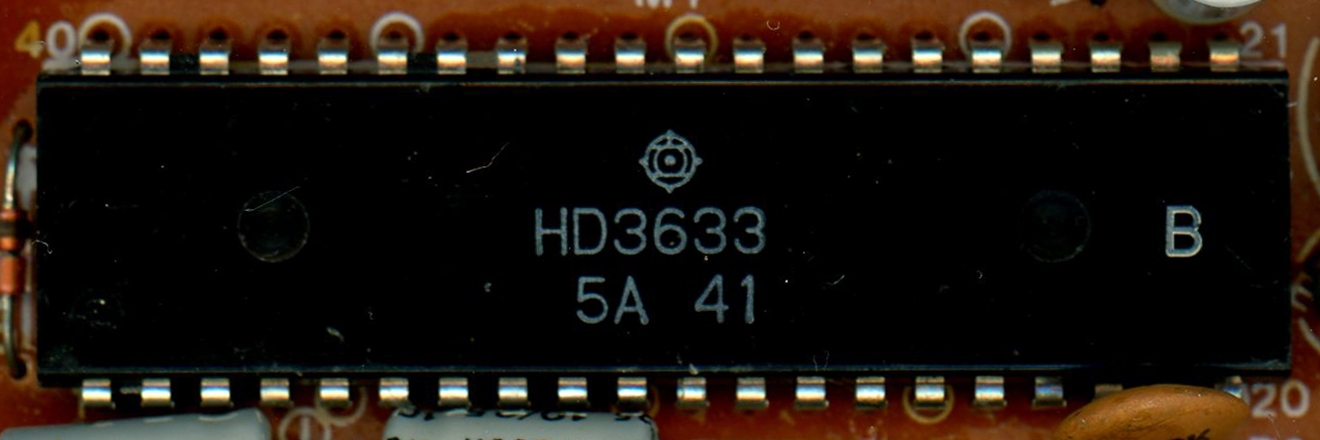

Close-up view of the
Hitachi HD3633 single-chip calculator circuit. |

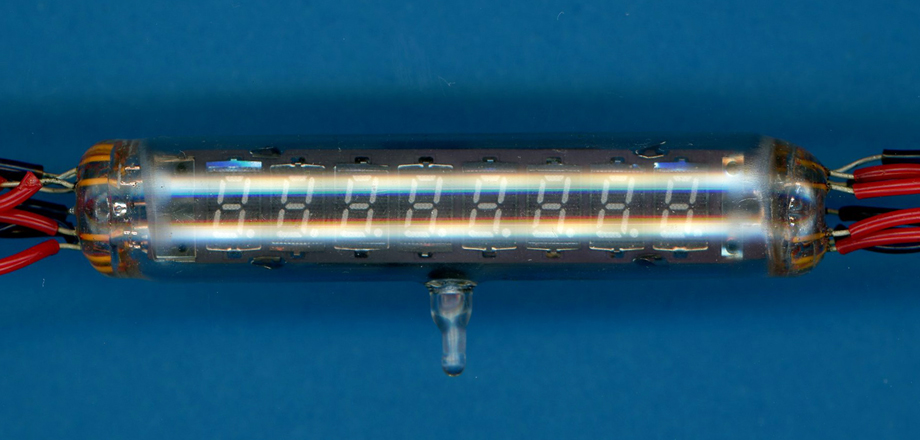

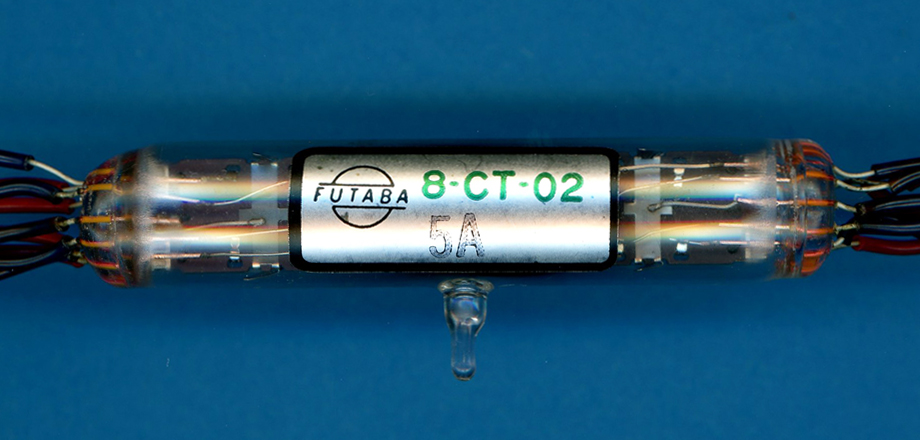

Close-up view of the
FUTABA 8-CT-02 Vacuum Fluorescent Display (VFD).  |

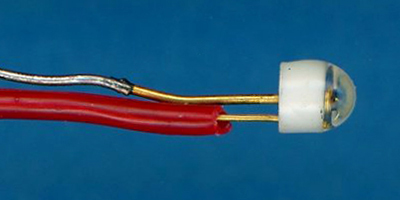

Close-up view of the minus "dot" LED. |

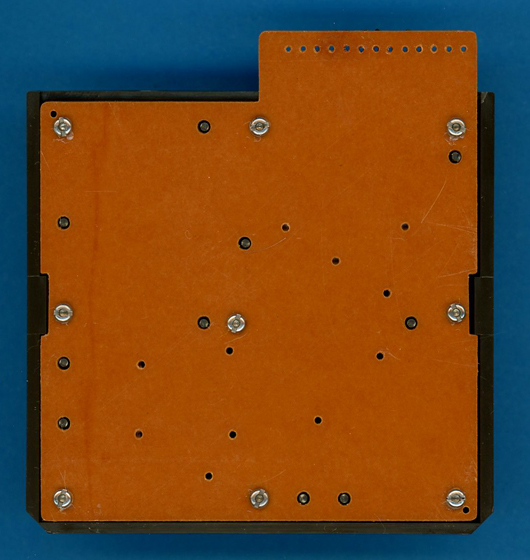

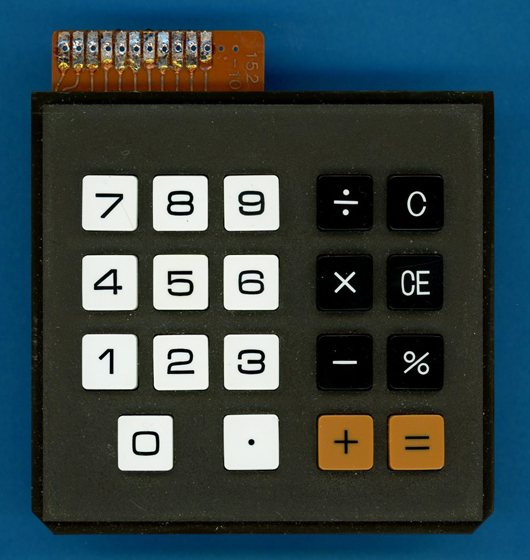

Front- and backside of the
keyboard assembly of the Lloyd's Accumatic 30
(Model EH-9036, Version 255C) calculator.  |
