Additional Pictures

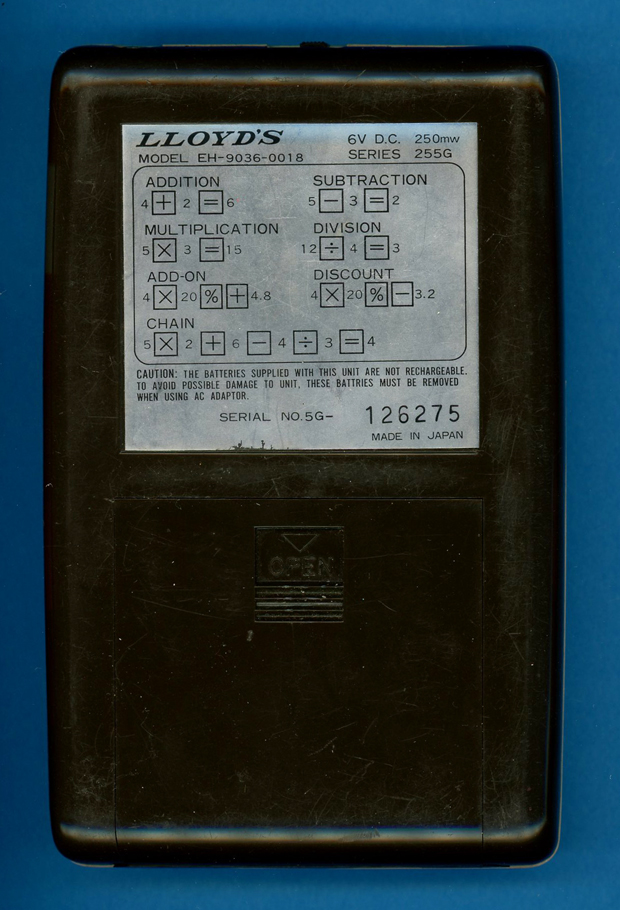

This Lloyd's Accumatic 30  (Model EH-9036, Version 255G) was manufactured in September 1975 in Japan.

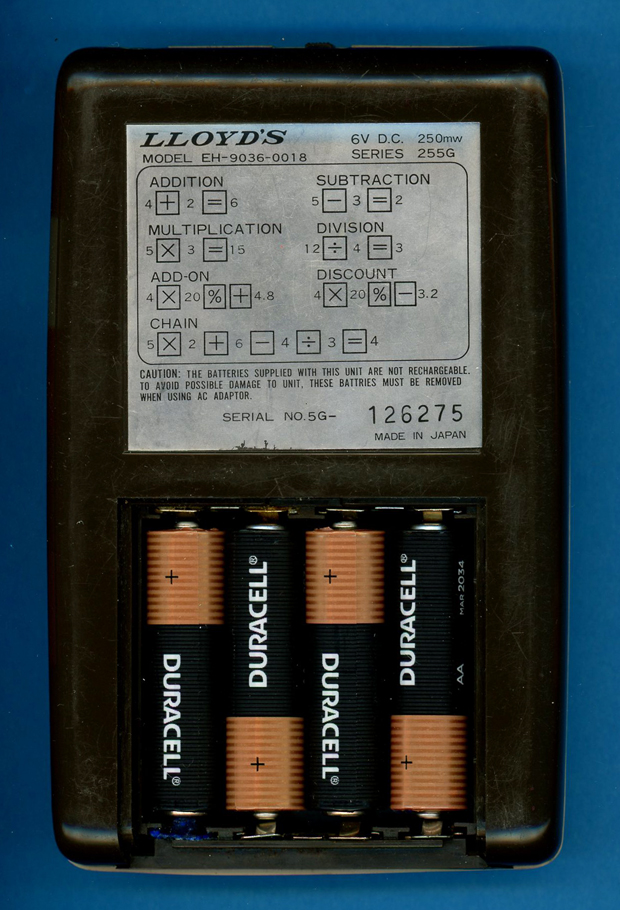

The Lloyd's Accumatic 30 is powered by four disposable 1.5 Volt batteries.

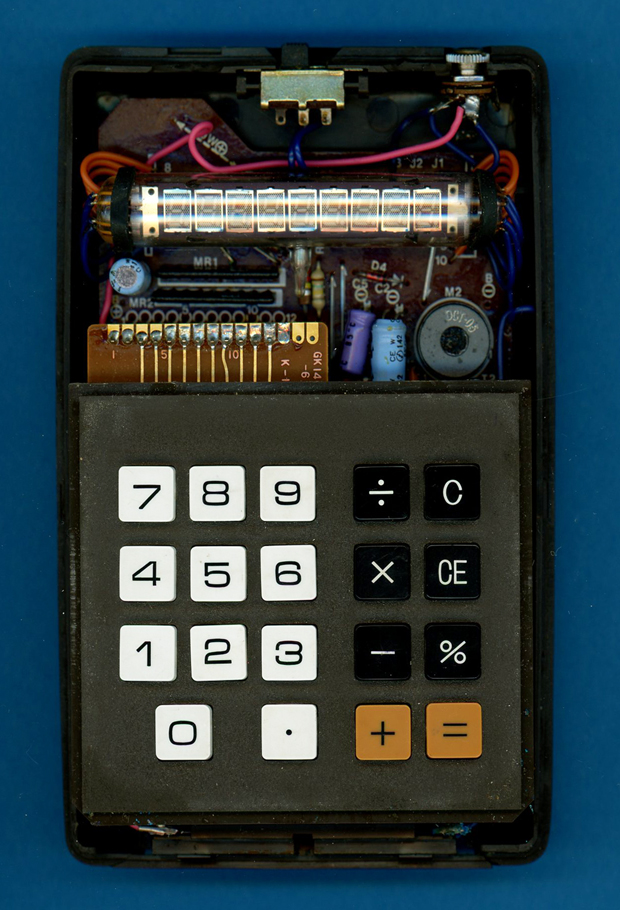

The Lloyd's Accumatic 30 (Model EH-9036, Version 255G) calculator with the frontside of its housing removed.

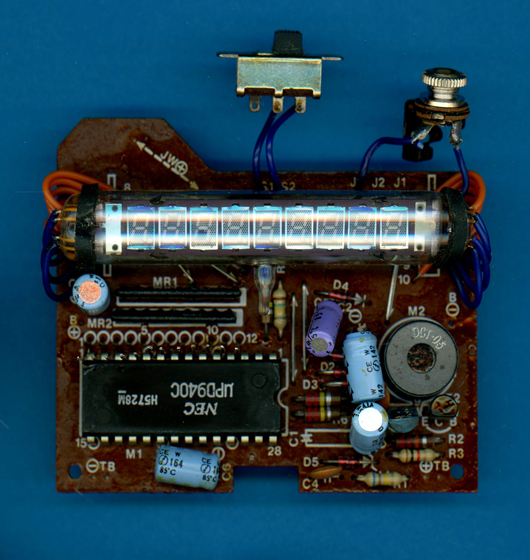

The printed circuit board (PCB) of the Lloyd's Accumatic 30 (Model EH-9036, Version 255G) is centered
around a NEC µPD940 single-chip calculator circuit.

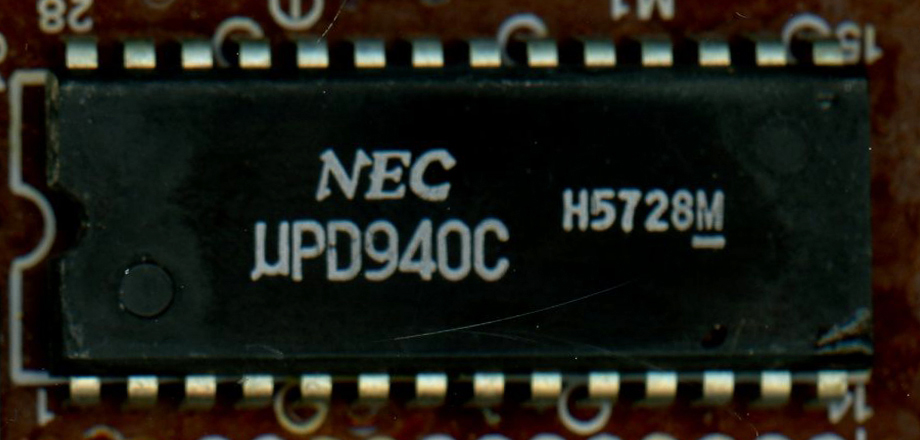

Close-up view of the NEC µPD940 single-chip calculator circuit.

Close-up view of the FUTABA 9-CT-08 Vacuum Fluorescent Display (VFD).

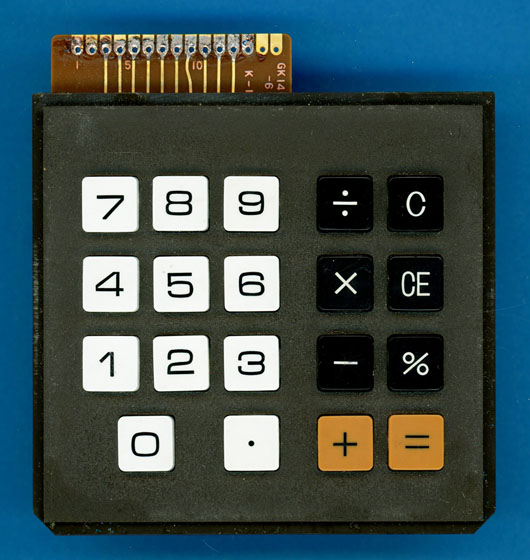

Front- and backside of the keyboard assembly of the Lloyd's Accumatic 30 (Model EH-9036, Version 255G) calculator.

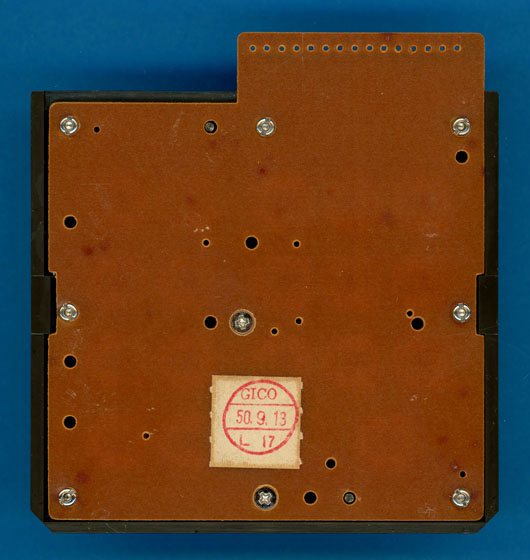

Close-up view of the date code located on the GICO keyboard assembly.
