Additional Pictures
The
sales box of a Lloyd's Accumatic 30 (Model EH-9036,
Version 260D Hitachi) sold
in Summer 1975 in the US.
  |

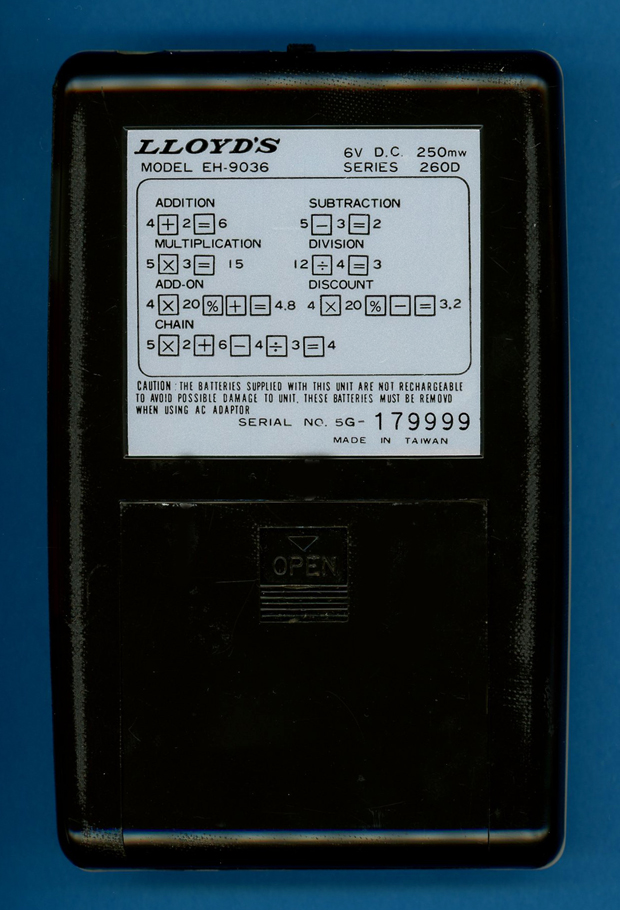

This Lloyd's Accumatic 30
(Model EH-9036, Version 260D Hitachi) was manufactured
in July 1975 in Taiwan. |

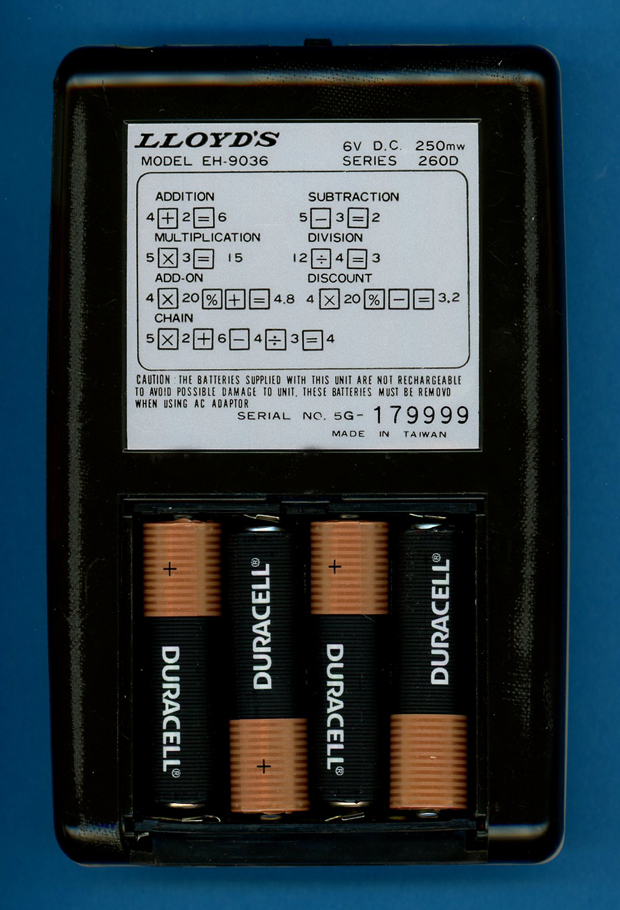

The Lloyd's Accumatic 30 is powered by four disposable 1.5 Volt batteries. |

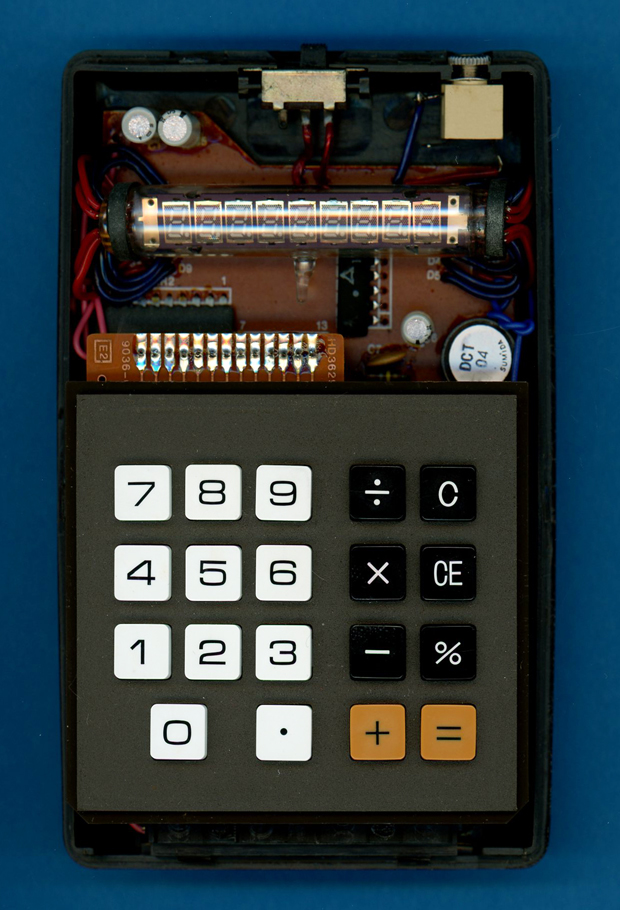

The Lloyd's Accumatic 30
(Model EH-9036, Version 260D Hitachi) calculator with the frontside of its housing removed. |

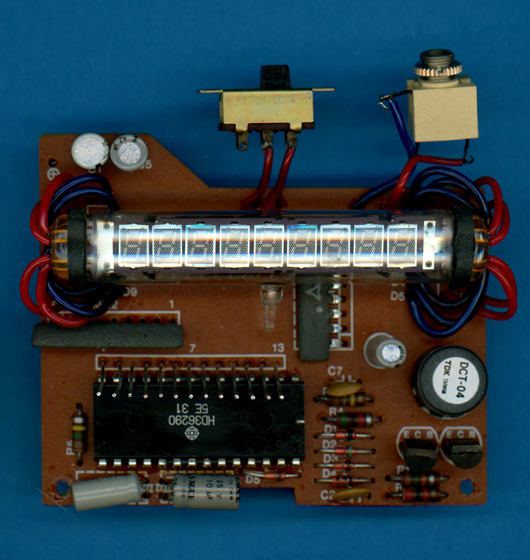

| The printed circuit board
(PCB) of the Lloyd's Accumatic 30 (Model EH-9036,
Version 260D Hitachi) is centered around a Hitachi HD36290 single-chip calculator circuit.  |

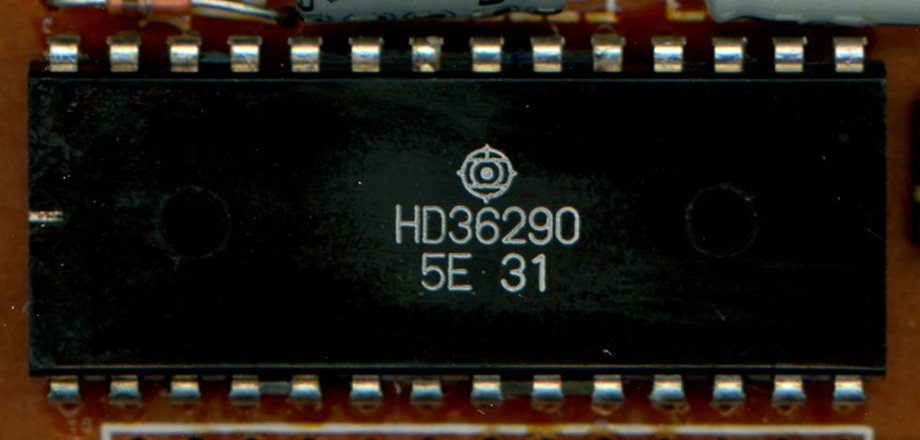

Close-up view
of the Hitachi HD36290 single-chip calculator circuit. |

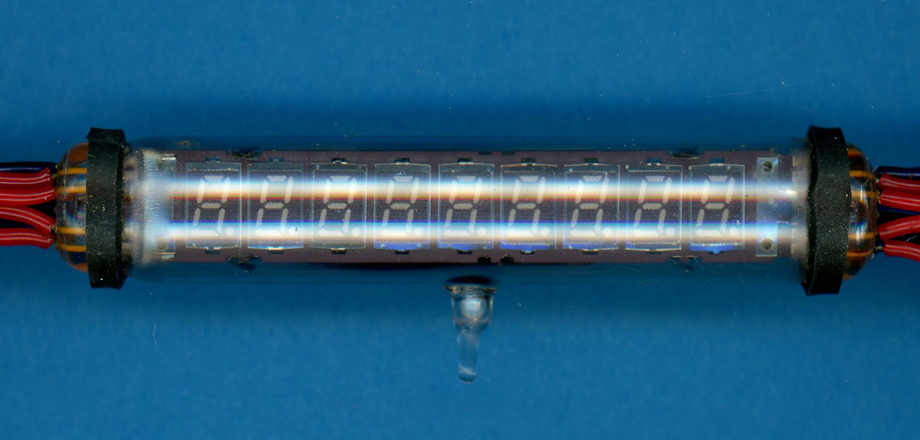

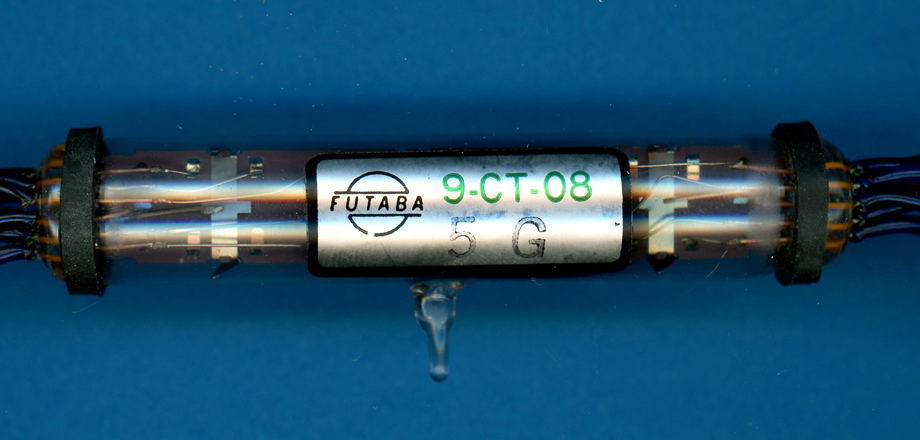

Close-up view of the
FUTABA 9-CT-08 Vacuum Fluorescent Display (VFD).  |

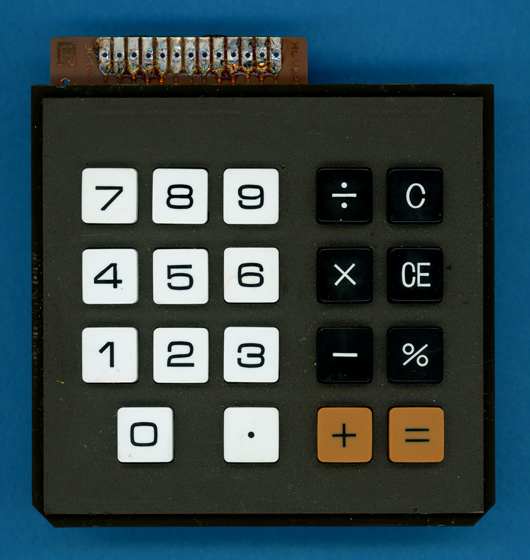

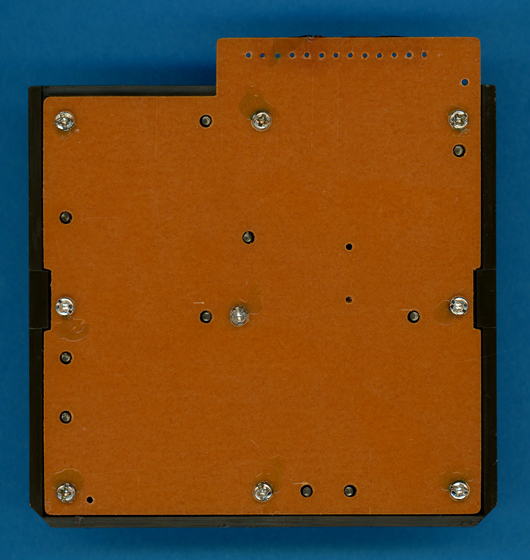

Front- and backside of the
keyboard assembly of the Lloyd's Accumatic 30
(Model EH-9036, Version 260D Hitachi) calculator.  |
