Additional Pictures
This Lloyd's Accumatic 30
(Model EH-9036, Version 260D NEC) was manufactured
in October 1975 in Taiwan. |

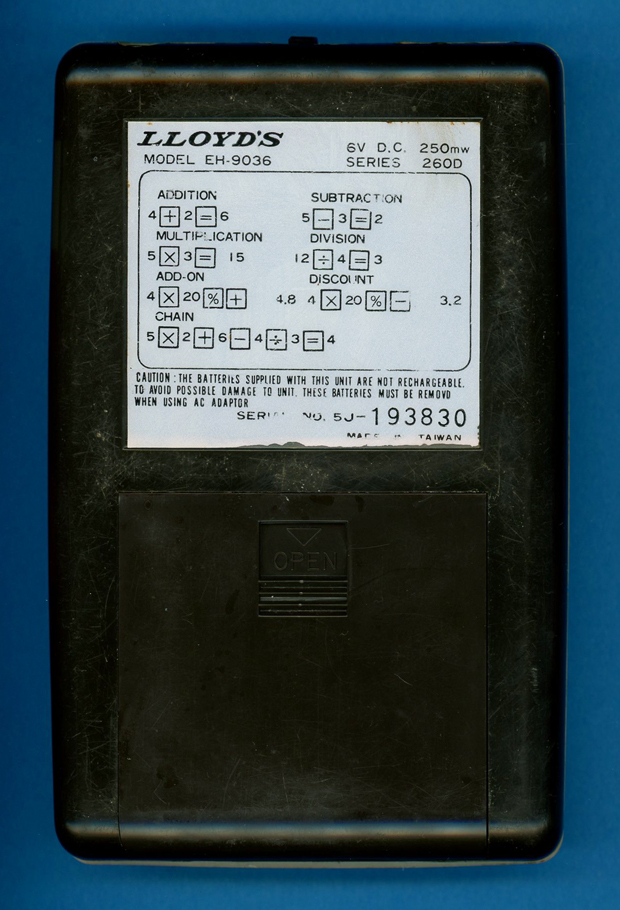

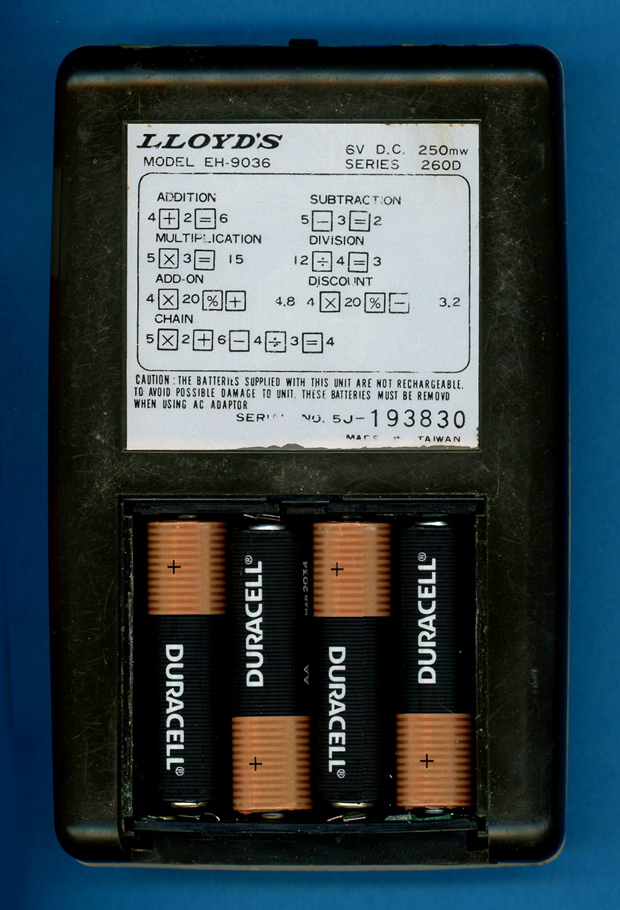

The Lloyd's Accumatic 30 is powered by four disposable 1.5 Volt batteries. |

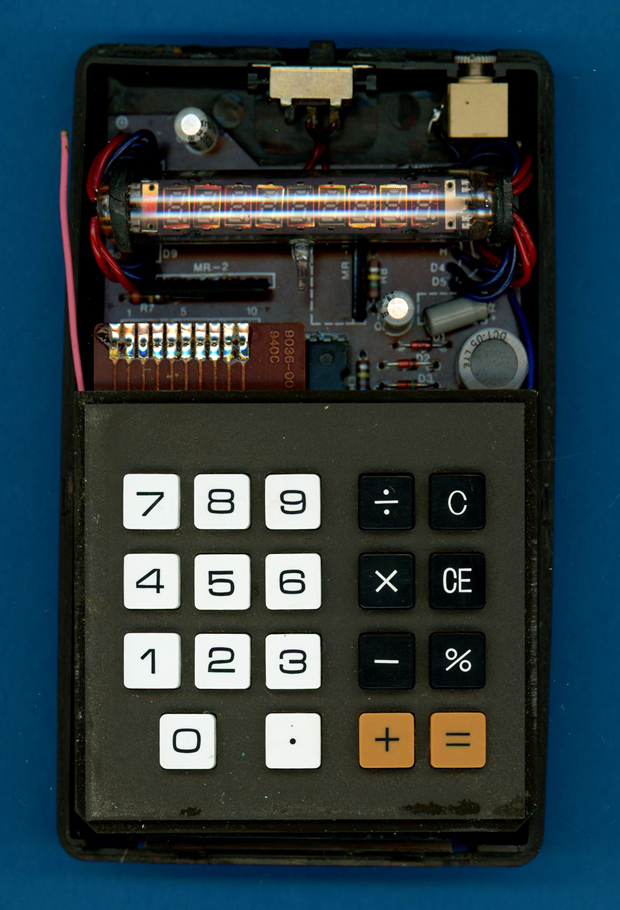

The Lloyd's Accumatic 30
(Model EH-9036, Version 260D NEC) calculator with the frontside of its housing removed. |

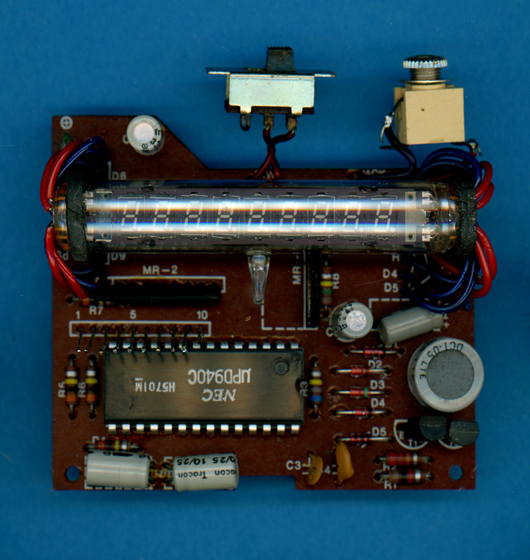

| The printed circuit board
(PCB) of the Lloyd's Accumatic 30 (Model EH-9036,
Version 260D NEC) is centered around a NEC µPD940 single-chip calculator circuit.  |

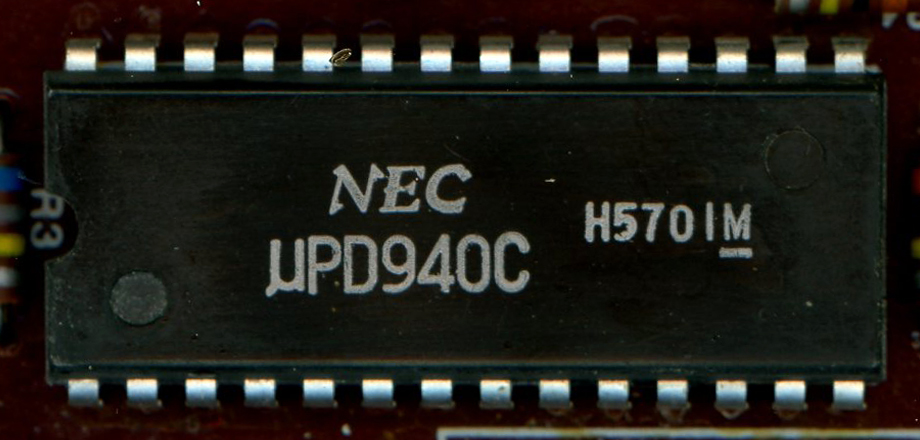

Close-up view
of the NEC µPD940 single-chip calculator circuit. |

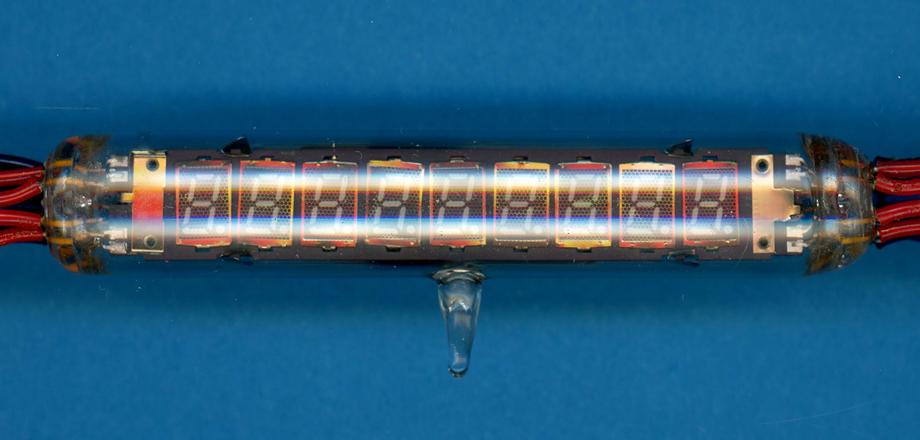

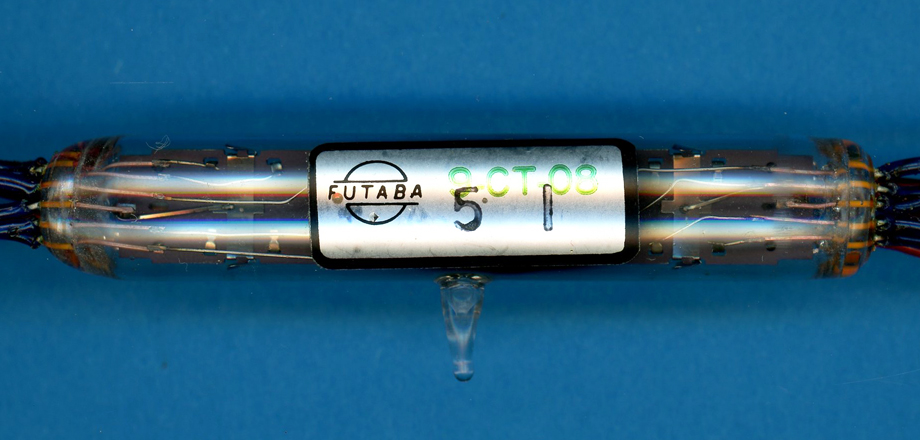

Close-up view of the
FUTABA 9-CT-08 Vacuum Fluorescent Display (VFD).  |

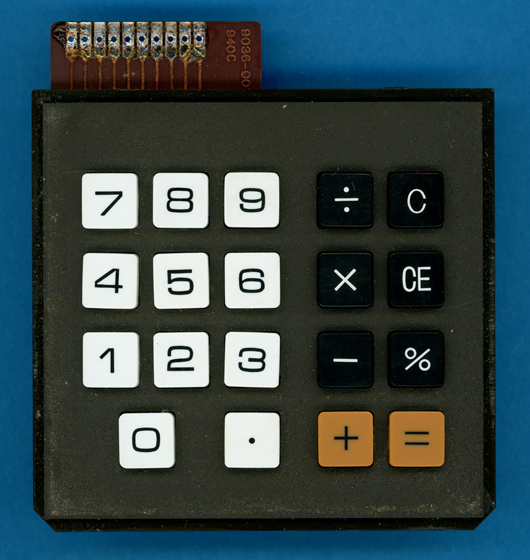

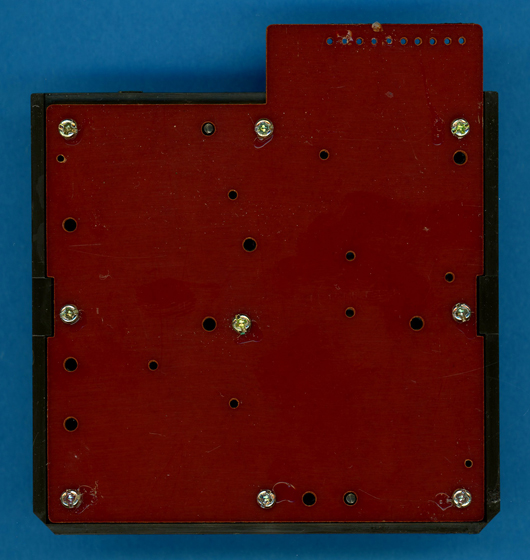

Front- and backside of the
keyboard assembly of the Lloyd's Accumatic 30
(Model EH-9036, Version 260D NEC) calculator.  |
